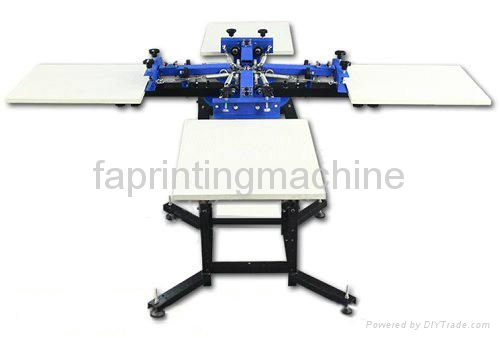

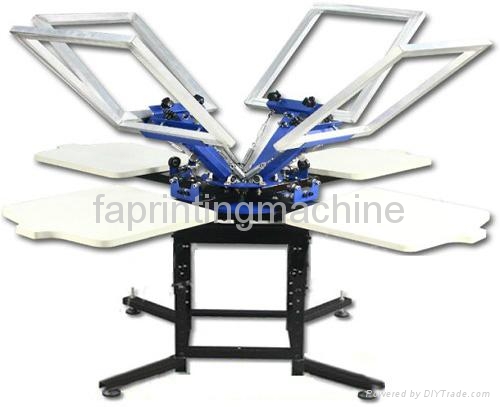

Manual Rotating Screen Printer -4 Colors 4 stations with double wheel FA-404

Manual Rotating Screen Printer -4 Colors 4 stations with double wheel FA-404
Model:FA-404
Brand:H&C
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:T shirt printer , T-shirt Silk Screen , Rotating printer
Price: US $889 / pc
Min. Order:1 pc

Product Description

Specifications

The machine can be applied for screen printing on clothing, woven, metal, paper, copybook, plastic, wood, glass, ceramic tile

T-shirt Silk Screen Printing Machines

1:Foundation Size: 920x920x590-830mm

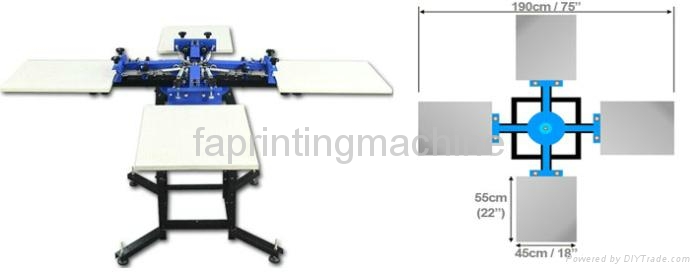

2:Machine Size: 1900x1900mm
3:Pallet Size: 550x450mm
4:Biggest Screen Sized it can apply to: 530x430mm
5:Net Weight: 163Lb (74kg)
6:Gross Weight: 181Lb (82kg)
7:Shipping Volume: 0.30 Cubic Meter
8:Carton Gross Weight Package Size
9:One 57Lb (26kg) 23"x23"x13" (59x59x31cm) T
10:wo 42Lb (19kg) 23"x16"x7.5" (59x39x19cm)
11:Three 40Lb (18kg) 24"x20"x9" (61x51x22cm)
12:Four 42Lb (19kg) 32"x23"x6.3" (81x58x16cm) U
13:p-and-down adjustable (77-100cm) foundation of our newest design can meets demands of people statures from 150-190cm.

1. This silk-screen printing press completely overcomes the disadvantages of the same price similar appearance silk-screen printing press, which can only overprint accurately in one or two stations . Before delivery all the printing head support arms have been accurately adjusted, so it can realize four color accurate registers in four stations after installation and deb ing. In other words, it can be applied into muti-color printing by multiple persons simultaneously. It's unaccomplishment for the other screen presses with the same prices.
2. Special design of spring devices in screen adjusting up and down makes it easies for the user operations according to the sizes and weight of the screens, which guarantees proper spring intensity to avoid squeegees expelling and inks splashing in higher intensity and screen unfixing because of higher weight of screen frames and squeegees in loose intensity.
3. Up-and-down adjustable (77-100cm) foundation can meets demands of people statures from 160-190cm. Height adjusting is easy but stable after adjusted. So it can guarantee the users to print in a proper height and relaxed posture under a more labor-saving and much more comfortable way.
4. Fine adjustment device is easy operated but can mainly guarantee well appressing between screen and pallet, especially for the slightly deformation screen frame or unsmooth contact surface between screen and pallet, which will bring better printing effect
5. Double fix position device is an initiate design. The upper wheels blocks make it much easier for the pallet support to enter into the fixed position; The small bottom wheel blocks guarantee the accurate positon of the pallet support arm and color registers, which brings relaxed but much more accurate printing operation for the users.
6. Composite structure. It can be dismantled and packaged into 4 cartons, with total volume of only 0.30 cubic meters and each carton weight of basically within 30kg; so it can be easily carried and moved for an adult and even in a saloon car; Besides, we have supplied video instruction for easy installations. Its convenient transportation and easy installation needn't special transportation and handling tools, which will save much shipping cost; That's also an unique and unparalleled feature during the similar machines of accurate color registers
.7. Super big foundation and peculiar auxiliary balance foot stands keep it balanced and stable even the ground is not smooth.

Main features:
1. This machine adopts full metal structure and all parts are stainless steel materials, which is in advanced electrostatic spraying, elegant appearance, convenient in cleaning and no rust
2. Excellent packaging: with its composite structure, the whole equipment is dismantled into 4 cartons but well packaged. Inside the carton, all the parts are separated packaged by high-strength cystosepiment and with splint on the top and bottom; Outer carton, it adopts five-layer corrugated carton and stretchable film; which will furthest reduce damage during transportation and especially suitable for long-distance transportation and demands of export.
3. Equipped with installation video, manual instruction, full set installing and maintenance tools and spare parts.

Payment Terms:TT and western union
Manual Rotating Screen Printer -4 Colors 4 stations with double wheel FA-404 1Manual Rotating Screen Printer -4 Colors 4 stations with double wheel FA-404 2Manual Rotating Screen Printer -4 Colors 4 stations with double wheel FA-404 3Manual Rotating Screen Printer -4 Colors 4 stations with double wheel FA-404 4
