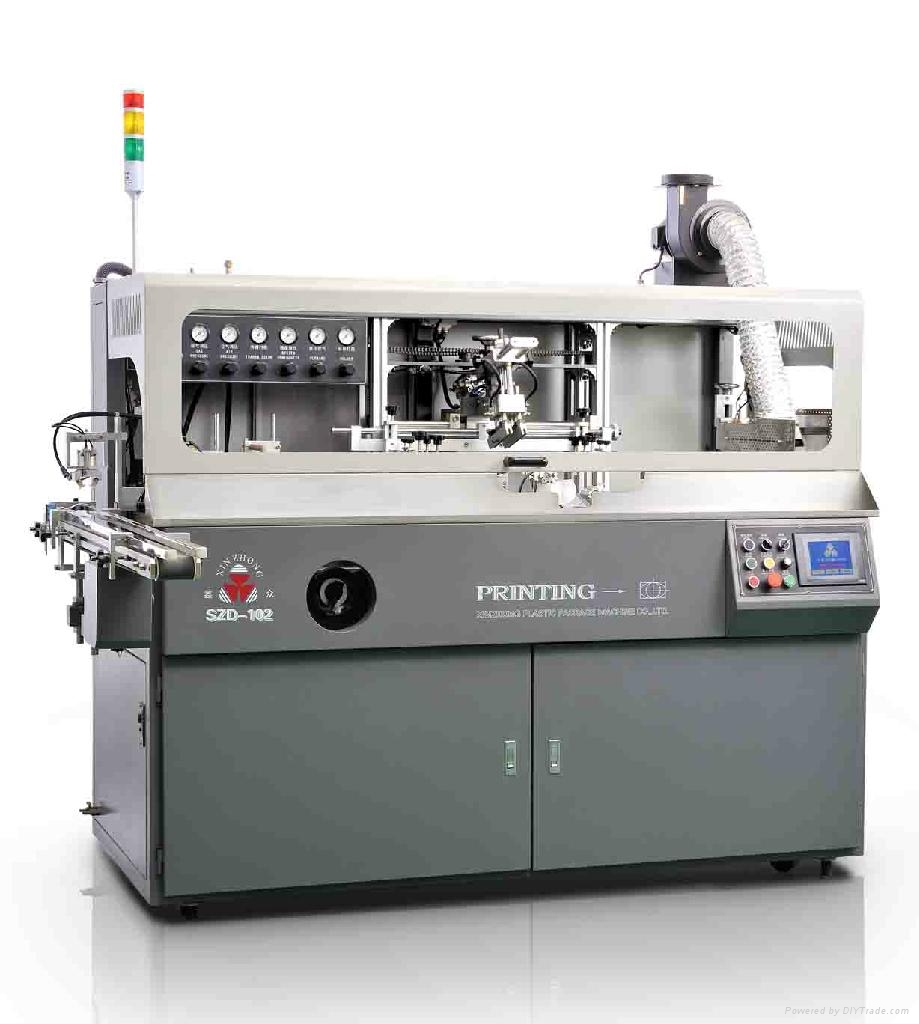

Automatic single color screen printing machine
| Model: | SZD-102-B |
|---|---|
| Brand: | XinZhong |
| Origin: | Made In China |
| Category: | Industrial Supplies / Plate Making & Printing Machine |
| Label: | Screen printer |
| Price: |
¥128000
/ pc
|
| Min. Order: | 1 pc |
Product Description
Technical data
|
Printing speed |
Round 4000pcs/hr |
Oval 5000pcs/hr |
|
Printing size |
Round Dia.20-100mm |
Length 25-300mm |
|
|
Oval Width 25-120mm |
Length 25-300mm |
|
Compressed air |
0.6MPa |
|
|
LPG |
0.15MPa |
|
|
Machine size |
Main/Aux 1908X1000X1500mm |
|
|
|
Unload conveyor 1700X500X700mm |
|
|
Unit Powe |
Voltage 380VAC3-PHASE50HZ |
|
|
UV Machine power |
5KW |
|
|
Motor Power |
1.5KW |
|
Application
The machine is single color screen printer with multi-function for printing round and oval bottles. Each unit can work as single color printer or it’s flexible to connect with several printers to become a multi-color printer. The innovative transmission system is very steady in passing the bottles, easy to shift between different types of bottles, easy to operate. It will widely accepted by the small-medium enterprises due to its high quality price ratio.
