Launch Creader CR-HD Heavy Duty Code Scanner

Launch Creader CR-HD Description:

Launch CR-HD has integrated the basic diagnostic functions of two heavy duty truck standard protocols (J1939 and J1708), applied 2.8" color LCD with beautiful interface, and equipped with 6PIN and 9PIN additional diagnostic connectors, which can provide highest quality, most efficient, and most professional diagnostic service for heavy duty trucks. From now on, the heavy duty trucks also have their own small-scale diagnostic tool.

Launch Creader CR-HD heavy duty code scanner Functions:

1. Reads and Clears fault code
2. Reads data streams
3. Launch Creader CR-HD heavy duty supports 6PIN, 9PIN, and 16PIN diagnostic connectors
4. Launch Creader CR-HD heavy duty supports multiple ECUs
5. Launch Creader CR-HD heavy duty supports J1939, and J1708 vehicle communication protocols
6. Launch Creader CR-HD heavy duty with multi-languages function (English, and French, Spanish etc.)
7. With online software upgrade function (USB2.0)

Launch Creader CR-HD heavy duty parameters:

Screen: 2.8", 262K true color, 320*240 LCD
Input voltage range: 8~36V
Operating current: typically <100mA
Typical power consumption: <1.2W

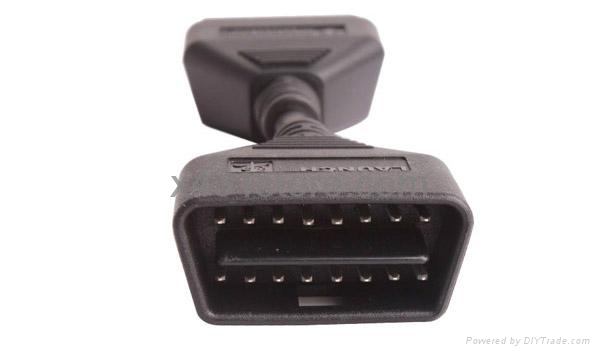

Wire connection: 6PIN, 9PIN, 16PIN diagnostic connector
Environmental temperature: 0°C~50°C
Storage temperature and humidity: -20°C~70°C@ RH 60%
External dimension: L*W*H=121*82*26mm
Single unit: <500g

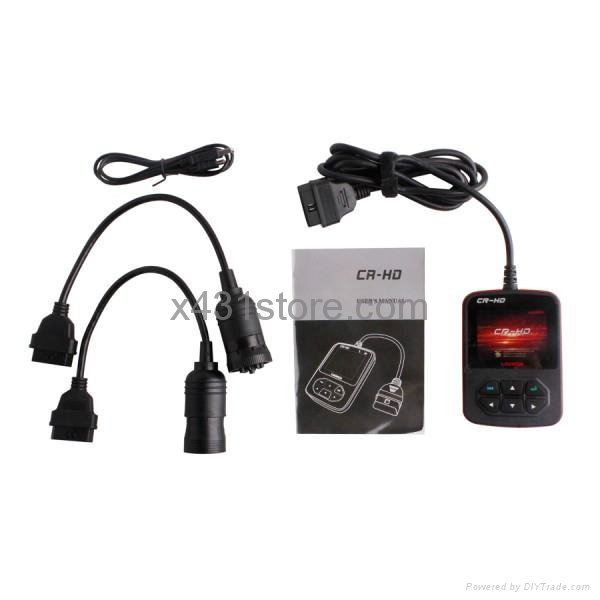

Launch Creader CR-HD heavy duty packing list:

1pc x Launch Creader CR-HD heavy duty main unit
1pc x OBD-6S Cable
1pc x OBD-9S Cable
1pc x USB Cable
1pc x User's manual
