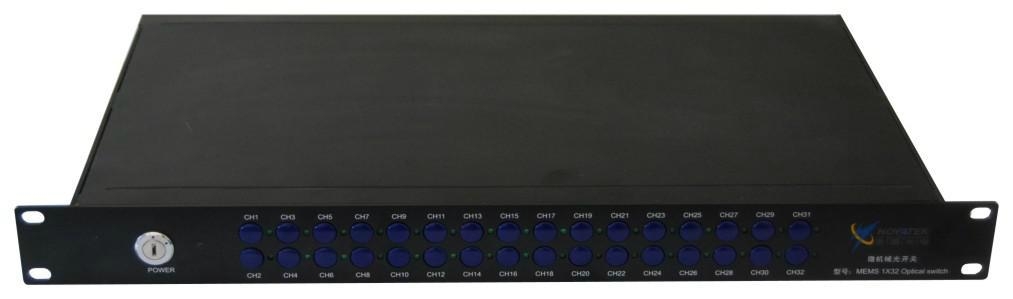

Remote Control MEMS Switching System
| Model: | HY-MEMS-XX-XX |
|---|---|
| Brand: | HOYATEK |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Other Electronic Instrument |
| Label: | mems , remote control |
| Price: |
US $3000
/ pc
|
| Min. Order: | 1 pc |
Product Description
Description:
Optical switching system can realize multi-channel switching by local keystroke or remote control. It can monitor and get communication state of network by switching, providing perfect and reliable solution. It is widely used in fiber sensing, communication, network testing, remote control field, etc.
Specification:
|
Parameter |
Unit |
Value |
|
Central wavelength |
nm |
1550/1310 |
|
Insertion loss |
dB |
≤1.2 （@1×4） |
|
Return loss |
dB |
≤-50 |
|
Switching time |
ms |
≤15 （@1×4） |
|
Connector type |
|
FC/PC，FC/APC, customizable |
|
Control method |
|
LAN，RS232，local keys |
|
Data interface |
|
LAN,RS232 |
|
Dimensions(L×W×H ) |
cm |
25.5×48.3×4.445（1U） |
|
Operating temperature |
℃ |
-5～ +70 |
|
Operating humidity |
RH（%） |
5～90 |
|
Storage temperature |
℃ |
-40～+85 |
|
Storage humidity |
RH（%） |
5～90 |
|
Power supply |
V |
AC 220V±10%, 50Hz |
Note: Dimension depends on the channel type
