Glass Separator Extractor for Liquid

Glass Separator Extractor for Liquid
Model:TOPTF-10L
Brand:TOPTION
Origin:Made In China
Category:Chemicals / Chemical Lab Supplies
Label:lab extractor , lab separator , lab liquid separator
Price: -
Min. Order:1 pc
Inquire Now

Product Description

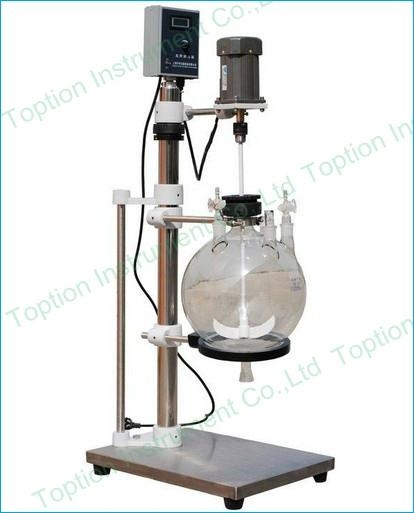

Glass liquid separator / Extractor

Description of glass liquid separator/ extractor:

Liquid separator is developed base on the present glass reactor for meeting the real needs of the majority of biopharmaceutical development companiesLiquid Separator of Toption is mainly used for liquid-liquid, or liquid-solid extractor, also for reaction experiments under environment temperature. Toption liquid separator is popular in CAS experts and professors, drug discovery users since its cost-effective price and brilliant performance.



Main features of Toption liquid separator:

1. Whole set of glass body is made of GG17 high boron silicon glass, with excellent chemical and physical performance.

2. Frequency Control, AC induction motors. Constant speed, no brush, no sparks, security and stability, can work continuously.

3. Special PTFE stirring plug with sound techniques and high corrosion-resistant value.

4. About the discharging part, we use special designed PTFE valve matched with glass flange opening. There is no dead corner in the container, and it is convenient to outlet the reaction material.

5. Perfect sealing function for the whole set equipment, stationary state the following vacuum can be up 0.095MPa

6. The whole structure is scientific,, visualization features prominent, practical novelty



Technical parameters

Basic information

Model

TOPTF-10L

TOPTF-20L

TOPTF-30L

TOPTF-50L

Reaction bottle(L)

10

20

30

50

openings

3

3

3

3

Stirring power(W)

120

120

250

250

Rotation speed(rpm)

40-720

40-720

40-720

40-720

Stirring shaft dia(mm)

¢10

¢10

¢12

¢12

Voltage(V)

220

220

220

220

Function and Configuration

frequency control

Vaccum sealing

Down discharging opening

PTFE stirring rod

Lifting way

manual

manual

manual

manual

Size (cm)

45x55x120

45x55x120

55x65x150

55x65x170

Pls note: ● means standard configuration

Payment Terms:T/T, Western Union/ Paypal, etc
