line array column system speaker

line array column system speaker
Model: T-2010
Brand:CVR
Origin:Made In China
Category:Electronics & Electricity / Magnetic Materials
Label:CVR line array , china dj equipment , sound system
Price: US $9999 / pc
Min. Order:2 pc

Product Description

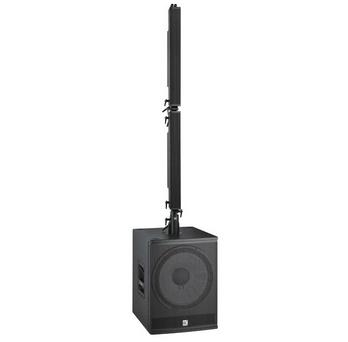

 The T-2010 is a line array column system comprised of ten 2"neodymium magnet transducers housed in an elegant and sturdy stainless steel chassis. The ten closely spaced cone drivers provide true line array characteristics-phase coherence, low distortion and focused listening in both the near field, and at a distance from the speaker.
    A variety of rigging accessories provides many linking and hanging options for the T-2010 and T-115P to be combined in vertical line array configurations to satisfy many different venue requirements during temporary events and for permanent installations. It is particularly suitable for Theatre, Club, Churches Front fill and under-balcony fill Portable and installed AV systems Stage and AV studio monitoring.
     T-115P is  a 15"subwoofer, specifically designed to reproduce deep bass frequencies with maximum efficiency,  speed and impact. The W-115P features a highly efficient power amp module and incorporate DSP. It is also ideal for reproducing the concentrated energy of contemporary music environments such as discos, clubs and outdoor  shows where extreme level of bass is required.

Model

T-2010

Type Line Array Column system
Sub-bass system(T-115P)
Frequency Response

160Hz -20kHz ± 3dB

42Hz-120Hz ± 3dB(T-115P)
Power handling 150W(RMS)300W(PEAK)
500W(RMS)1000W(PEAK)(T-115P)
Sensitivity 95dB(1W@1M)
107dB(1W@1M)(T-115P)
Max@S.P.L

116dB(PEAK/1M)

134dB(PEAK/1M)(T-115P)
LF section 10×2"(57mm)
16mm(0.6in)coil
15"(380mm) woofers(T-115P)
100mm(4in)coil
Nominal impedance 8 ohm
8 ohm(T-115P)
Output section 2-channel
Dispersion pattern 110°H×10°V
Speaker cables LF 1(+)1(-)  HF 2(+)2(-)

Input connectors 2×NL4MP speakon
Dimensions 602×69×75mm(W×H×D)
420×550×490mm(W×H×D)(T-115P)
Package dimensions 670×140×145mm/0.01cbm
490×620×560mm/0.15cbm(T-115P)
Enclosure Aluminum
Plywood(T-115P)
Netweight 3g/(T-2010)  29kg/(T-115P)
Gross weight 4.5/(T-2010)  32kg/(T-115P)
Payment Terms:TT
