QDC-3C Manual Headlight Tester & Aimer HOT Export Item

QDC-3C Manual Headlight Tester & Aimer HOT Export Item
Model:QDC-3C
Brand:Mingtrun
Origin:Made In China
Category:Transportation / Car Accessories / Auto Repair Tools
Label:Car Repair Tool , Beam setter , Manual HeadlightTest
Price: -
Min. Order:1 pc

Product Description

Model: QDC-3C

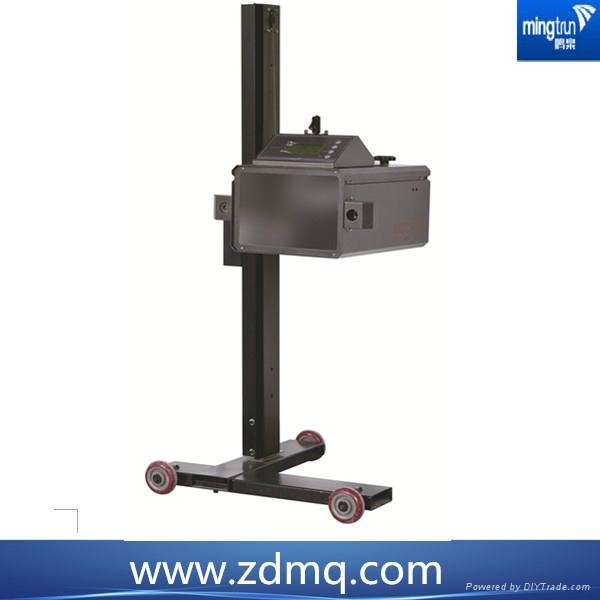

Manual Auto Vehicle Headlight Tester

Application

QDC-3C Headlight Tester is European styled,for testing the luminous intensity, and optic deviation of the headlight of automotive and motorcycle. Suitable for use in Small-sized vehicle repairing and maintenance shops and educational institution for adjusting and testing the illumination position of the headlight beams.



General Features

· European styled,for testing the luminous intensity and optic deviation of the headlight of automotive and motorcycle.

· Standard RS-232 interface and battery-operated in low power consumption mode.

· Bright and clear LCD display in Chinese and English.

· Assembly and disassembly are fast,light weight and flexible,easy operation,easy to move and maintain.

· Optional accessory is Battery Powered design.

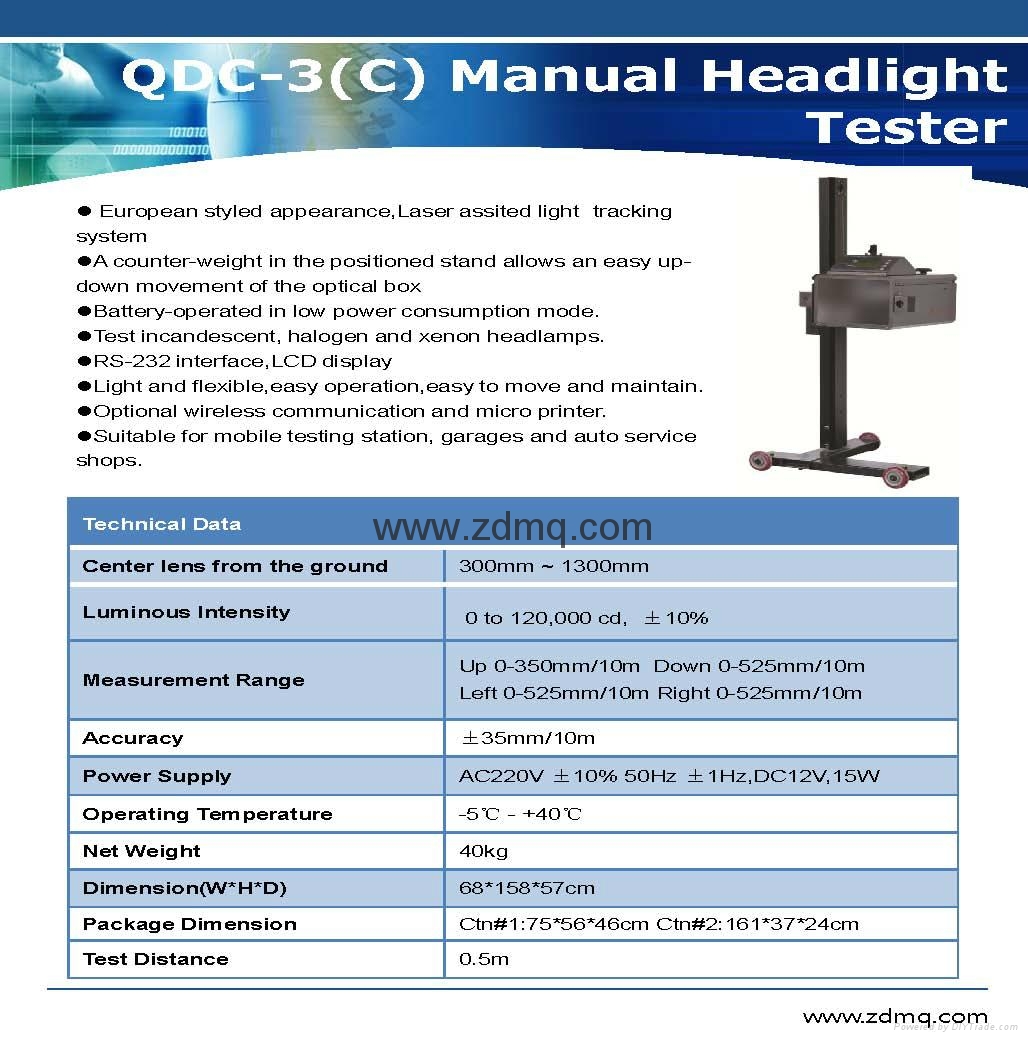

Main Technical Specifications

Measuring Range

Light Intensity: 0 ~ 120,000cd

Deviation of Optical Axis:

Up 350mm/10m  Down 525mm/10m

Left 525mm/10m Right 525mm/10m

Measurement Accuracy

Light Intensity of High Beam: ±10%

Optical Deviation: ±35mm/10m

Power Supply:

AC220V ±10% 50Hz ±1Hz or DC12V battery

Power Consumption15

Gross Weight70Kg

Outer Dimension:

680mm*570mm*1580mm

Package Dimension:

1# Carton:750mm*560mm*460mm

2# Carton:1610mm*370mm*240mm

Inspect distance:0.5m

QDC-3C Manual Headlight Tester & Aimer HOT Export Item 1QDC-3C Manual Headlight Tester & Aimer HOT Export Item 2QDC-3C Manual Headlight Tester & Aimer HOT Export Item 3
