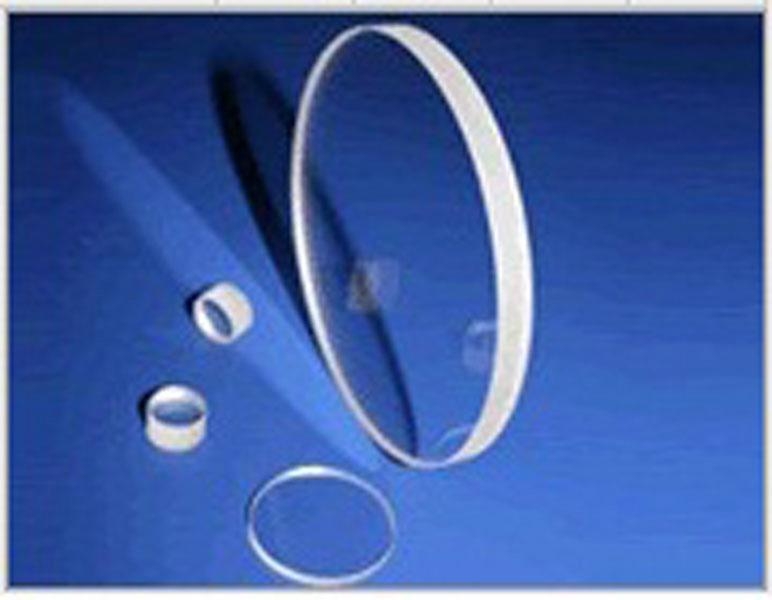

optical BK7 window with polished faces

optical  BK7 window with polished faces
Model:vy007
Brand:vy
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Optical Lens & Instrument
Label:optical window , BK7 window , dia.8.8mm window
Price: US $1 / pc
Min. Order:10 pc
Inquire Now

Product Description

Windows are optical glass with ground and polished faces that are relatively parallel.  They are used to isolate two physical environments while allowing light to pass. When selecting windows, you should consider the following: material, transmission, scattering, wave front distortion, parallelism and resistance to certain environment.
VY Optics Photoelectric Technology Co.,Ltd. offers all types of windows made from different materials. Special size and materials are also available upon request. In addition, we provide a variety of single layer or multiplayer anti-reflecting coating on optical windows.

VY Optics Photoelectric Technology Co.,Ltd. offers all types of windows made from different materials. Special size and materials are also available upon request. In addition, we provide a variety of single layer or multiplayer anti-reflecting coating on optical windows.
Specification of our optical windows as follow:
*Material: BK7 or other materials
*Length tolerance:+/-0.01
*Width tolerance:+/-0.01
*Center thickness tolerance:0.005mm
*Surface quality:80-50 to 10-5 Scratch/Dig
*Surface flatness:<lambda to lambda/20
*Parallelism<=1min -- 2sec
*Clear Apenture:80% -- 100%

Payment Terms:T/T
optical  BK7 window with polished faces 1
