Quick lock waterproof connector
| Model: | 2CT3002-W03400H |
|---|---|
| Brand: | Singatron |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Socket |
| Label: | waterproof connector , quick lock connector , waterproof power con |
| Price: |
-
|
| Min. Order: | - |
Product Description

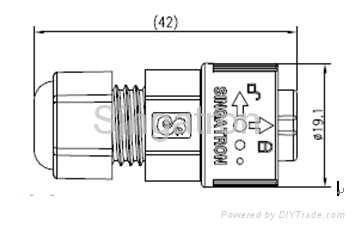

Quick Lock type waterproof connector.
3PIN， 10A
2QT3002-W03400H To 2QT3032-W03400H
Voltage Rating：300V AC/DC
Current Rating：10 AMPS.
Contact Resistance：30mOhm Max.
Insulation Resistance:100 MOhm Min. at 500VDC.
Sealing Requirements：IP67
Operating Temperature：－40℃ TO ＋105℃.
Cable Acceptance: 4.5mm~7.0mm.
Cotact Accommodation: 16~24 AWG
