cnc steel pipe profile flame and plasma cutting machine

Model:	YG-1
Brand:	CUTEK
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Cutting & Fold-bend Machine
Label:	pipe cutting machine , cnc pipe cutting , cnc pipe cutter
Price:	US $30000 / set
Min. Order:	1 set

Inquire Now

Product Description

Features

1.Professional control system for various cutting, including end cutting,beveling,grooving,intersection cutting,hole-cutting,etc.

2. Precise casting parts and strict manufacture and test procedures ensure high accuracy, reliability and durability.

3. Advanced programming and computing modules for complicated steel structure construction,compatible with IGES, DXF, SAT and STL files,can generate CNC codes from Auto CAD drawings,greatly increasing working efficiency.

4. Automatic servo driven height sensing system compensates vertical position for out-of-round pipe. In-feed and out-feed conveyors available for loading/unloading.

5. 3D operating interface for easy operation.

6.Six CNC axes(left/right, front/rear, up/down, rotation, torch-twisting,torch-lifting) perform cutting pipe profile.

Technical parameters

Cutting Pipe Diameter		50-630 mm	60-800mm	100-1000mm	200-1250mm	400-1420mm
Pipe length		1000-12000mm or as required.
Max pipe loading		2000 Kg	3500 Kg	4000 Kg	5000Kg	6000Kg
Cutting Speed		80-1800 mm/min
Cutting Thickness		Oxy-fuel:6-60mm, Plasma:upon plasma source
Plasma beveling angle		≤±45°
Flame beveling angle		≤±60°
Basic components
Pipe Chuck		3 jaws concentric chuck
Cutting Mode		Oxy-fuel,Plasma and laser
Control axes		2-6
Driving Motor		Panasonic, Mitsubishi servo motor
Gearbox		SEW gearbox
CNC Controller		Upon requirement
Plasma Power		Thermadyne, Kjellberg, Hypertherm,etc
Other Specifications
Working temperature		- 10°C -45°C
Humidity		<90%, no condensation
Surroundings		Ventilation, no big shake
Power voltage		3×380V±10% or up by user's local condition
Operation language		English or Chinese
Options
	Heating and cooling systems, Programming software integration dust extraction Auto-Pipe lock system FASTFRAME/FASTPIPE/STCAM

Application

1.Intersection cylindrical hole cutting of different directions and diameters on main pipe for vertical intersection between branch pipe and main pipe.

2.Intersection cylindrical end cutting on brand pipe for vertical intersection between branch pipe and main pipe.

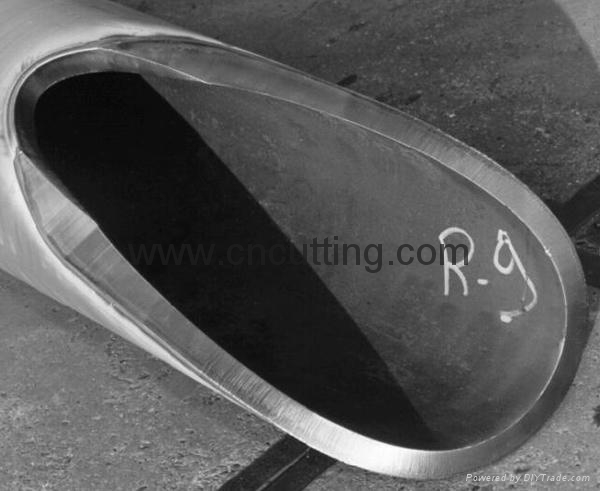

3.Bevel cutting on Pipe end

4.Welding Elbow cutting on pipe

5.Branch pipe Intersection end cutting connected with ring main pipe

6.Square hole and branch hole cutting on pipe

7.Cutting off of pipes
