High speed automatic rotary pad printer for caps
Product Name:  High speed automatic rotary pad printer for caps
• Product Number:  cap printer
R1Fis a fully automatic rotary printing system for caps printing. It is combined with auto loading, caps locking, flame treatment, printing, drying and unloading all in 1 system. Easy setting up, fast and durable running makes R1F a stable and economic solution for caps printing.

Application:

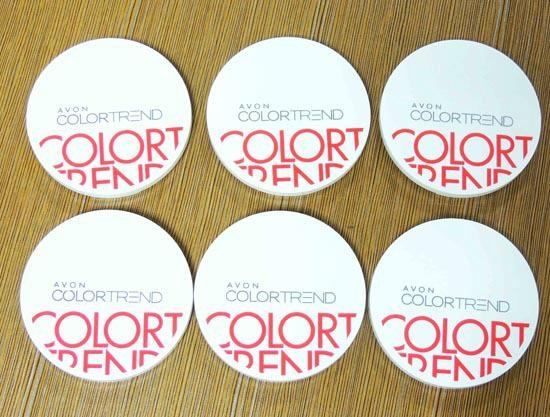

Beverages caps, wine caps, medicine caps, oil caps
Description:
Automatic loading with hopper and mechanical loading system
Auto flame treatment with electric ignition
1-2 colors printing optional
Auto anti-static dust cleaning system
Automatic heating system after printing to dry the caps (UV curing optional)
Sandex indexer from Japan
Auto unloading
Auto pad cleaning
Auto ink pump system
Well built machine house with strong aluminum profile (optional)
CE standard safety design

Tech-data:
Caps diameter: 28-55mm
Printing speed: 20000-80000pcs/hr
