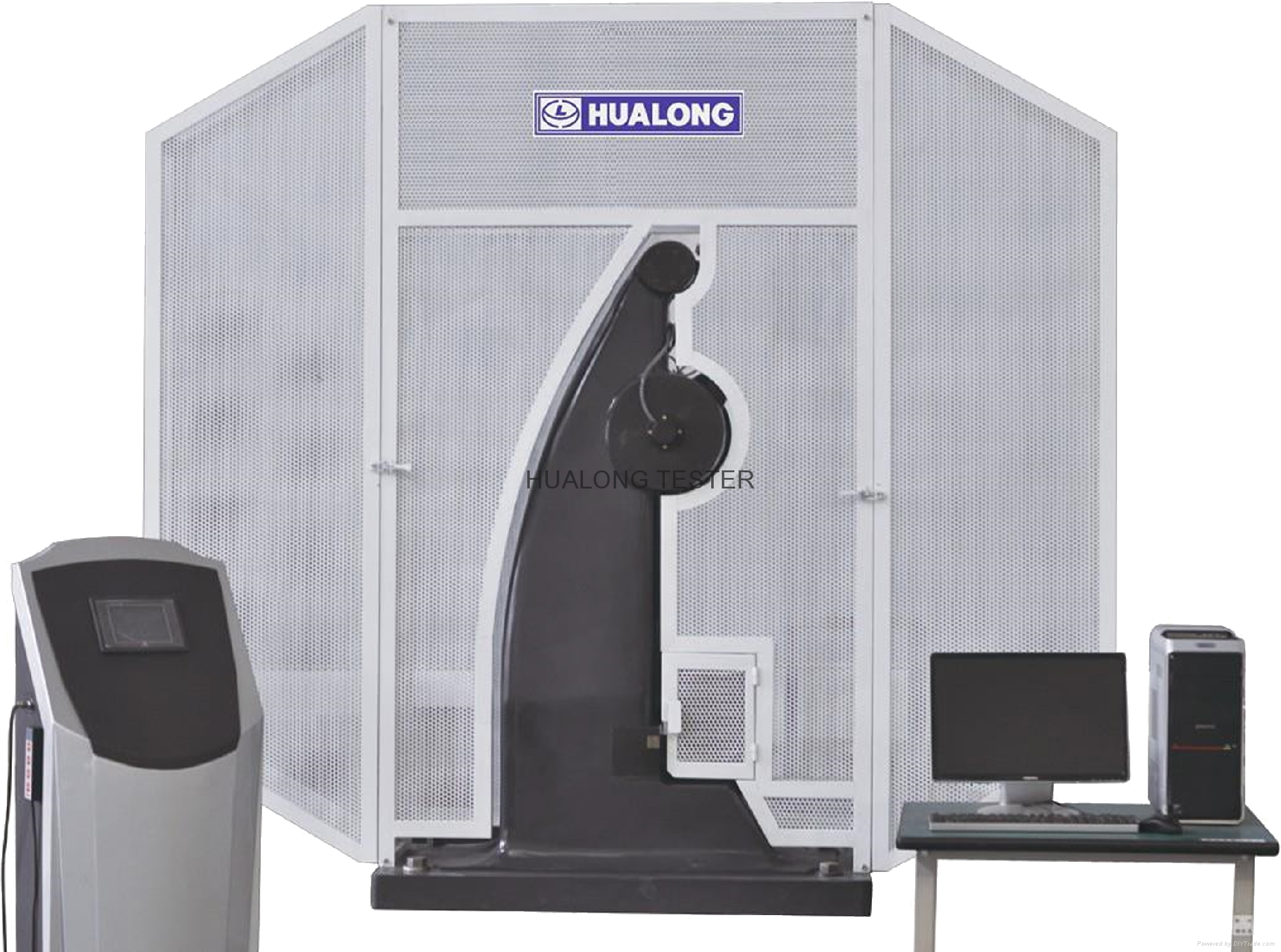

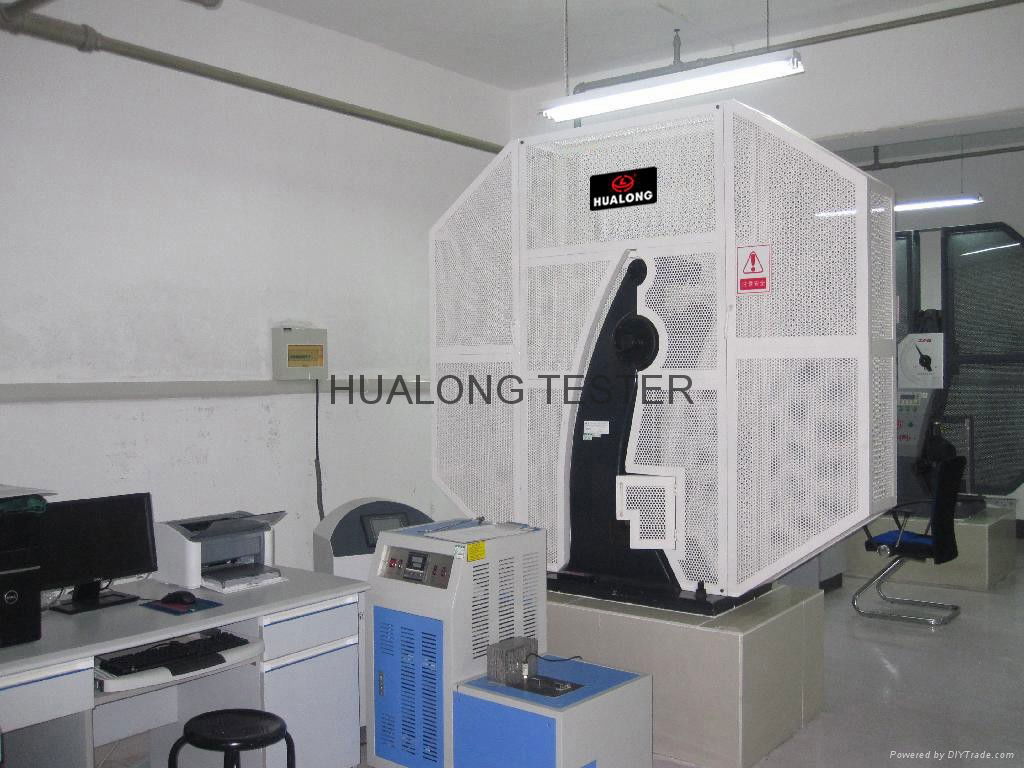

Hualong CBD-Series Pendulum impact testing machine is ideal for testing metals to Charpy standards. It commonly meets the requirements of ASTM E-23 and EN 10045-1 standards, with outstanding quality and user-friendliness.It is fully controlled by computer and equipped withautomatic specimen feeding system (manipulator), cooling system,antomatic control system.
Optional computer with software control is available to realize semi-automatic operation, in which operator only need charge specimens, other testing steps can be controlled by software.
Optional specimen feeding system is available (manipulator). Combined with computer and software, fully automatic operation can be realized.Optional cooling chamber is available to satisfy temperature-conditioned specimen test down to -100º C.
Interchangeable pendulums which is easy to be changed to satisfy impact energy of 150J, 300J, 450J, 600J, 750J.
Testing process (fully automatic): Manipulator picks up temperature-conditioned specimen from low temperature chamber, place the specimen on anvil support, automatically centering the specimen on the support (via specimen notch which is different from other company), automaticallyraise the impact arm, automatically release the hammer; The system is also designed for easy to provide data collection & analysis software and automatically generating test report.

Standard          ASTM:E23   ISO:148   Others:JIS Z2242    Others:EN 10045-2
Material            Metal
Industry            Transportation   Institute   Auto/Rail/Vessel   Test lab   Industrial supply   Aircraft industry Steel works                  TestTypes         Impact
