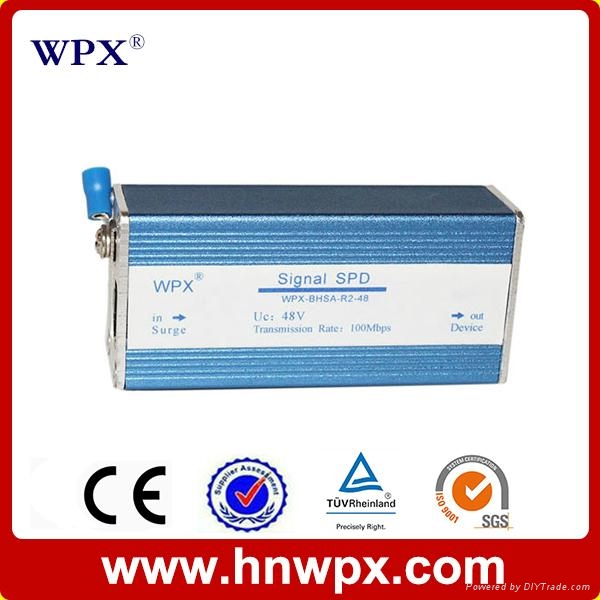

RJ45 poe surge and lightning protector

Model:	WPX-BHSA-R2-48
Brand:	WPX
Origin:	Made In China
Category:	Electronics & Electricity / Other Electrical & Electronic
Label:	lightning protector , TVSS surge , switch SPD
Price:	US $50 / pc
Min. Order:	1 pc

Product Description

Features:

1. Impulse function and accurate clamping voltage.

2. Multistage protection, low Residual voltage.

3. Convenient installation and simple maintenance.

4. Low-volume, excellent transmission performance.

5. Fast response, low insertion loss.

6. Large intake capacity and long lifetime.

Technica parameters:

Model Number	WPX-BHSA-R2-48
Material	Aluminium
Color	Blue or custom made
Voltage protection level	90V
Data transmission rate	100Mbps
Impulse withstand capacity 8/20us	2.5kA
Impulse withstand capacity 1.2/50us	5kV
Protected lines	4
Interface type	RJ45 port
Insertion loss	<=0.2dB
Install method	For mounting on 35mm DIN rail or portable for choice
Working voltage	48V
