1 ton Capacity automatic transmission wheel loader with enclosed tilt cabin, adjustable suspension seat, digital radio & MP3 player, reversing camera, top beacon

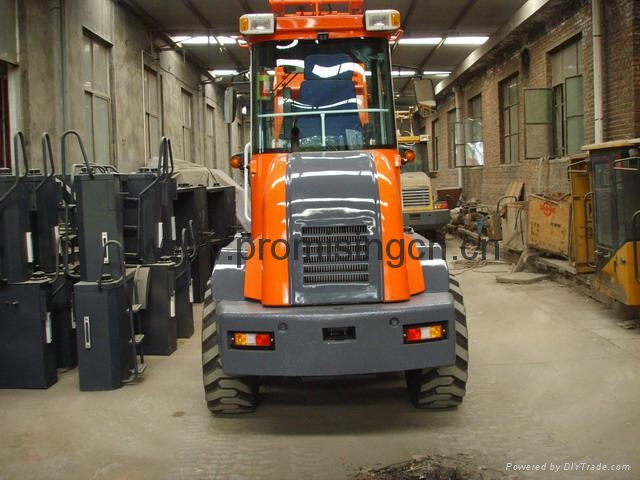

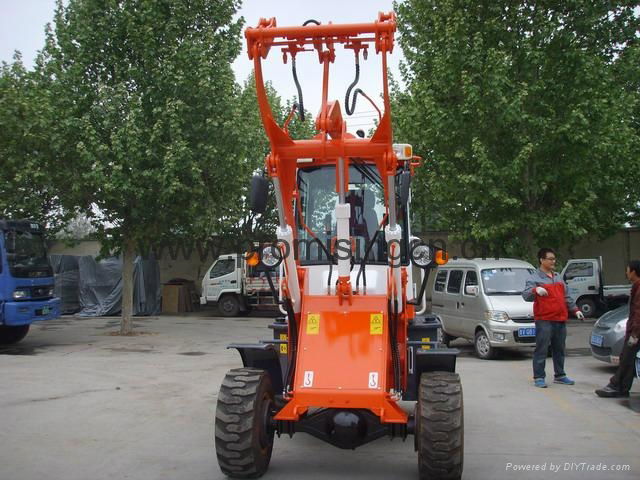

Mini Wheel Loader ZL10F

Technical Specifications

1. Rated Load: 1000kg

2. Operating Weight: 3300kg

3. Rated Bucket Capacity: 0.6CBM

4. Bucket Width: 1700mm

5. Max. Breakout Force: 26KN

6. Max. Tilt Angle of Cabin: 30deg.

7. Max. Dumping Height: 2600mm

8. Max. Dumping Reach: 850mm

9. Raising Time: <= 4.0s

10. Min. Ground Clearance: 230mm

11. Overall Dimensions (L x W x H): 4750x1730x2720mm

12. Min. Turning Radius: 4000mm

13. Engine Model: CHANGCHAI ZN490Q

14. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine

15. Rated Engine Power: 29kW

16. Rated Engine Speed: 2200rpm

17. Min. Fuel Consumption Rate: 230g/kW.h

18. Transmission Mode: YJ240 Hydraulic Torque Converter

19. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed

20. Max. Speed: 25km/h

21. Mode of Axle: ISUZU Drive Axle

22. Wheel Tread: 1400mm

23. Wheel Base: 1580mm

24. Drive Mode: 4-wheel Drive

25. Hydraulic System Working Pressure: 16Mpa

26. Hydraulic System Working Pump Type: Gear Pump

27. Service Brake: Foot Pedal Drum Brake on 4 Wheels

28. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake

29. Tyre Type Specification: 8.25-16-14PR

30. Front Tyre Pressure: 0.40Mpa

31. Rear Tyre Pressure: 0.35Mpa
