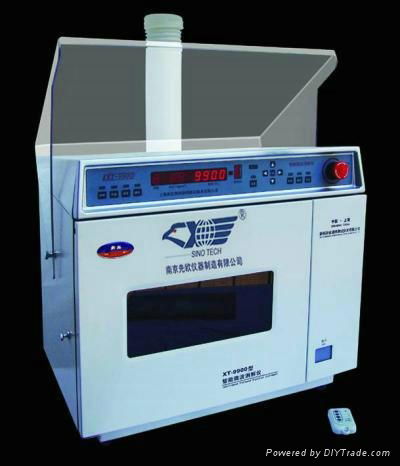

Intelligent microwave digestion system

Intelligent microwave digestion system
Model:XO-9900
Brand:XIANOU
Origin:Made In China
Category:Electronics & Electricity / Electronic Instrument / Analysis Instrument
Label:microwave digestion , dispel instrument , sample digestion
Price: US $14426 / pc
Min. Order:1 pc
Inquire Now
点击这里给我发消息

Product Description

Main technical parameter

1,Microwave power :1500W, Frequency: 2450MHz

2, the use of platinum resistance temperature control system, real-time display and control digestion tank temperature, temperature range: 0-300 ℃, monitoring accuracy of 0.1 ℃

4, optional non-contact measurement and control inductance FM or contact pressure guide cylinder pressure measurement methods, real-time display and control pressure reaction tank, control range: 0.1-5MPa (750psi / 50 atmospheres), the accuracy of 0.01MPa

3, can achieve high pressure microwave digestion, microwave extraction, microwave COD digestion, amino acids and other digestion mode, support for EPA and ASTM standards

4, 6 samples of each batch processed simultaneously, using flat microwave heating technology, multiple samples simultaneously digested better uniformity

5, all of the reaction vessel can be cooled outside the furnace chamber, the cooling speed for air-cooled and water-cooled in two ways, the utilization of the furnace chamber

6, professional uniform oven cavity (microwave cavity) designed to ensure that all samples were processed simultaneously using nanotechnology treatment furnace chamber, high temperature multi-corrosion coating to ensure long-term furnace chamber against corrosion of various acid gases and solvents.

7, furnace chamber exhaust system with high-power, all kinds of reactions for a long time under continuous ventilation, safe and easy observation of the environment



Key features

The first domestic microwave heating technology into the flat sample digestion, multiple sample digestion better uniformity

Domestic pioneered PFA treatment furnace chamber, corrosion resistance, high temperature.

Professional dropdown sliding door mechanism, effective protection for the impact of relief

LCD panel, intelligent program design, you can store a variety of sample treatment programs to support EPA standard methods

Dual CPU monitoring, intelligent PID automatic frequency control, sample digestion time and temperature to ensure accurate

Multiple active and passive safety protection measures: intelligent security alarm devices, safety relief hole, safety explosion-proof membrane

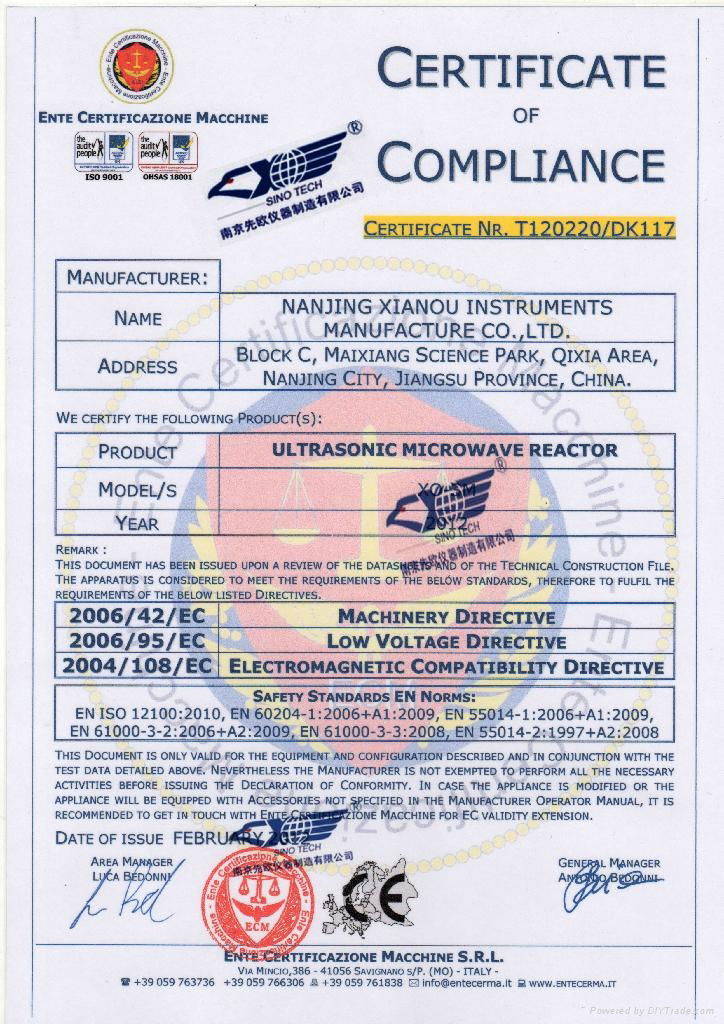

The whole instrument are made ​​using the most advanced technology and advanced materials, random electrical safety products are European CE certification, the appearance of new, microwave leakage in line with international standards.



Working specification:

1.Microwave power:1500W;Frequency:2450MHZ

2.Power source:A.C.220V±10%50HZ

3.Instrument power:1360W

4.Instrument dimension;tunnel size:20-27L;Shape size:570*510*520mm

5.Net weight:25KG



Accessories

⑴1 pc microwave digestion system

⑵Confined high pressure digestion tank outer tank

⑶Confined high pressure digestion tank tank

⑷Cooler

⑸Seal the bowl

⑹Elastomers

⑺12-hole sample dissolution cupholders

⑻Operating tools
