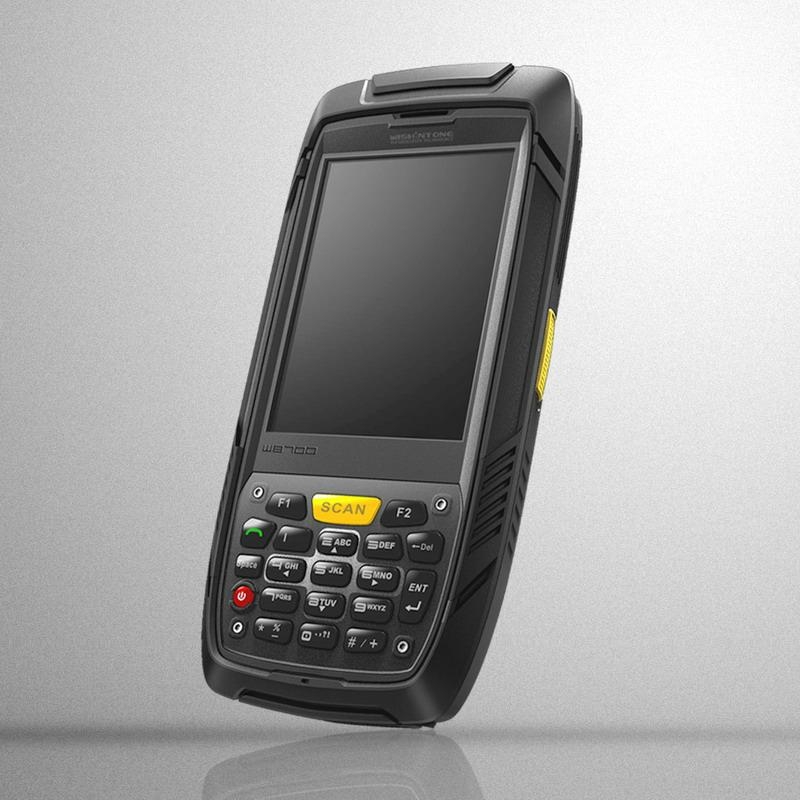

Hand held Android barcode scanner

Model:	W8700C
Brand:	Genvict
Origin:	Made In China
Category:	Computers & AV Digital / Computers / PDA
Label:	Android barcode scan , barcode scanner , android code scanner
Price:	-
Min. Order:	1 pc

Inquire Now

Product Description

hand held Android barcode scanner

Any questions, feel free to contact with the skype: rodan.liu1

INTRODUCTION & FEATURE:

Chinese first Android 4.0 operation system mobile handheld terminal carrying Samsung quad-core CPU

Completely self-owned brand, independent R&D and patented product. Elegant and refined appearance design cooperated with Red Dot Award winner company.

Novelty, special, visual impact, 480*640HD touch screen. Changeable keyboard design. Excellent human-computer interaction interface.

Innovative ergonomic compact lightweight design, brings long time comfortable operation experience

Industrial device by environmentally friendly hard-wearing materials.

IP65 r ed, 1.5m free drop tested, and applies to kinds of severe environment easily.

7 main functions highly integrated: accurate Barcode Scanner (1D/2D), stable RFID (HF/UHF), GPS location, auto-focused 5.0MP Camera, multi choice wireless communication: WIFI, Bluetooth, and 3G WCDMA, supported and optional.

Most competitive product in people management, electric power, energy and chemical industry, bank system, retails, manufacturing, fashion, express send-receive, logistics, hotel, safety, anti-counterfeiting and so on tracking management areas.

2ND GENERATION INDUSTRIAL HANDHELD BARCODE TERMINAL

SPECIFICATIONS CHART:

System
Operation System:	Android 4.0 Multi-language
CPU:	Samsung Exynos4412 Quad Core, ARM 9 processor, 1.4GHz
Memory Capacity:	1GB DDR SDRAM, 4GB ROM
Extended Memory	2G/4G/8G/16G/32G SD
LCD Screen
Size:	3.5" 480*640 HD LCD
Loudspeaker:	Built-in (Volume adjustable)
1D Barcode(standard) (2D barcode scanner optional)
Identify mode:	Laser Scan
Identify depth field:	45mm-450mm
1D Barcode type:	Code128.EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codaba,China post 25,interteaved 2 of 5,ISBN/ISSN.Code93,etc
1D Barcode type:	PDF417, QR Code, Data Matrix, Aztec, Maxiccode. LP code, Chinese-sensible code, etc
UHF RFID ( optional, can’t be built-in with 2D barcode scanner at same time)
Protocol:	ISO18000-6C/EPC C1Gen2
Frequency:	860-960MHz,
Reading Distance:	0-1.5m
HF RFID (optional, can’t be built-in with UHF RFID at same time)
Protocol:	ISO14443A/B, ISO15693
Frequency:	13.56MHz,
Reading Distance:	0-8cm
GPS Location (optional)
Cold start time:	Within 45 seconds
Location precision:	Within 10 meters
Image Acquisition(standard)
Pixel:	5.0m pixel auto-focused
Wi-Fi (standard)
Protocol:	IEEE 802.11b/g
Distance:	100m indoor/300m outdoor
Receiver Sensitivity:	-75dBm
Transmitting Power:	within 100mW
Bluetooth (standard)
Protocol:	V4.0
GPRS/GSM/CDMA/WCDMA (standard, optional in bulk order)
3G Bands:	850/900/1800/1900/2100 MHz
Interface
External port:	USB 2.0, RS232
Extend port:	1pcs SD/MMC card slot,1pcs SIM card slot,1pcs PSAM card slot
Battery parameter
Capacity:	3.7V 4000mAh li-polymer battery
Operational environment
Working Temperature:	-20 - +55°C
Storage Temperature:	-30 - +60°C
Relative Humidity:	5%-95% RH no condensing
Protection Grade:	IP65
Drop Test:	1.5 meter free fall into concrete
Physical parameter
Size	160mm77mm30mm
Weight	400-450g
