| 960P POE NVR kit SV-4901P |

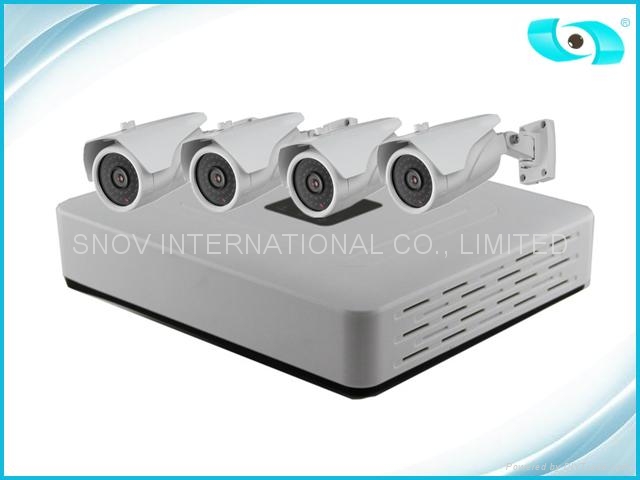

| Mini 4CH 960P NVR Kit SV-4901P |
- 4pcs SV-IP890K 960P IP cameras 1pc Smart NVR
- 4pcs 960P IP cameras with POE
- Smart NVR with 5pcs Ethernet interface, 4pcs interfaces to support POE and video input
- Support 1pc MAX 4TB HDD, 30days record with full load working
- With 4pcs 20M internet cables, 1pc mouse to NVR
- Supporting VGA/HDMI display, external connection HD display
- 36pcs black IR LEDs Waterproof bullet IP camera with Real IP67
- No need wiring, play & plug, wide used in family and shop
- 4pcs WIfi IP cameras, 1pc NVR, 1pc NVR power supply, 1pc remote controller, 1pc nvr mouse, 4pcs camera power supply
|
Download： 960P POE NVR kit SV-4901P |
|
|
 |
- Portable NVR KIT (White and Grey Color Optional)
- Embeded system, real Hard Compression;Watchdog Timer design, double anti-thunder design in Internet and Power supply Ports
- With 1.0MP IR waterproof bullet IP camera, 3.6MM lens, 36pcs Black IR leds, constant current and voltage IR leds board
- IR range can up to 30M, hidden cable 3-Axis bracket can up to real IP67 waterproof level;
- Illumination：Color 0.1 Lux@F1.2, B/W 0.01 Lux@F1.2，IR leds ON 0Lux@F1.2.
- With Main and sub code stream, main code stream local-storage to make sure HD image, sub code stream network real transfer to solve bandwidty question.
- Support Motion detection, linked photograph, Record,Trigger email alarm, FTP storage etc. informing modes.
- Support 1pc MAX 4TB HDD, full load record up to 30days.
- Support VGA and HDMI Full HD output simultaneously.
- Professional CMS style, simple Operation mode, easily operate.
- Multiple languages (English, Chinese etc.).
- Cloud service can up to P2P, easy and convenient use.
- Support Android、IPHONE、IPAD remote real monitor.
- Support multiple browser (IE、Chrome、Firefox、Safari).
- Play & plug, IPC support POE, IEEE802.3af /atadaptive(optional).
- NVR with 5pcs ethernet interface, 4pcs interfaces to support POE and video input.
- Perfect assort (WEB、CMS).
|
Model
|
Kit model
|
SV-4701W
|
|
Style
|
Feature
|
720P WIFI NVR kit
|
|
IPC specification:
|
|
System
|
System source
|
Embedded LINUX OS HI3518
|
|
Sensor
|
Sensor
|
1.0Mega Pixel, 1/4" progressive scanning CMOS
|
|
Illumination
|
Color:0.1 Lux@F1.2, B/W:0 Lux@F1.2(IR ON) 100W
|
|
Lens
|
3.6mm mega fixed lens
|
|
Others
|
Video compression
|
H.264 High profile
|
|
Video code rate
|
1Mbps~6Mbps
|
|
Resolution
|
Main code stream:1280*720, 704*576; Sub code stream:704*576, 352*288
|
|
Standard
|
Waterproof level
|
IP67
|
|
IR distance
|
25-30M
|
|
Power supply mode
|
NVR POE
|
|
Communication mode
|
P2P
|
|
Dimension
|
191× 76 × 71 mm (color: white & Grey optional)
|
|
NVR specification:
|
|
System
|
System source
|
Embedded LINUX OS HI3515
|
|
System source
|
Simultaneously multi-record/playback/users/back-up
|
|
Interface
|
OS
|
16bit real color imaging OS menu, supporting mouse
|
|
Image display
|
1/4 picture
|
|
Video
|
Input
|
4CH 720P(1280*720)
|
|
playback
|
960P/720P
|
|
monitor
|
VGA:HD; HDMI:HD
|
|
Motion detection
|
Support
|
|
Video playback
|
Recorde mode
|
Manual/dynamic detection/timing
|
|
Local playback
|
1CH playback
|
|
Record query
|
Timing/Calendar/Event/Channel query
|
|
Storge back-up
|
Record storage
|
HDD/network
|
|
Back-up mode
|
Network back-up/USB mobile hard disk
|
|
Standard
|
Video output
|
1pc VGA, 1 pc HDMI
1 pc BNC, 1 pc VGA
|
|
Network interface
|
5pcs RJ45, 10M/100M self-adaption ethernet port, 4pcs supporting POE
|
|
USB interface
|
2pcs USB interface
|
|
HDD interface
|
1pc SATA interface (MAX 4TB)
|
|
Power supply
|
DC15V/5A
|
|
Dimension
|
Black:215(L)x215(W)x45(H)mm; White:235(L)*205(W)*45(H)mm
|
|
|
