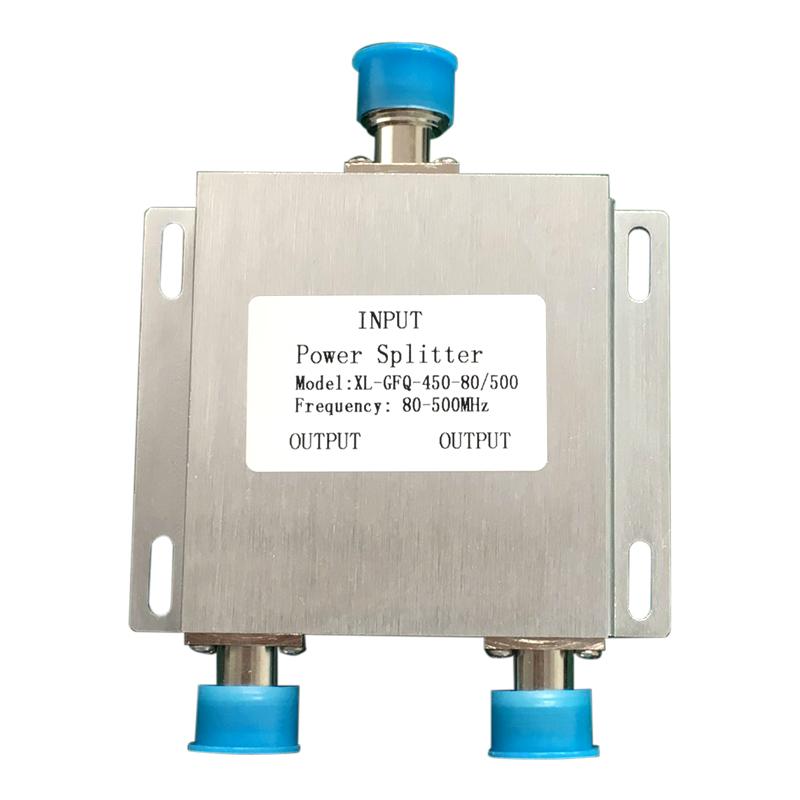

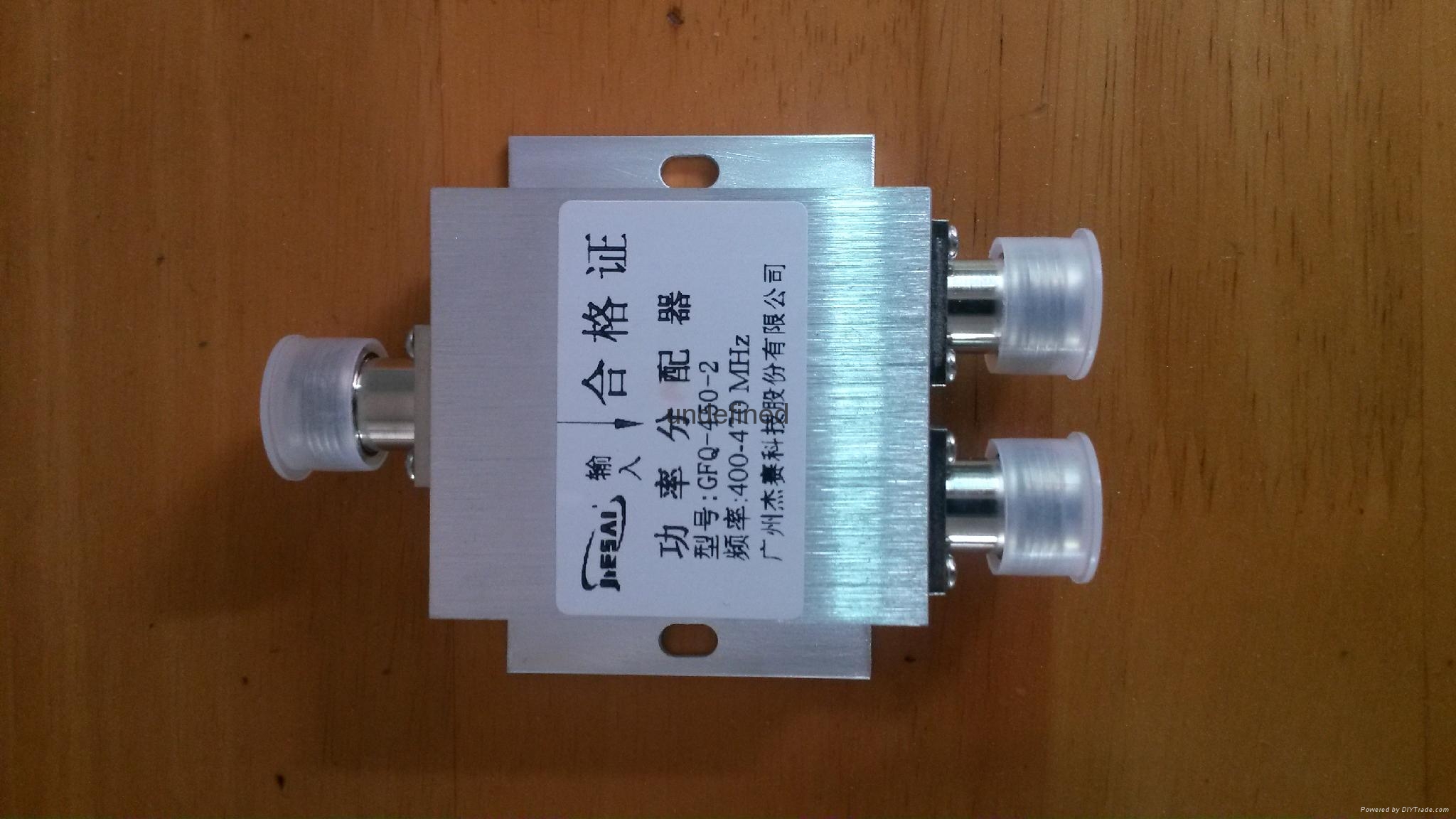

2 way power splitter （300Mhz-500Mhz)
| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Telecommunication & Broadcasting / Other Communication Equipment |
| Label: | Power splitter , power divider , 700Mhz-2700Mhz |
| Price: |
US $10
/ pc
|
| Min. Order: | 10 pc |
Product Description
Power Splitter
|
Product N umber |
GFQ-100-2 |
GFQ-100-3 |
GFQ-100-4 |
|
Electrical Specifications |
|||
|
Frequency Range |
134~174MHz |
134~174MHz |
134~174MHz |
|
VSWR |
＜1.3 |
＜1.3 |
＜1.3 |
|
Operation Model |
Two way Halve |
Three way Trisect |
Four way Quartering |
|
Insertion Loss |
＜3.4dB |
＜5.3dB |
＜6.6dB |
|
Passband Ripple |
＜0.3dB |
＜0.4dB |
＜0.53dB |
|
Isolation |
＞20dB |
＞20dB |
＞20dB |
|
Maximum Input Power |
50W |
50W |
50W |
|
Normal Impedance |
50Ώ |
50Ώ |
50Ώ |
|
Connector |
N-F |
N-F |
N-F |
|
Operating Temperature |
-50℃~+70℃ |
-50℃~+70℃ |
-50℃~+70℃ |
|
Operating Humidity |
5%~95% |
5%~95% |
5%~95% |
|
Mechanical Specificatios |
|||
|
Dimensions(L×W×H) |
96mm×74mm×23mm |
132mm×758mm×25mm |
142mm×132mm×31mm |
|
Weight |
200g |
350g |
440g |
 |
|||
 |
|||
| Payment Terms: | T/T PAYPAL |
|---|---|
