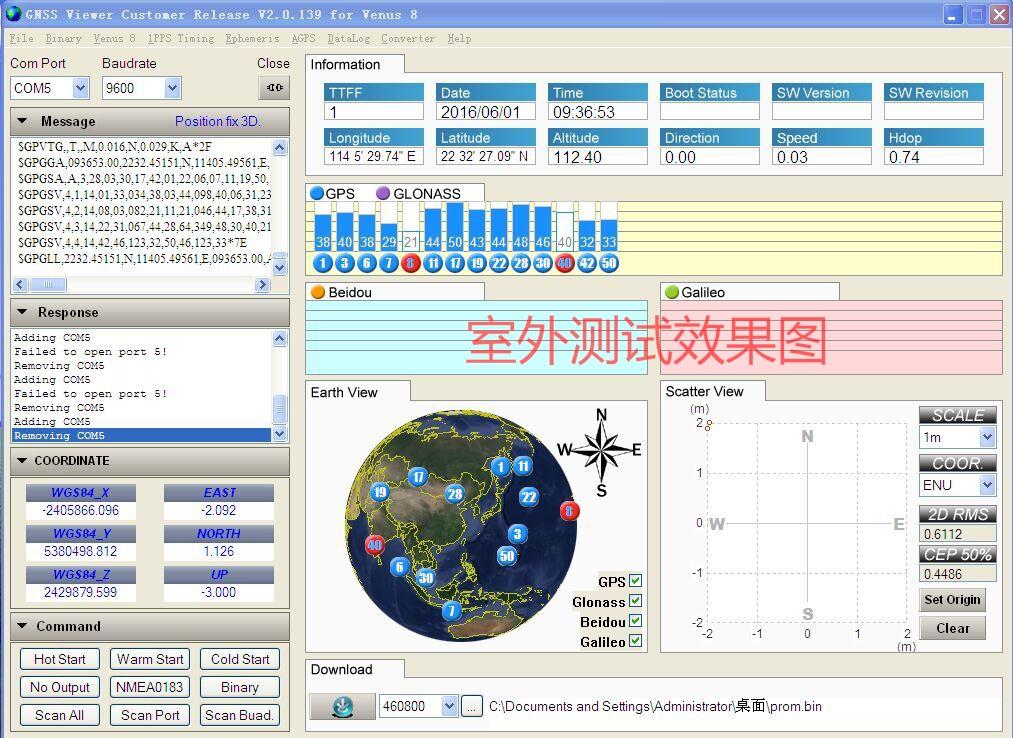

GPS test software on-board navigation positioning terminal module
Product Description
One hundred star UBLOX7020 chip GPS module
10 * * 2 mm size 9
BU - 1613.
Module tracking sensitivity locating expanding coverage, like urban canyons of GPS and thick leaves environment it is impossible to set in place before, but now is completely can realize positioning. The appearance of small and low power consumption, make the module is easy to be integrated into the portable devices, mainly used in car, car navigation, navigation equipment, vehicle traveling data recorder, etc.
Performance parameters of the instructions
parameter
Technical indicators
Receive frequency
L1 band C/A code 50 channels
SBAS: WAAS and EGNOS, MSAS, GAGAN
Receiving sensitivity
tracking
capture
- 160 DBM
- 160 DBM
Accurate positioning accuracy
location
speed
Second pulse (PPS)
5 m CEP without SA
0.1 m/s without SA
60 ns RMS
Start the positioning time
Cold start positioning
Warm start positioning
Warm start positioning
To capture positioning
29 s
28 s
1 s
Less than 1 second
Working current
Track the current
Capture the current
The sleep/sleep current
35 ma @ 3 v Vcc
40 ma
TBD
Data update
1 hz
Dynamic performance
High ceiling
Speed limit
The acceleration limit
Max 18000 m
Max 515 m/s
Less than 4 g
