3.2 system details
1 main cabinet

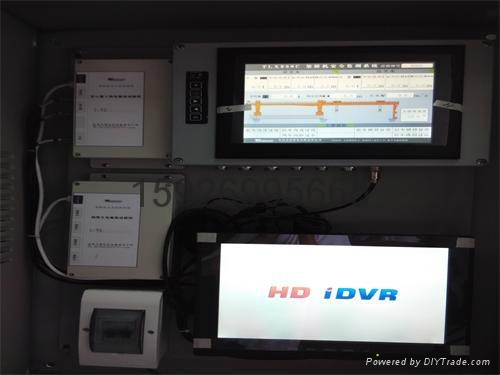

The internal integration of host, host, display, hard disk recorders, video monitor
2 host
The working voltage: 1136VDC system error: less than 5%
The display error: less than 5% of control error: less than 5%
3 display
The resolution: 1024 * 768
The color (65536 colors): 65K
The backlight brightness: 300nit
4 crane height sensor, displacement sensor, and the vertical and horizontal displacement sensor
The transmission ratio: 1:13 ~ 960
The repetitive positioning accuracy: angular error memory cam is not greater than 0.005rad (0.3 degrees)
5 wind speed sensor
The start wind speed is 0.4-0.8m/s
The resolution of 0.1m/s
6 hanging weight sensor
The accuracy level: 0.05
The sensitivity: 1 + 0.005mV/V
Input impedance: 750 + 20.
The output impedance: 702 + 2.
The insulation resistance is not less than 5000M.
The safety of overload: 150%F.S.
7 horizontal and supporting leg inclination angle sensor
The aseismatic performance of >3500g
The resolution of 0.05 degrees
8 video surveillance camera
The imaging device: 1/4 inch SHARP SuperHAD
The resolution: 500 * 582 (vertical (horizontal)
The lens parameters: optional 3.6mm and 6mm lenses
The minimum illumination: F1.2, 0Lux
The horizontal resolution: 420TVL
9 hard disk recorder
The video input: 4 road, BNC interface, 1.0Vp-p, 75.
The video output: 1 road, BNC interface, 1.0Vp-p, 75 ohm, 1 VGA output, 1 HDMI output
The audio input: 1 RCA audio input
The audio output: 1 RCA audio output
10 video monitor display
The type of color: color
The screen size: 15 inches
The screen type: widescreen 16:9 (Widescreen)
The backlight type: LED
The response time: 5ms
The visual angle: 170 degrees /160
The display color: 16.7M
