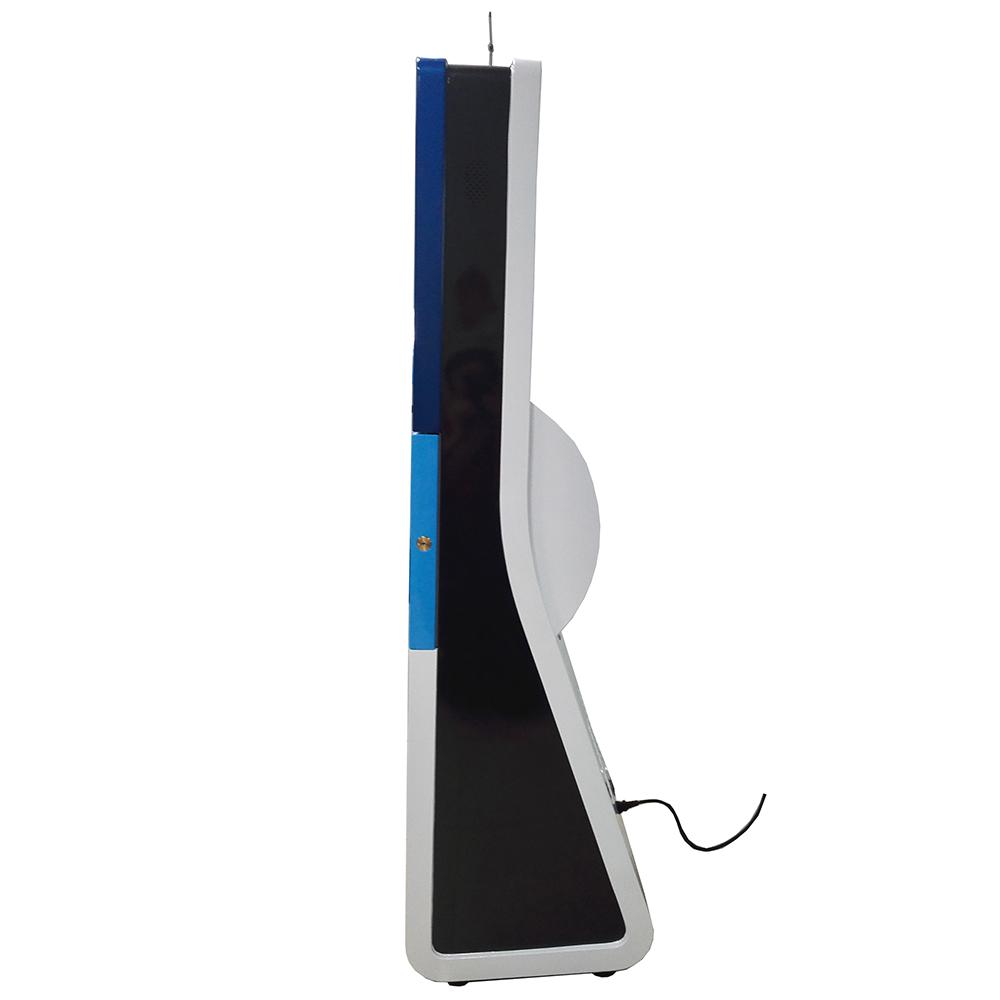

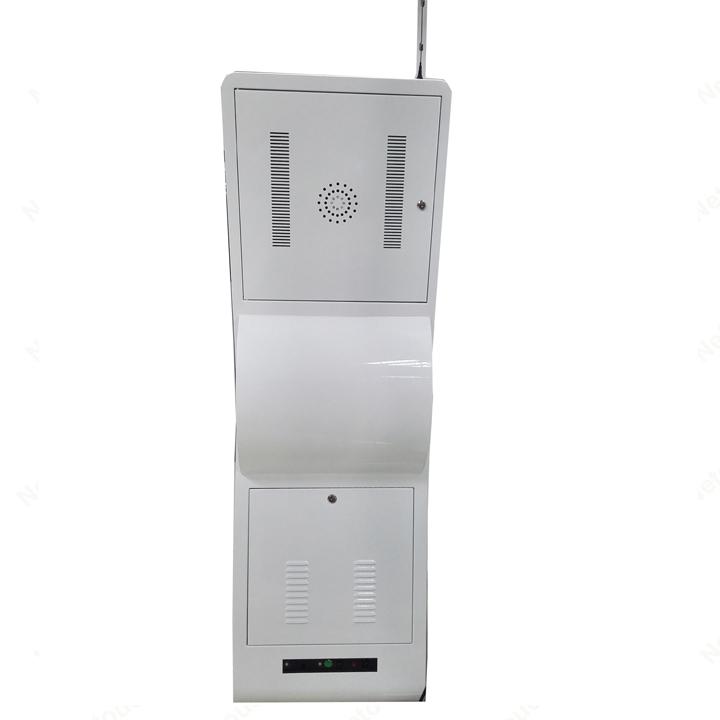

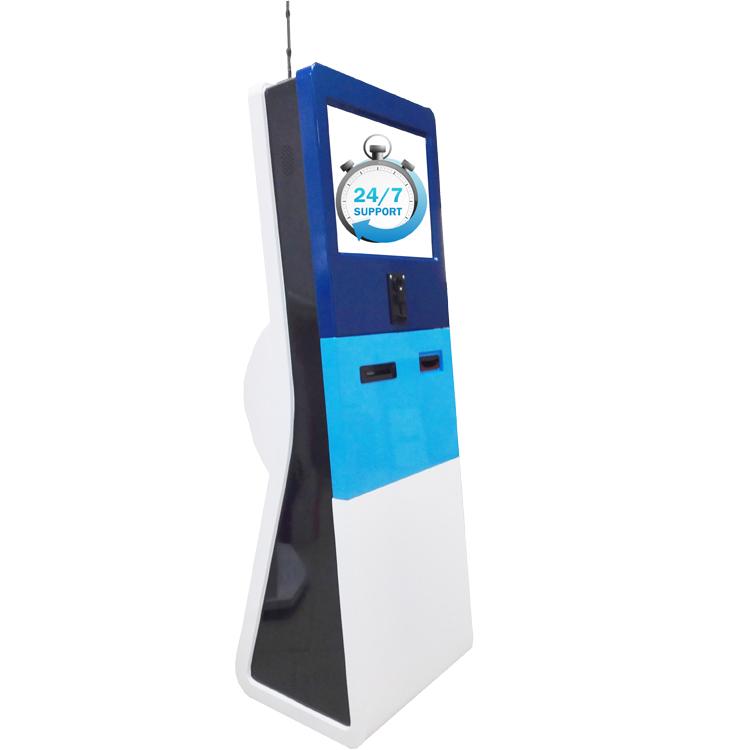

Multifunction touch self service kiosk

Basic Configurations:

 Touch screen+LCD monitor+pc+enclosure+credit card reader+NFC card reader+fingerprint reader

1.Powerful Regular PC or Industrial PC

Industrial mainboard with Intel J1900 CPU

120gb SSD, 4GB Ram, cooling fans, video card, 10/100m net card, power supply,

RJ 45 interface, USB&RS232 port

2.19 inch or above led monitor

  Monitor: 100% new Grade A+ LED monitor

  Resolution: 1280x1024

  Contrast: 1000:1

  Ratio: 4:3

  Brightness: 300cd/m2

  Response time: 10ms

3·19 inch or above Infrared touch screen

   Touch panel: Infrared touch panel

   Resolution: 4096x4096

   Hardness: Mohs'7

   Response time: 8 ms

   Lifelong: more than 500, 000,000 cycle times

   Deviation: ±1mm

   Transmittance: >95%(Infrared touch panel)

   Anti dust, water proof...

4. Enclosure(kiosk case):

   1.2mm~1.5mm cold rolled steel, color is optional(free). 2mm thickness available too

Export packaing: foam, carton, wooden case

Certification: CE&FCC&RoHS

Warranty: 1 year

MOQ: 1 piece

Transport: By ocean shipping, air transport, DHL,UPS..etc

Payment: T/T, L/C, Western Union
