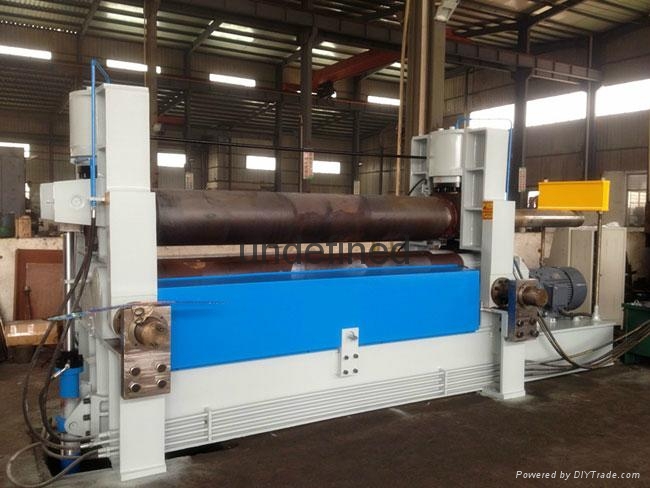

3-roller Hydraulic Plate rolling machine
The device is hydraulic 3-roller rolling machine, it used to bend plate into cylinder-shape, arc-shape in normal temperature. The up roller of the device can lift up and down, level left and right. Level move up roller to pre-bend the plate, let the up roller in asymmetrical location relative two bottom rollers. Up roller’s lift movement adopts hydraulic driven, and level move adopts mechanical driven.
Model Unit W11S-16×2500
Pressure under up-roller T 130
The yielding limit of plate Mpa σs ≤245
The max width of plate mm 2500
The length of rollers mm 2600
The max pre-bend thickness mm 12
The max bend thickness mm 16
Min diameter when full load mm Φmin500
The straight edges mm ≤2-2.5×plate thickness
The diameter of up-roller mm Φ300
The diameter of down-roller mm Φ165
The distance of two bottom rollers 270mm
The diameter of support rollers 1group×4 Rolling speed m/min 5
Main motor power KW 11
Hydraulic motor power
KW 5.5 Move motor power
KW 2.2 Electric system
V/HZ 380/50
