Heat transfer printing machine principle:

Heat transfer printing is international in recent years gradually rise of a new technology of printing and dyeing. First, with advanced printing technology to special dyeing and printing (water or oil), put all the need of design and color design is printed on special paper, made with all kinds of fancy transfer printing paper, and then on the transfer printing machine, will transfer printing paper is patterned on one side and closed after the printed fabric by heat and pressure, the use of color paper dye sublimation, moved to the printed fabric, on the printed fabric needed for the formation of a variety of patterns.

Our factory introduce Italy and according to the market demand for continuous improvement, development of ZY series grinds only, transfer printing machine, the machine form a complete set of automatic edge into the apparatus and automatic inspection machine, to make the whole process of printing cloth is more convenient

Main features:

1. The main frame of the whole machine type, strong is not easy to deformation, rotational, fabric guide mechanical design clever, easy to operate. Master the main parts of the machine roller with internal circulation within the system. Through the electric heating, heat conduction oil, make the roller surface temperature control at + / - 1 ℃ or so.

2. The PID automatic temperature controller, automatic regulating thermal current control precision is high.

3. Manual blanket with device, back up when cooling off blanket belt, prolong the service life of blanket strips.

4. The machine is equipped with the edge of paper and paper device, reduce the pollution of the blanket, reduce the washing time.

5. After the transfer of the finished product processing, free pattern colors should be bright and soft light, keep the same color quality over a long period of time.

6. Printing speed control with frequency conversion control.

7. The temperature range: 220-250 ℃

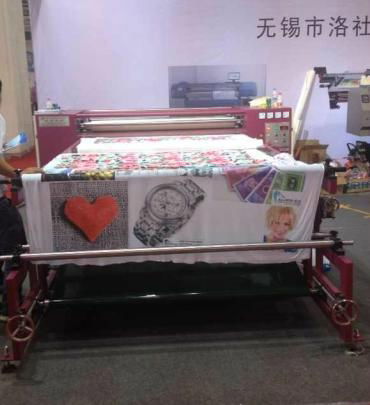

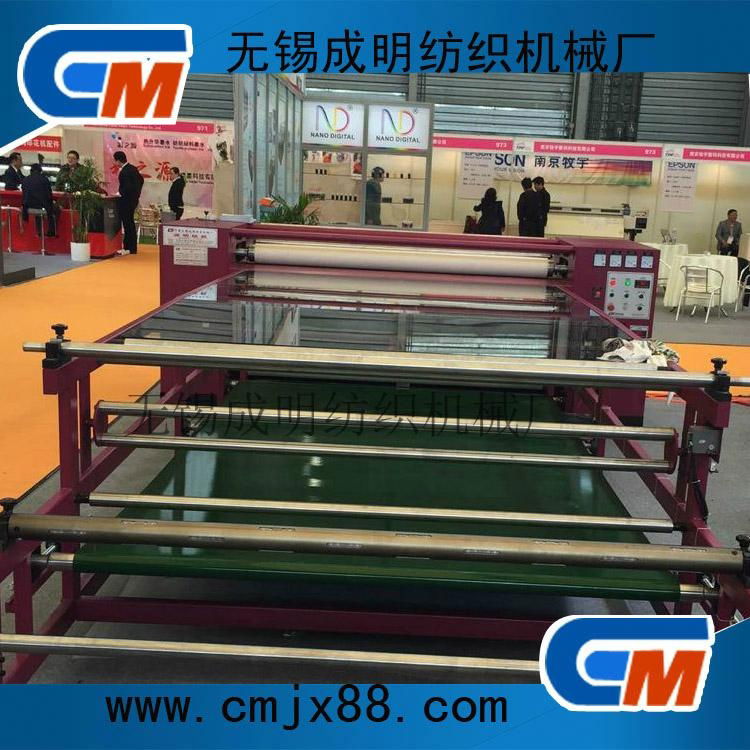

Name: thermal transfer printing machine brand: ChengMing machinery

Models: roller diameter 600 MMX roller width 1.8 m (1.7 m) effective printing the best printing width: 1.65 m

Production: concave-convex version printing paper: 0-500 m/h, printing paper printing paper: 0-380 m/h.

Equipment weight: the host machine 3 tons, 2.2 tons. The customer can be said to show you to the factory.

Free proofing, the device is to sell most of the equipment. High output, low energy consumption, energy conservation and pollution-free.
