Usage

This microscope is widely used in medical and health, electronics, precision machinery industry and so on, especially suitable to inspect the naked IC, LCD printing paste, PC



Feature



•  Zoom lens microscope

•  Inclined 45º/60º observation

•  Erect image

•  Can connect CCD camera

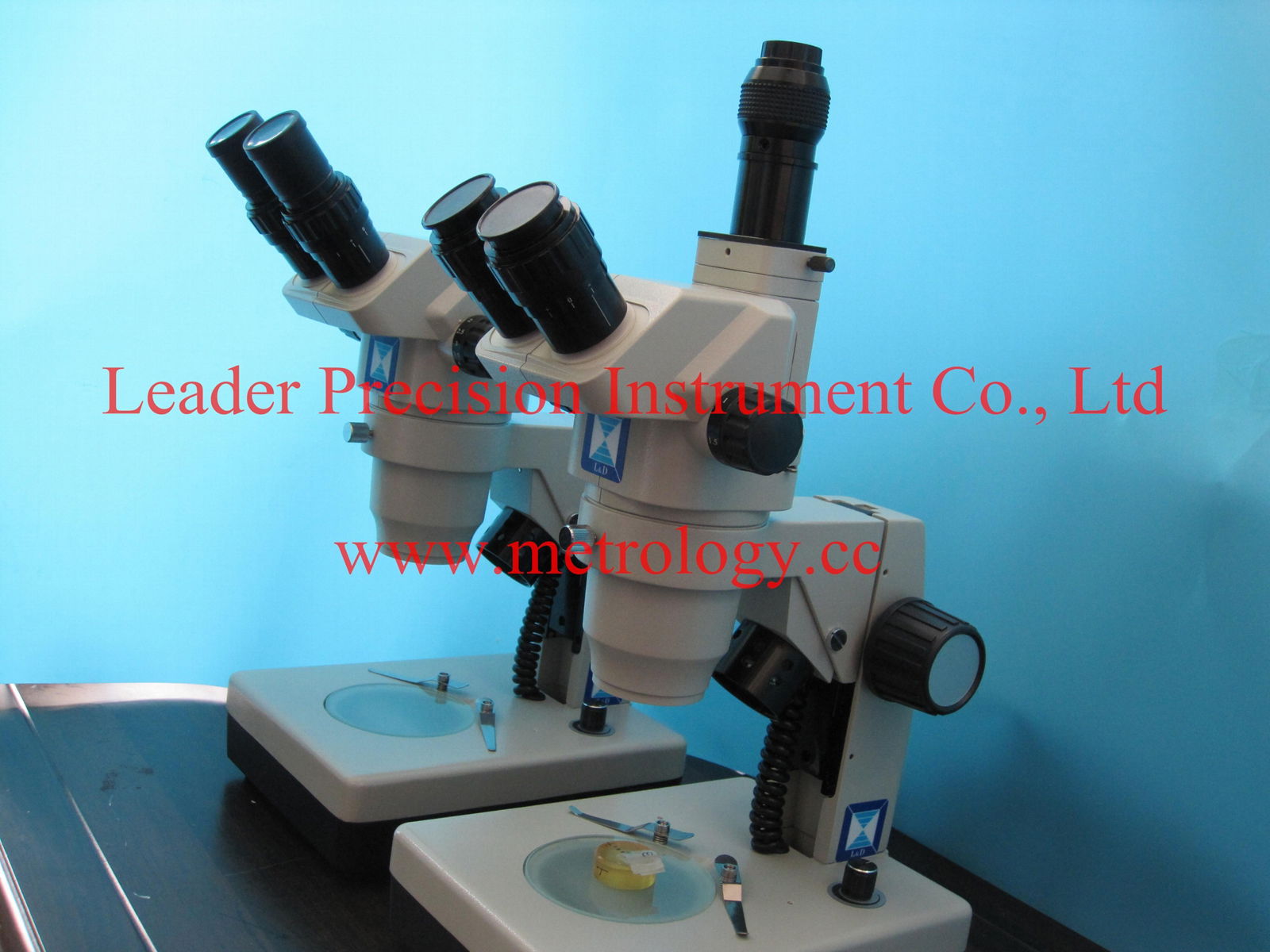

Optional type: Square column type(XTH-3022) and cylindrical-type(XTH-3024)


Technical data



Zoom ratio	1:6.5
Lens zoom range	1x-6.5x
Eyepiece	SWF 10X/23mm
Total magnification	10x-65x
Field of view	¢23mm-¢3.5mm
Working distance	103mm
Interpupillary distance	52mm-75mm
Binocular tube	Inclined 45º/60º
Diopter adjustment	±5 diopter
trinocular body rotation	360º
Power supply	110V/60HZ or 220V/50HZ
Top halogen lamp	6V 15W Adjustable brightness
Bottom fluorescent lamp	5W









Eyepiece	WF10X		WF15X		WF20X		WF25X
AL	Magnification	FOV	Magnification	FOV	Magnification	FOV	Magnification	FOV	WD(mm)
0.5X	5X-32.5X	¢46-¢7.4	7.5X-48.8X	¢32-¢5	10X-65X	¢26-¢4	12.5X-81.25X	¢24-¢3.6	163
0.75X	7.5X- 48.8X	¢30.7-¢4.7	11.3X-73.1X	¢21.3-¢3.3	15X-97.5	¢7.3-¢2.7	18.8X-121.9X	¢16-¢2.5	117
1X	10X-65X	¢23-¢3.5	15X-97.5X	¢16-¢2.5	20X-130X	¢13-¢2	25X-162.5X	¢12-¢1.8	100
1.5X	15X-97.5X	¢15.3-¢2.4	22.5X-146X	¢10.7-¢1.6	30X-195X	¢8.7-¢1.3	37.5X-243.8X	¢8-¢1.2	45
2X	20X-130X	¢11.5-¢1.8	30X-195X	¢8-¢1.2	40X-260X	¢6.5-¢1	50X-325X	¢6-¢0.9	40





Standard delivery



Main unit: 1pcs

Eyepiece patch: 2pcs

Anti-dust cover: 1pcs



Optional accessories



Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X

Auxiliary lens: 0.5x, 0.75x, 1.5x, 2x

Micro-image process software:

Digital Camera:
