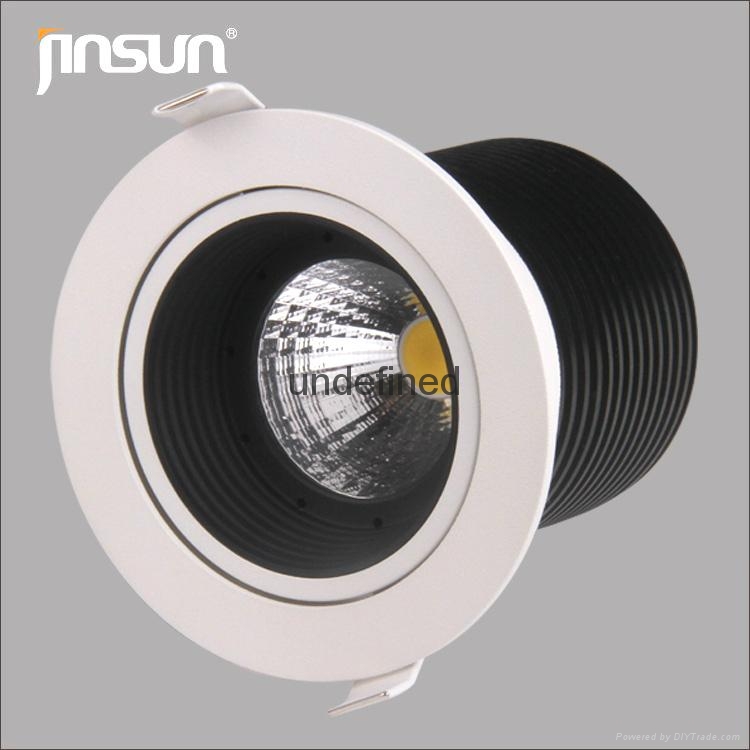

4inch10W/15W commercial led ceiling mount downlight 100mm cut out



Parameters:

	Model	D1005A-CT
	Input Power:	20w
	Input Volt:	100-240V AC
	PF	>0.95
	Luminous Flux:	1200lm
	CRI:	80 Ra
	LED light source:	Citizen
	Housing	Aluminum
	Lifetime:	50,000 Hours
	Warranty :	3 Years
	Dimmable or Non-dimmable for option



Wattage	Cutout size/mm	Beam Angle	Height/mm	Surface size/mm
4W	55(- 0/+3)	24	55	62
7W	65(- 0/+3)	24/60	62	78
10W	65(- 0/+3)	24/60	74	78
7W	75(- 0/+3)	15/24/60	62	85
10W	75(- 0/+3)	15/24/60	75	85
15W	90(- 0/+3)	20/40/60	74	108
20W	90(- 0/+3)	20/40/60	86	108
20W	100-105(- 0/+3)	24/36/60	99	118
25W	100-105(- 0/+3)	24/36/60	112	118
30W	120-125(- 0/+3)	15/24/40	109	138
35W	120-125(- 0/+3)	15/24/40	120	138
40W	160(- 0/+3)	15/24/40	116	180
50W	160(- 0/+3)	15/24/40	128	180



Remark:

1. Citizen imported from Japan LED:100LM-110LM/W     Ra:>80     PF>0.90

2. Model number letter N means non-adjustable; A means 180 degree-adjustable; D means 360 degree-adjustable.

3. The above products' IP are all IP40, can make IP54, price need further contact





Light Components:





Product Features:



1. Exquisite craft and appearance, simple structure and easy installation, safe and solid lighting fixture;



2. Precise optical design with unique process makes light more uniform and its efficiency reach 85%;



3. Particular structure heat sink which made of grade 6063 aluminum, imported COB lighting source , enable average lifespan of the lamp reach 50000 hours;



4. Superior Aluminum housing with oxidized or painting finished;

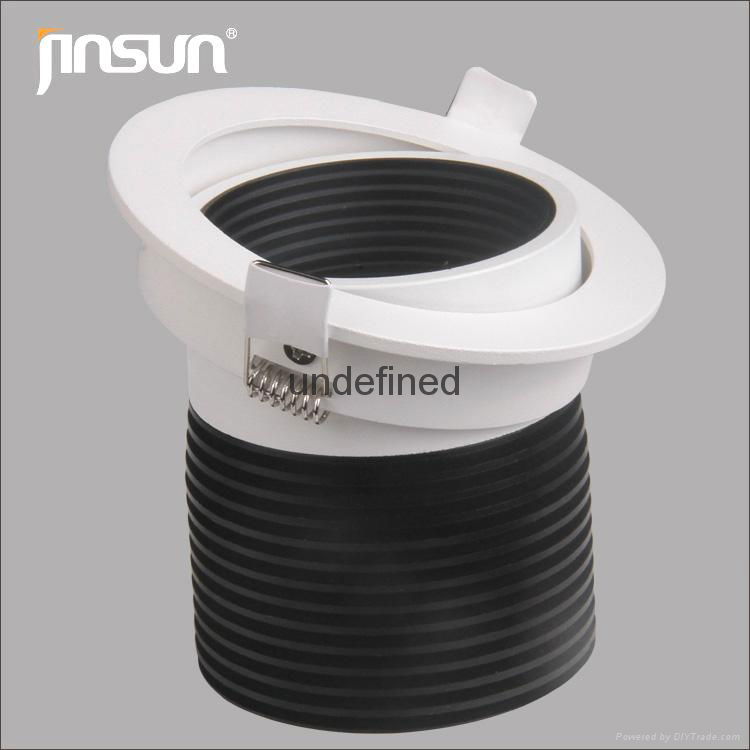

5. Lighting fixture is available to swivel in 30 degrees;



6. Healthy and eco-friendly lighting, No IR or UR hazardous.





Light Structure:

 1.Imported Citizen COB used CLL030-1205/1206, Nichia chip and Polycrystalline structure, has the features of a.High luminous efficiency b.Fast heat dissipation c. Low light decay d. Long Life span e.Uniform  Emitting

2.Unlike the sun-shape heat sink device, cannot fully dissipate and conduct the heat from the chip, affecting the whole light, light decay, life span, etc,

3.Our device design use chimney-shape, and with high quality Al6063, easily conduct and dissipate the heat, keep the light better functioning.



4. High quality Al6063 heat sink produce process.



Produce Process:

1. We meticulously consedered the design from the aesthetic appearance, thermal structure, eclectrical specifications to the product installtion convenience and safety;

2. Repeat experiments tested, strive to best performance of each product and low energy consumption to the extreme

2014 Newest packing:











Applications:



Applicable for shopping malls, stores, hotels,conference rooms, exhibition halls, museums and other deluxe lighting places.







Trade terms:

1. Payment: T/T, Western Union are available

2. Lead time: 10 working days for 100~500pcs, 15 working days for 500~2000pcs

3. Samples can be available within 6-8 working days

4. Shipping freight is quoted under your requests

5. Shipping port:  Zhongshan/Shenzhen, China mainland

6. Discounts are offered based on order quantities





Service:



1. Your inquiry related to our products or prices will be replied in 24hours.

2. Well-trained and experienced staffs to answer all your enquires influent English.

3. OEM & ODM are acceptable, OEM brand is available.

4. Protection of your sales area, ideas of design and all your private information.

5. Workers can be dispatched to our factory, free train and free charge.
