Washing machine panel Shuttle pad printer

Washing machine panel Shuttle  pad printer
Model:P2-616C
Brand:LC
Origin:Made In China
Category:Industrial Supplies / Plate Making & Printing Machine
Label:pad printer , pad printing machine , Tempo printer
Price: US $4206 / pc
Min. Order:1 pc

Product Description

Washing machine panel

Washing machine panels are usually made of engineering plastics, and common materials include ABS and PC. ABS material has good hardness, toughness and impact resistance, and is relatively cheap; PC material has higher strength, transparency and heat resistance. The design of the washing machine panel focuses on practicality and aesthetics. Generally, there will be a layout of various buttons, display screens and indicator lights to facilitate users to operate and view the working status of the washing machine.

Two-color pad printing machine

The two-color pad printing machine mainly realizes two-color printing through two independent printing units. First, the first set of printing plates and oil cup systems contain patterns and texts of one color. The rubber head first dips the ink to print the first color on the washing machine panel. Then, the other rubber head dips the second set of printing plates and the graphic on the oil cup system to print another position of the washing machine panel. In order to ensure the accuracy of the overprint, the fixture and product on the shuttle workbench can be adjusted.

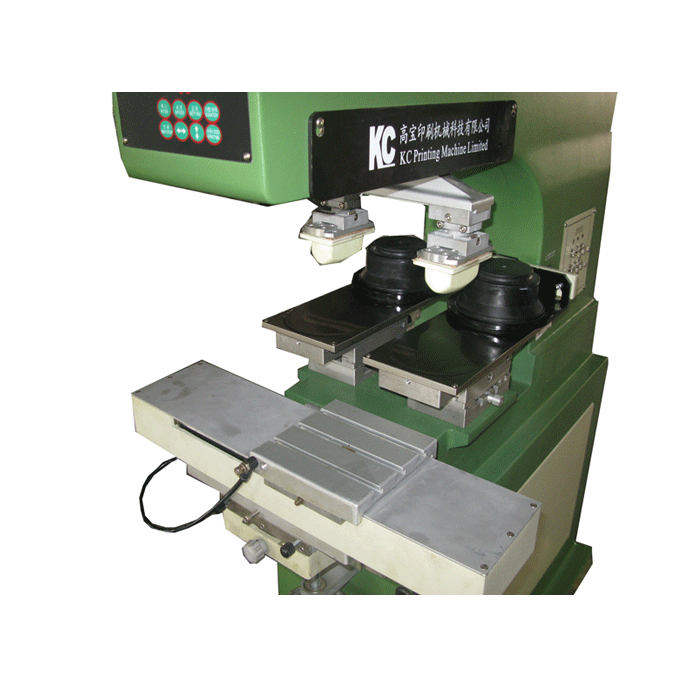

• Structural composition: It usually consists of a shuttle workbench, an oil cup and a printing plate system; a rubber head assembly device, an operation panel, and a pneumatic control system. The two-color shuttle pad printer is the best-selling pad printer on the market. It can print single color or two-color. Due to its simple structure, it is easy to operate and maintain. As the preferred investment for small and medium-sized enterprises, the value it creates is far greater than the cost itself.

Two colors pad printer with shuttle //Structure

Working table

Two stations Shuttle-type working table

Shuttle stroke

200mm

Ink supply system

Closed -type system

Plate type and size

0.3mm Thin steel sheets.

Pad dropping control

Simple-cylinder , simultaneously pressing

Ink drying

Heat air

Two colors pad printer//Usage and characters

Guide

  • Print both one color and two colors with shuttle worktable, Overprint is more precision.
  • With sealed cup to protect environment , VOC volatilization reduced 86% and save ink over 25%.
  • With coin aluminum structure ensure more stabilization and long life.

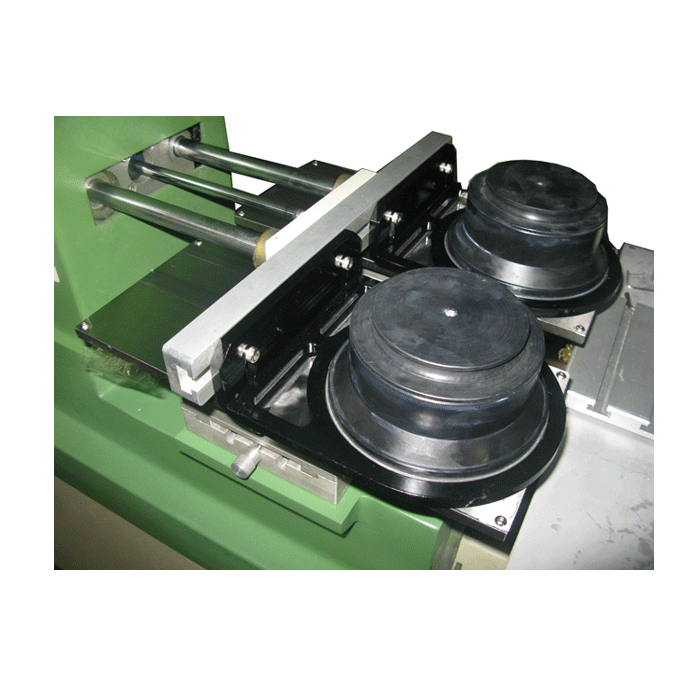

  • Independent cylinder to drive sealed cup ensure removing ink completely. Make min Pressure to remove ink and prolong the life of sealed cup and steel plate;
  • Both thick steel plates and thin steel plates installed , Choose according to customer requirements.
  • Can print almost small size objects . So sold very nice in the world.
  • Widely used in the industry field of cosmetics case, electron parts, Toys, plastics production, Housewares, gifts, decorations.
  • Completely printing solution including ink and thinner , fixtures, steel plates, rubber pads provided when you send us samples;
  • One of china famous brand pad printer.
  • Shuttle stroke: 200mm
  • Installing 140mm diameter sealed cup for more big size products.

Application fields

Electrons, hardware, autos, toys, gifts, Plastics, household appliances, artwork, stationery, adornment, cosmetic, commodity, sport goods, decorative lightings, woodwork, office supplies, Photo Materials, Kitchen utensils, Hotel supplies, Computer, Mobile, etc., industrial field.

Two colors pad printer with shuttle//Parameter

Technical parameters

P2-614C

  • Plate size: 150×350 mm;
  • Max. worktable area: 165×200mm;
  • Max. printing speed: 800pcs/hr;
  • Printable colour :2;
  • Max printing area:130×170mm;
  • Shuttle stroke: 200mm;
  • Height adjustment of table: 200mm;
  • Diameter of sealed cup: Φ140mm.


P2-612C

P2-616C

  • Max. plate size: 150×300 mm;
  • Max. worktable area: 165×200mm;
  • Max. printing speed: 850pcs/hr;
  • Printable colour :2;
  • Max printing area:130×130mm;
  • Shuttle stroke: 200mm;
  • Height adjustment of table: 200mm;
  • Diameter of sealed cup: Φ140mm.
  • Max. plate size: 150×400 mm;
  • Max. worktable area: 165×200mm;
  • Max. printing speed: 700pcs/hr;
  • Printable colour :2;
  • Max printing area:130×220mm;
  • Shuttle stroke: 200mm.
  • Height adjustment of table: 200mm.
  • Diameter of sealed cup: Φ140mm

Works supply

  • 110V-220VPower supply;
  • 5-7Bar Compress air;

Package list

  • Package dimension:1.21×0.68×1.55m
  • Gross weight: 155kg
  • CBM: 1.275

H.S.Code

8443198000

Certicate

CE

Two colors pad printer with shuttle //Advantage

Function

  • Microcomputer program controlling operating technique ;
  • Streamline design ensure dexterous Appearance impressions;
  • Coin aluminum structure frame coated Gross-Green color paint;
  • Shuttle working table installed to get more precision overprint;
  • Independency pressure adjustment of pad press-printing and picking up ink;
  • Either testing or running mode to operate ;
  • Closed cup to store and coating ink , save ink and protect environment
  • Automatism digital count function;
  • Double colors pad printing with drying through blowing hot air:
  • Ten grade printing speed setting, auto, semi-auto, testing operation mode setting;
  • Sealed cup driven by independent cylinder , ink remove clean;
  • 140mm sealed cup installed for large size products.
Summary:
The environmental protection appeal of the pad printing machine is to use the ink supply method of the oil cup, and the ink is sealed in the oil cup to avoid the volatilization of the solvent. Two-color ink cup pad printers are the best-selling pad printers. Although high-end users will require pad printers with touch screens and more configurations, ordinary microcomputer-controlled pad printers and shuttle pad printers still occupy a large market. market share.
Two-color shuttle ink cup pad printers are introduced to the market with the size of the installed steel plate as a series. The larger the size of the steel plate, the larger the printing area. Widening the size of the steel plate in the horizontal direction means that a larger diameter oil cup needs to be selected. Extending the size of the steel plate in the transverse direction means that the size of the product that can be printed is larger. When you choose a pad printing machine, it is very important to provide your supplier with pictures of the product, dimensions, size and location of the printed pattern. In any case, if you are just getting into the field of pad printing, choosing a two-color shuttle pad printer is the most basic and probably the most cost-effective investment.
