15" Capacitive Touch POS System TD5-C2 /10-point Capacitive Touch Screen POS

15" Capacitive Touch POS System TD5-C2 /10-point Capacitive Touch Screen POS
Origin:Made In China
Category:Consumer Electronics & Lighting / Commerce & Finance Electronics / Other Commerce Electronics
Label:POS , POS system , touch pos
Price: US $495 / pc
Min. Order:20 pc
Inquire Now

Product Description

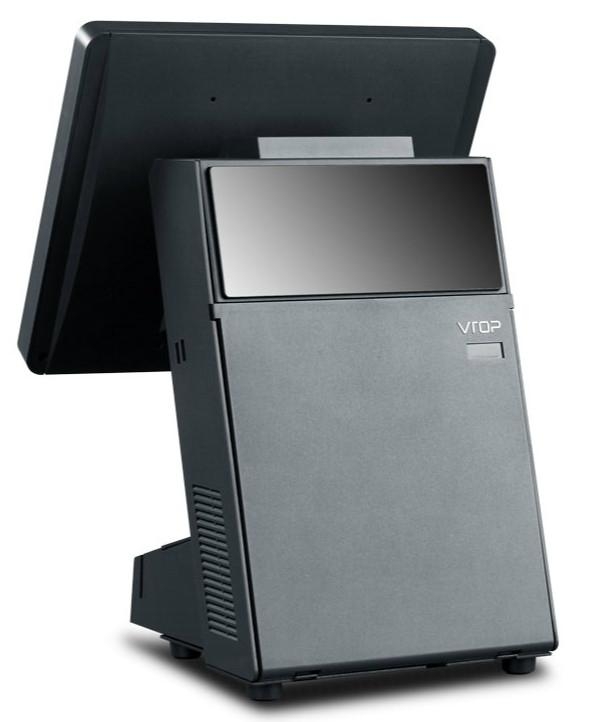

15" 10-point Capacitive Touch Screen POS System TD5-C2/ With Integrated Highlight VFD Customer Display/ Touch Screen POS


10 Points Capactive Touch Screen
Interactive Experience

HD Resolution  1024*768


Laptop Power Supply

Stable, excellent fluctuation resistance.

Environment protection and energy-saving, stand-by power consumption 15W,

working power consumption 25W


Innovative Modular Design

Highly integrated, easy maintenance

No exposed wires, tidy



Processor Intel Celeron Processor 1037U 1.8Ghz
System Memory 2 GB DDR3 (1 x 204-pin DDR3)
Storage Device 64G SSD
Power Supply 60W (12V/5A) External Power Adaptor
Housing Color Dark Gray
OS Support Windows XP, POSReady 2009, Windows 7, POSReady 7, Windows 8.1
Touch LCD Display
LCD 15" TFT LCD  (LED Backlight)
Resolution 1024 x 768
Touch 10 point Capacitive Touch
I/O Ports
Serial Port 3 x External: COM1 (RJ-11), COM2 , COM3(DB9)
Printer Port 1 x Bi-directional Parallel Port
USB Port 6 x External (4 Rear + 2 Side)
Keyboard  1 x PS/2
LAN Port 1 x RJ45 100M LAN
Audio Port 1 x Line Out
Video Port 1 x VGA
TF Card Slot 1 x TF
Mini-PCIe Slot N/A
DC Output 1 x 12V DC Jack 2.5 mm
Built-in Device
Built-in Printer N/A
Built-in MSR PA-MSR23 (Optional)
Built-in RFID Reader PA-RFID (Optional)
Built-in WIFI N/A
Built-in Keyboard N/A
Physical Dimensions
Dimensions (WxHxD) 370 x 360 x 222 mm
Carton Dimensions (WxHxD) 450 x 480 x 310 mm
Weight 7.1kg (Net), 9.1kg (Gross)
Integrated 2nd Display N/A
Customer Display CD-V10E(VFD)
Receipt Printer N/A
POS Keyboard N/A
Cash Drawer N/A




Scope of warranty:

If no specific instructions, the warranty scope of BUSIN POS products includes all hardware components of the original configuration. The following parts are not included in warranty scope: free parts, pre-installed software, instruction manual and warranty card.

Warranty period:

14 months after delivery, the date depends on the packing list.Within the warranty period, we will offer free repair or replacement service.  (For the products beyond the warranty period, BUSIN provides stipendiary service according to the situation of maintenance).

Warranty procedure:

Please inform us once the quality problem occurs, BUSIN will give a clear reply and solve the problem as soon as possible.



1. What is your MOQ?

A: Our MOQ is 5pcs. But 1pc could be accepted for trial order.

 2. After buying the POS system, how do I install the bar code scanner?

A: There are 2 methods of installing the bar code scanner.

One is to install the scanner on the port between the keyboard and the mainframe.

The other is to install the scanner on the external keyboard wedge of the programmable keyboard.

 3. Do you offer other relevant items?

A: Yes, we do. We are offering POS monitor, thermal receipt printer, magnetic card reader, programmable mechanical keyboard and cash drawer.


Company Information

BUSIN technology Co., Ltd. is a high-tech enterprise of commercial POS system and POS peripherals, integrating the R&D, production, sales and service. Our products are widely used in stores, supermarkets, boutiques, restaurants, hotels and other service industries.

BUSIN technology Co., Ltd has patents in appearance and invention.

BUSIN technology Co., Ltd passed the ISO9001 quality management system certification, the products passed 3C, FCC, CE,UL, GUV and RoHS certificates. BUSIN technology Co., Ltd is Intel's strategic partner in China market, and core partner of ELO, CHERRY, Samsung, Fujitsu, Seiko technology. The company is committed to provide high performance and stable products for customers.


BUSIN technology Co., Ltd manufactures full series of POS machine and accessory parts with independent R&D, products series are now with 3rd generation POS, all-in-one POS, split-type POS, touch all-in-one POS, touch split-type POS, dual-screen all-in-one POS, dual-screen split-type POS, POS peripheral (receipt printer, customer display, programmable keyboard, LED display, cash drawer, POS cabinet, DC power supply module, card reader and keyboard blinding technology). We can provide the hardware solutions of intelligent management in various industries and high efficient service for customers.
