Smartgen HAT520 Generator ATS Controller

Smartgen HAT520 Generator ATS Controller
Model:HAT520
Brand:Smartgen
Origin:Made In China
Category:Industrial Supplies / Machinery / Power & Generating Sets
Label:HAT520 , Smartgen , Generator ATS Contro
Price: US $170 / pc
Min. Order:1 pc

Product Description

SmartGen HAT520N ATS Controller For Generator Measurement HAT520



The powerful Microprocessor contained within the HAT520 ATS controller allows for precision voltage(2-way 3-phase/single phase) measuring and make accurate judgment on abnormal voltage (power lost, over/under voltage, over/under frequency, loss of phase, phase sequence wrong) and control ATS to tranfer after the delay has expired. This controller is suitable for NO Breaking ATS. When 1# is abnormal, the controller will send signal to start genset after the "1# abnormal delay" has expired. "Three remote"(remote control, remote measurement and remote communication) function can be implemented with the help of LINK communication port.







PERFORMANCE AND CHARACTERISTICS

HAT520 ATS controller can monitor 2-way 3-phase 4-wire voltage, 2-phase 3-wire and single-phase 2-wire voltage (2 way mains, or 1 way mains and 1 way generator) and control ATS to transfer. Its performance and characteristics are shown as below

1.Measure and display 2-way 3 phase Voltage and Frequency;
2.Over/under voltage, loss of phase, phase sequence wrong, over/under frequency protection function. As default, phase sequence wrong protection and over/under frequency protection are disable; however, users can set the protection function as need.
3.Parameters can be set via PC software using SG72 module (USB to LINK) or other converse module.
4.The voltage normal delay of 1# or 2#can be set in (0~60) seconds and the Genset start delay can be set in (0~3600) seconds.
5.The voltage abnormal delay of 1# or 2#can be set in (0~60) seconds and the Genset stop delay can be set in (0~3600) seconds.
6.“1# power priority”, “Auto/Manual”, “No priority” and “2#power priority” can be set via controller front panel.
7.Closing output signal can be set as on intervals or as continuous output.
8.Applicable for 2 isolated neutral line.
9.Auto/Manual mode. In manual mode, ATS transfer can be implemented via panel pushbutton.
10.LEDs mounted on front panel can clearly show ATS running status.
11.The output contactor capacity of 1# and 2#power supply transfer relay (1#CLOSE, 2#CLOSE) is 16A AC250V, volts-free contact, can be directly used in driving switch to transfer.
12.The output contactor capacity of Genset start relay (GENS START) is 7A AC250V/7A DC28V, volts-free N/C contact.
13.Suitable for various AC systems (3 phase 4-wires, 2-phase 3-wires and single-phase 2-wire).
14.Controller has strong ability of anti-electromagnetic interference, can be used under complex electromagnetic interference environment.
15.Modular design, self extinguishing ABS plastic shell, pl able terminal, built-in mounting, compact structure with easy installation.



SPECIFICATION

Items

Contents

Operating Voltage

AC170V~277V during AC power L1N1/L2N2 supply.

Power Consumption

<2W (Standby mode: <1W)

AC Voltage Input

3P4W (ph-N)

1P2W (ph-N)

2P3W (ph-N)



AC170V~AC277V(ph-N)

AC170V~AC277V (ph-N)

AC170V~AC277V(ph-N)

Rated Frequency

50/60Hz

1# Close Relay Output

16A  AC250V  Volts free output

2# Close Relay Output

16A  AC250V  Volts free output

Gen Start Relay

7A  AC250V  Volts free output

1# Close Input

COM connect is active.

2# Close Input

COM connect is active.

Communication

LINK interface, MODBUS Protocol

Case Dimensions

139mmx120mmx48mm

Panel Cutout

130mmx111mm

Working Conditions

Temperature: (-25~+70)°C;   Humidity: (20~93)%RH

Storage Condition

Temperature: (-25~+70)°C

Protection Level

IP55 Gasket

Insulation Strength

Apply AC2.2kV voltagebetween high voltage terminal and low voltage terminal;

The leakage current is not more than 3mA within 1min.

Weight

0.49kg







Price Terms:EXW Shenzhen
Payment Terms:TT/LC/Western Union/Paypal
Packing:EXPORT CARTON
Lead Time:2 days

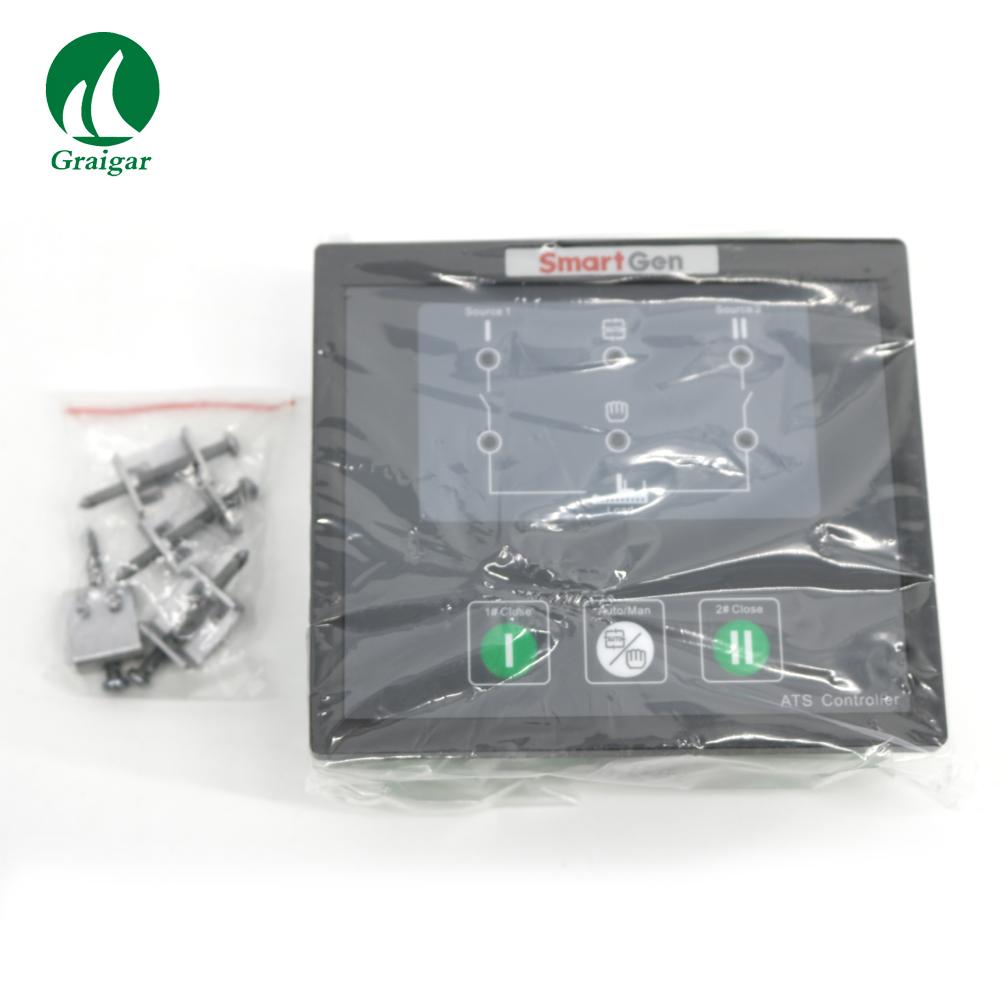

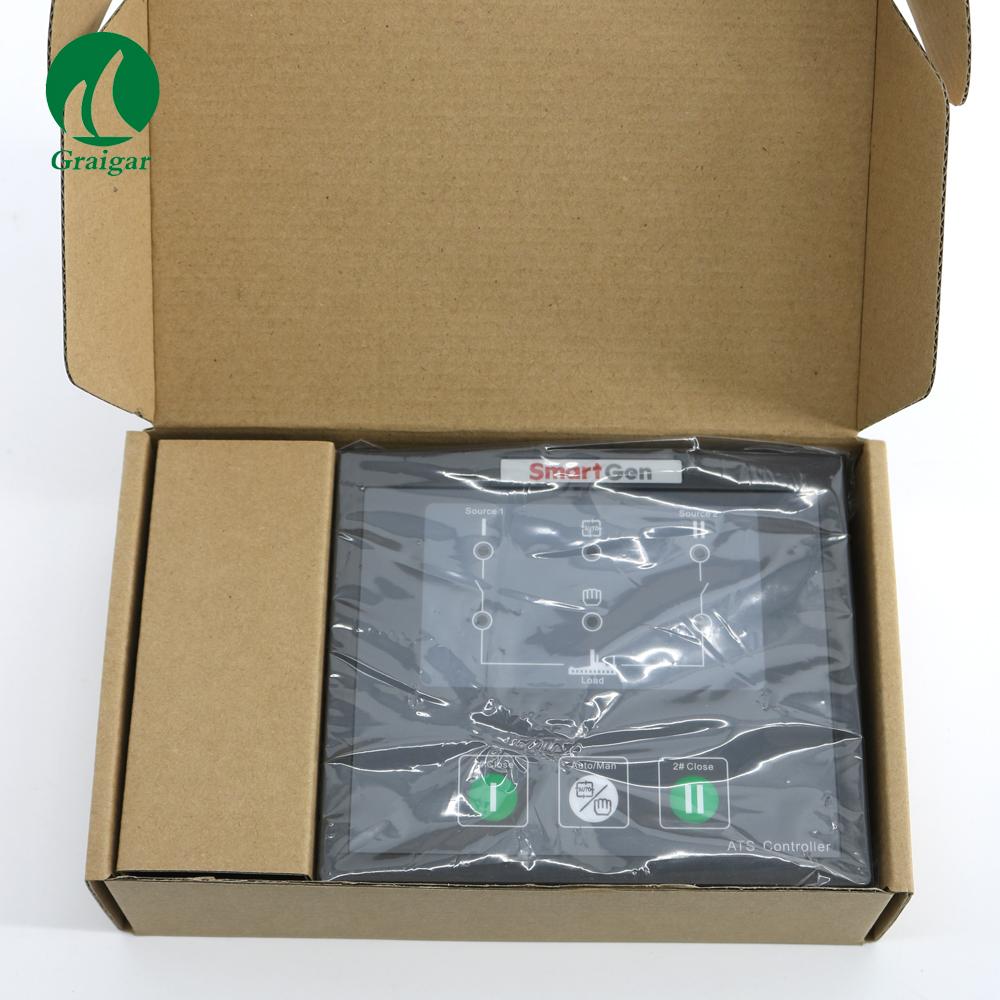

Smartgen HAT520 Generator ATS Controller 1Smartgen HAT520 Generator ATS Controller 2Smartgen HAT520 Generator ATS Controller 3Smartgen HAT520 Generator ATS Controller 4Smartgen HAT520 Generator ATS Controller 5
