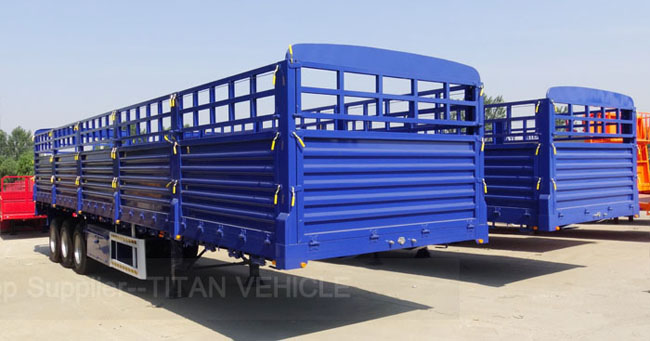

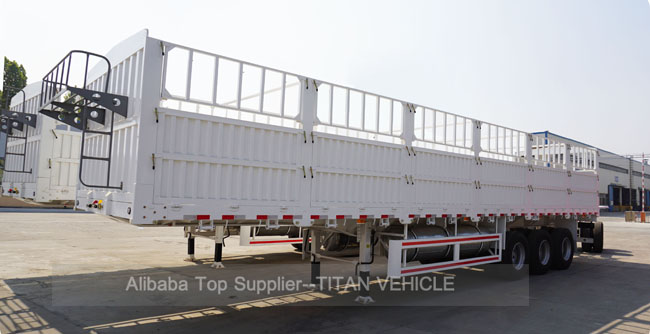

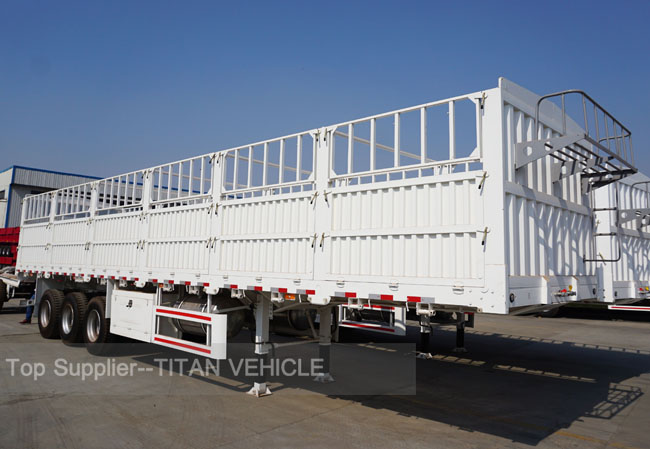

TITAN 3 Axles 40 ton 60 ton Side Wall Flatbed Fence Semi Trailer for carrying 40ft 20ft Container
TITAN produces high quality 3 Axles Side Wall Fence Semi Trailer with 60 ton loading capacity and 600mm to 800mm Side Walls, and the side wall fence semi trailer is a specialized for carrying 40ft cargo trailer, two 20ft containers, or one 20ft container without removing the side walls or frame. all the key component and parts used to make up the Side Wall Fence Trailer are purchased from qualified suppliers, so our side wall fence semi trailer are able to withstand a long time of use, exhibiting great strength.
Product Vide link: http://www.titanvehicle.com/product/en/TITAN-3-Axles-40-ton-60-ton-Side-Wall-Flatbed-Fence-Semi-Trailer-for-carrying-40ft-20ft-Container.html
Product News: Side Wall Fence Semi Trailer for Uganda
Contact infro:
tom@titanvehicle.com
Phone: 008618615679754, websit: www.titanvehicle.com
Advantages - TITAN Side Wall Fence Semi Trailer
1. The frame of the Fence Semi Trailer adopts the space frame structure of welding the longitudinal beam and the integral through type cross beam. It is outstanding in strength, rigidity, toughness and bearing capacity. Meanwhile, the frame won’t come out with permanent deformation.
2. The height of side wall can adopt 600mm, 800mm, and 1000mm, and the side wall and fence no need to be removed when carrying the 40ft container or 2 unit 20ft container.
3. Excellent brake effects.the axles are equipped with WABCO emergency brake valve also dual-brake chambers also widen brake pads.
4. TITAN Fence Semi Trailer adopts premium steel material, advanced technology and strict production to our semi-trailer. The trailer chassis automatic submerged arc welding to ensure the welding seal solid.
Specification - TITNA Fence Semi Trailer
Dimension |
12500mm*2700*1600mm |
Side wall |
600mm, 800mm, 1000mm |
Loading capacity |
60 ton |
Axles |
3X14 ton TITAN |
Tire |
12R22.5, 12 units |
Rim |
900-22.5, 12 units |
King pin |
90# JOST |
Landing gear |
JOST C200 |
Brake system |
WABCO Valve and relays/ABS |
Suspension |
Mechanical Spring Suspension |
Container lock |
12units |
TITAN Side Wall Fence Semi Trailer for Uganda
Fence Semi Trailer for carrying 20ft 40ft Containers
