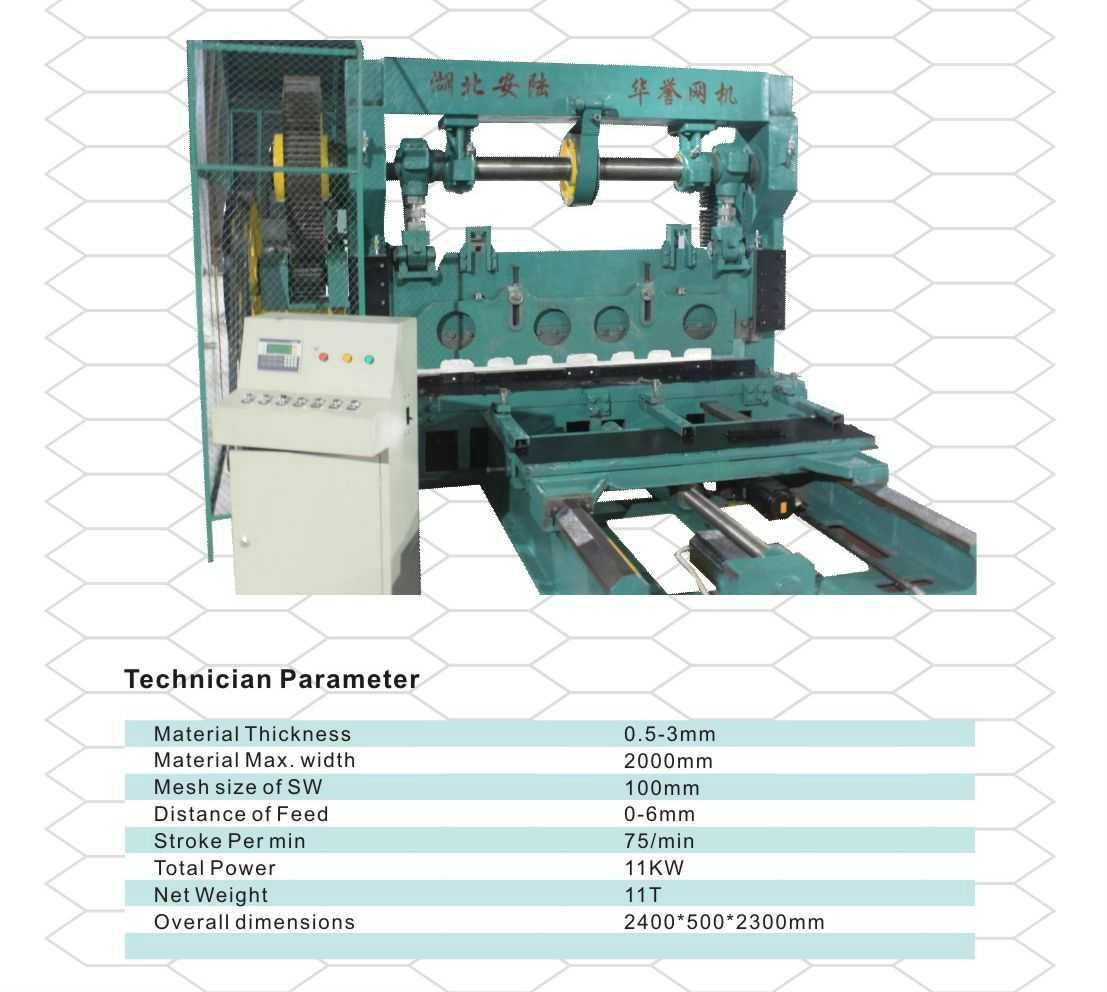

Expanded metal mesh making machine JQ25-63 / 2000mm width

Expanded metal mesh making machine JQ25-63 / 2000mm width
Model:JQ25-63
Brand:JIANYU
Origin:-
Category:Industrial Supplies / Other Industrial Supplies
Label:expanded metal mesh , expanded metal machi , flatten machine
Price: -
Min. Order:1 pc

Product Description

♣Introduction about the machine

This machine adopts mature technologies of the past as well as new technologie,such as full-automatic lubricating, NC stepping motor feeding, etc. It has good effect, control ability,stability and safety has been greatly increased. It has reasonable structure, elegant appearance. energy saving.

It is suitable for the material such as low carbon steel sheet, aluminium sheet, stainless steel sheet, aluminium magnesium alloysheet, copper sheet, Nickel sheet.



 Finished product usage

Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships.



♣ Technical Parameters



Material Thickness

0.5-2.5 mm

Material Max. width

2000 mm

Mesh size of  LWD

30 mm

Distance of Feed

0-6mm

Stroke Per min

70 times/min

Total Power

11 KW

Net Weight

11 T

Overall dimensions

3500*2400*2300

Expanded metal mesh making machine JQ25-63 / 2000mm width

Expanded metal mesh making machine JQ25-63 / 2000mm width



Shipping and packaing :



We can design the machine according to customer's different request, if you want to know more information about the machine, please feel free to contact us anytime!



Delivery time of machine is 30days after confirm your payment,package can be according to customer's request!



Our service:



1.With 12 months free warranty ,reply within 24 hours after sales service.





2.As per your special requirements which are also welcome to discuss.





Payment term:



1.40% T/T in advance,The balance against the copy of the B/L



2.L/C is also acceptable.



3.As per your special requirements which are also welcome to discuss

Payment Terms:TT / LC
