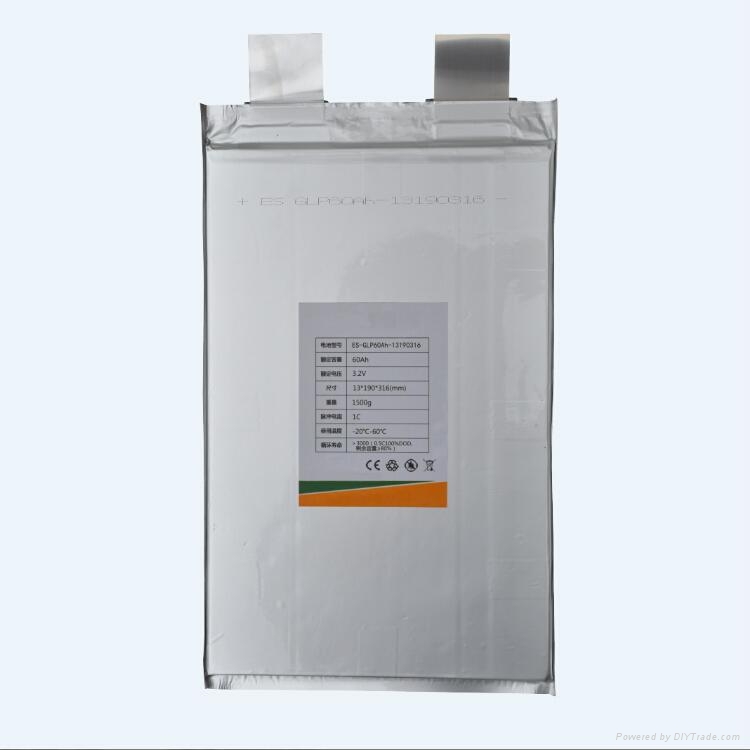

3.2V 60AH Lithium Battery For Portable Device

Model:	13190316-60AH
Brand:	Lithium Power
Origin:	Made In China
Category:	Electronics & Electricity / Battery, Storage Battery & Charger
Label:	3.2V Battery , Lithium ion battery , LFP Battery
Price:	-
Min. Order:	500 pc

Product Description

Features of LiFePO4 Battery

1, Battery has low internal impedance, adequate capacity, stable performance etc.

2, Cycle life more than 2000 times.

3, High rate discharge, superior performance. High Density energy and high cost performance.

4, Safety performance: No explosion, no leakage, not hot , high temperature resistant.

5, Green protection.

6, Battery meets ROSH Standard.

Specification

Nominal Capacity	60Ah
Nominal Volt	3.2 V
Internal Resistant	≤1.2mΩ
Cut-off Discharge Voltage	3.65 V
Charge Current	Standard Charge Current：0.3C Rapid Discharge Current：1C
Standard Charge Method	0.3C5A constant current（CC）charge to 3.65V，then constant voltage 3.65V（CV）charge till charge current decline to≤0.02C5A
Charging Time	Standard Charge：5.0h（Reference） Rapid Charge：3.0h（Reference）
Max charge Current	30A (0.5 C)
Max Discharge Current	60A (1.0 C)
Cut-off Discharge Voltage	2.0 V
Operating Temperature	charge：0°C ~ 45°C Discharge：-20°C ~ 60°C
Storage Temperature	-10°C ~ 45°C
Storage Humidity	＜85﹪
Dimension	13190316（mm）
Weight	Approx：1500 g
