This fully automatic five wires simultaneous cutting stripping twisting tinning crimping machine can perform wire cutting, single-end stripping, dual-end stripping, single-end crimping, single-end twisting, single-end tinning, and process wires ranging from AWG32 to AWG16. When the cutting length is 100mm, it can process 5500 wires per hour. When the cutting length is 200mm, it can process 4600 wires per hour. This machine utilizes precision screws, servo motor for linear feeding, resulting in higher accuracy and greater force.

Machine features:

A touchscreen English operating menu, which is easy to learn and use.
Fast and efficient changeover of processes and materials, high precision,fast, and easy maintenance.
The machine adopts servo control: 6 sets of servo motors/drives (Huichuan servo).
Pneumatic components: cylinders (Taiwan Yadeke).
Screw guide rails: Taiwan CPC/HIWIN.
Color touchscreen: Kinco (Taiwan).
Full computer numerical control deb ing: blade size, wire cutting length, stripping length, depth of flux application, depth of tin coating can all be operated digitally through the touchscreen.
Project Name Technical Specifications

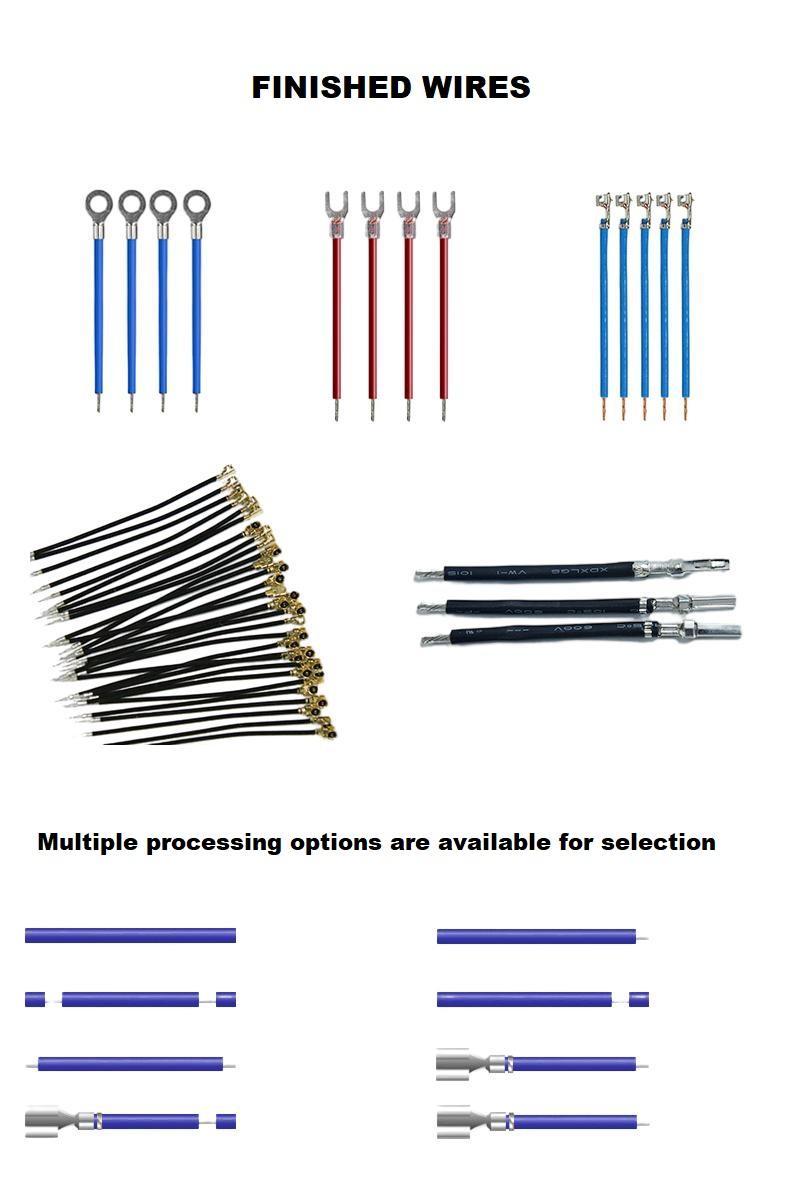

Function Wire cutting, single-end stripping, double-end stripping, single-end terminal crimping, single-end twist, single-end tin coating (optional to enable or disable).
Cutting Length: 35mm-650mm
Cutting Accuracy: 0.2+/-0.02L
Stripping Length Front end:1-6mm,Back end:1mm-10mm
Wire Diameter 1mm-3.5mm
Tin Coating Length :1mm-10mm
Twist Length: 2mm-10mm
Common Wire Diameter AWG16-AWG30
Crimping force: 2.0T terminal machine
Working efficiency: when cutting length is100mm, production is 5500 pieces/hour. when cutting length is 200mm, production is 4600 pieces/hour.
Air Pressure: 0.5-0.7MPA
Detection Devices Terminal crimping detection, missing wire detection
Tool Material High-speed steel
Dimensions: L180xW98xH160CM (standard machine)
Net Weight 290KG
Auxiliary Device Terminal waste paper collection device
Power Supply AC220V, single-phase, 8A (can be customized)
