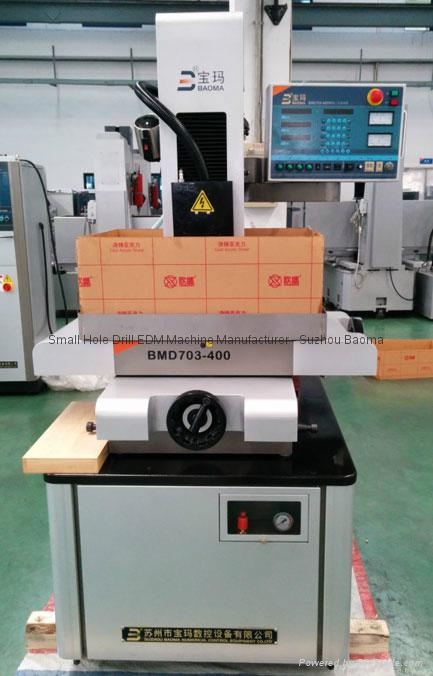

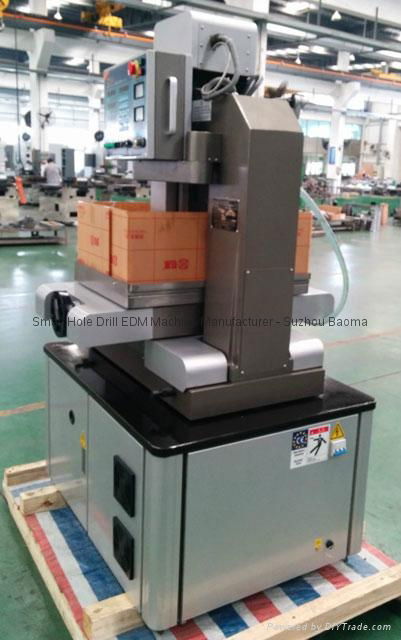

Small Hole EDM Drilling Machine

Model:	BMD703-400
Brand:	BAOMA
Origin:	Made In China
Category:	Industrial Supplies / Machinery / Machine Tool
Label:	Small Hole EDM , EDM Drilling Machine , EDM drilling
Price:	-
Min. Order:	1 pc

Inquire Now

Product Description

High Speed Small Hole EDM BMD703

Parameters		BMD703
Worktable size(L×W)	mm	470x360
Table travel(X×Y)	mm	400x320
Z axis travel	mm	270+(300)
Max. drilling depth	mm	0 -- 300
Max. Drilling Speed	mm/min	60
Max. working current	A	30
Drill Diameter	mm	0.2 -- 3.0
Load of table	Kg	300
Working solution		Water/Saponification
Water Tank	L	30
Voltage		380V AC/50 Hz or 415V AC/50 Hz
Max. Power	KVA	3.5
Machine Dimension (LxWxH)	mm	1120×1005×1915
Packing Size (LxWxH)	mm	1400x1450x2050
Machine Weight	Kg	700
Z Axis Controller type		Electric Motor
Digital Display		X,Y,Z axis
Function of setting depth		Yes

Price Terms:

FOB Shanghai

Payment Terms:

T/T or L/C at sight

Packing:

1 Case/Unit

Lead Time:

25days

Standards Certificate:

CE; ISO9001; ISO14001

Embed HTML Code:

Item	BMD703
Worktable size(L×W)mm	470×360
Table travel(X×Y)mm	400×320
Z axis travel mm	300+(270)
Max. drilling depth mm	0-300
Max. drilling speed mm2/min	60
Max re-track speed of spindle mm/min	320
Max. working current A	30
Electrode diameter	0.2-3.0
Load of table kg	300
Working solution	Water/Saponification
Working reservoir capacity L	30
Power supply	380V AC/50 Hz or 415V AC/50 Hz
Max. Power consumption KVA	3.5
Machine dimension mm	1120×1005mm×1915
Package dimension mm	1400×1450×2050
Machine weight kg	700
Controller type	Automatic Z axis
Digital Display	X,Y,Z axis
Function of setting depth	yes
Function of group drilling	yes

The processing data in common use: This section is some technologic data according to technics experiments of normal prototype machines and technologic results. In particular process, Users can choose different parameter according to different orders to gain the process result which user wants. Conditions: Electrode: brass power net: 380AC

parameters material aperture		Ton(1)	Toff (2)	Ip (3)	Kc(12)	pressure(Mpa)	processingvoltage (V)	Rotation	processingcurrent (A)
0.3	45#	2	1	2	0	5-6	25	Y	3
0.3	chilled steel	2	1	2	0	5-6	25	Y	3
0.3	stainless steel	2	2	2	0	5-6	25	Y	3
0.5	45#	3	2	3	0	6	25	Y	5
0.5	chilled steel	3	2	3	0	6	25	Y	5
0.5	stainless steel	3	2	2	0	6	25	Y	4
1.0	45#	3	2	5	-	6	20	Y	12
1.0	chilled steel	3	2	6	-	6	20	Y	12
1.0	stainless steel	3	2	4	-	6	20	Y	10
2.0	45#	4-6	2	6	=	6	20	Y	18
2.0	chilled steel	4-6	2	6	=	6	20	Y	18
2.0	stainless steel	5	2	6	=	6	20	Y	16
3.0	45#	5-7	2	8	=	6	20	Y	25
3.0	chilled steel	5-7	2	8	=	6	20	Y	25
3.0	stainless steel	7	2	7	=	6	20	Y	23
