Model: | NYLON |
---|---|
Brand: | bestpay |
Origin: | Made In China |
Category: | Textile & Leather / Fabrics / Chemical Fabrics |
Label: | Conductive Nylon R2 , ESD NYLON R6 , MC901 SHEETS |
Price: |
¥25
/ kilogram
|
Min. Order: | 50 kilogram |

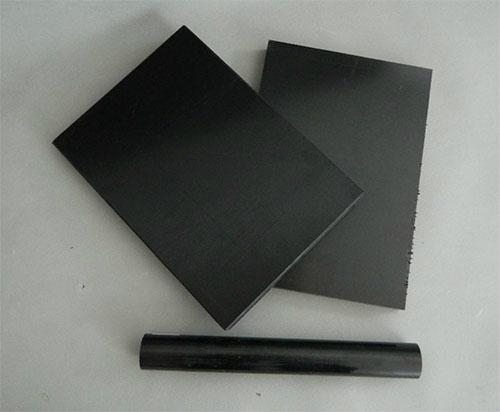

~Conductive Nylon R2 Sheet/ Rods
Color:Black
SIZE: Sheets :T X WX L 6-200mm×610mm×1230mm
Rods :Dia. X L 6-150mm×1000mm
DATA SHEET
ITEM METHOD UNIT VALUE
Mechanical Properties
Tensile yield strength GB/T 1040 Mpa 75-85
Modulus of elongation ISO 527 Mpa 4100
Breaking elongation ISO 527 % >25
Max. compressive strength ISO 604 Mpa 90-100
Coefficient of compressibility
ISO 604 Mpa 2700
Bending strength ISO 178 Mpa 100-110
Elasticity bending modulus
ISO 178 Mpa 3300
Impact strength ISO 180 KJ/M2 5.4
Shore hardness GB 3398 Shora D 83-85
Thermal Properties
Melting point ISO 1218 ℃ 220
Max. intermit operating temperature - ℃ 180
Max. continuous operating temperature - ℃ 115
Min. intermit operating temperature - ℃ -100
Min. continuous operating temperature - ℃ -40
Coefficient of linear thermal expansion ISO 11359 10-5-1/K 5-8
Electrical Properties
Dielectric constant IEC 250 - -
Dielectric strength IEC 243 KV-mm -
Volume resistivity IEC 93 Ω.cm 103-105
Surface resistivity IEC 93 Ω 103-105
Impedance IEC 112 - -
Others
Specific gravity USO 1183 g/cm3 1.15
abrasive resistance
- - 0.41
Coefficient of friction - - 0.39

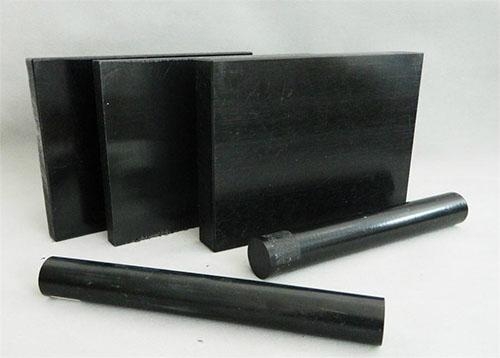

ESD NYLON R6 SHEETS/RODS
COLOR:BLACK
SIZE : SHEET:T X WX L 6-200mm×610mm×1230mm
ROD:Dia. X L 6-150mm×1000mm
DATA SHEET
ITEM METHOD UNIT VALUE
Mechanical Properties
Tensile yield strength GB/T 1040 Mpa 75-85
Modulus of elongation ISO 527 Mpa 4100
Breaking elongation ISO 527 % >25
Max. compressive strength ISO 604 Mpa 90-100
Coefficient of compressibility
ISO 604 Mpa 2700
Bending strength ISO 178 Mpa 100-110
Elasticity bending modulus
ISO 178 Mpa 3300
Impact strength ISO 180 KJ/M2 5.4
Shore hardness GB 3398 Shora D 83-85
Thermal Properties
Melting point ISO 1218 ℃ 220
Max. intermit operating temperature - ℃ 180
Max. continuous operating temperature - ℃ 115
Min. intermit operating temperature - ℃ -100
Min. continuous operating temperature - ℃ -40
Coefficient of linear thermal expansion ISO 11359 10-5-1/K 5-8
Electrical Properties
Dielectric constant IEC 250 - -
Dielectric strength IEC 243 KV-mm -
Volume resistivity IEC 93 Ω.cm 106-109
Surface resistivity IEC 93 Ω 106-109
Impedance IEC 112 - -
Others
Specific gravity USO 1183 g/cm3 1.15
abrasive resistance
- - 0.41
Coefficient of friction - - 0.39

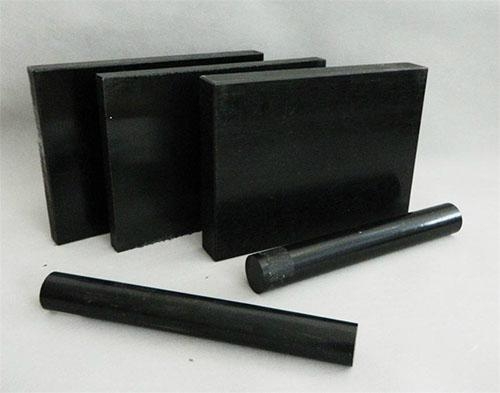

Oil-bearing Nylon sheets/Rods
COLOR:Black
SIZE: SHEET: T X WX L 6-200mm×610mm×1230mm
ROD:Dia. X L 6-150mm×1000mm
DATA SHEET
ITEM METHOD UNIT VALUE
Mechanical Properties
Tensile yield strength GB/T 1040 Mpa 70-75
Modulus of elongation ISO 527 Mpa 3800
Breaking elongation ISO 527 % >25
Max. compressive strength ISO 604 Mpa 90-100
Coefficient of compressibility
ISO 604 Mpa 2400
Bending strength ISO 178 Mpa 90-100
Elasticity bending modulus
ISO 178 Mpa 3000
Impact strength ISO 180 KJ/M2 5.8
Shore hardness GB 3398 Shora D 82-84
Thermal Properties
Melting point ISO 1218 ℃ 220
Max. intermit operating temperature - ℃ 170
Max. continuous operating temperature - ℃ 105
Min. intermit operating temperature - ℃ -100
Min. continuous operating temperature - ℃ -40
Coefficient of linear thermal expansion ISO 11359 10-5-1/K 5-8
Electrical Properties
Dielectric constant IEC 250 - -
Dielectric strength IEC 243 KV-mm -
Volume resistivity IEC 93 Ω.cm 1015
Surface resistivity IEC 93 Ω 1015
Impedance IEC 112 - -
Others
Specific gravity USO 1183 g/cm3 1.15
abrasive resistance
- - 0.15
Coefficient of friction - - 0.19
MC901 SHEETS /RODS
Color:Blue
Size: Sheet:T X WX L 6-200mm×1000mm×2000mm
ROD:Dia. X L 6-150mm×1000mm
DATA SHEET
ITEM METHOD UNIT VALUE
Mechanical Properties
Tensile yield strength GB/T 1040 Mpa 75-85
Modulus of elongation ISO 527 Mpa 4100
Breaking elongation ISO 527 % >25
Max. compressive strength ISO 604 Mpa 90-100
Coefficient of compressibility
ISO 604 Mpa 2700
Bending strength ISO 178 Mpa 100-110
Elasticity bending modulus
ISO 178 Mpa 3300
Impact strength ISO 180 KJ/M2 5.4
Shore hardness GB 3398 Shora D 83-85
Thermal Properties
Melting point ISO 1218 ℃ 220
Max. intermit operating temperature - ℃ 180
Max. continuous operating temperature - ℃ 115
Min. intermit operating temperature - ℃ -100
Min. continuous operating temperature - ℃ -40
Coefficient of linear thermal expansion ISO 11359 10-5-1/K 5-8
Electrical Properties
Dielectric constant IEC 250 - 3.7
Dielectric strength IEC 243 KV-mm >25
Volume resistivity IEC 93 Ω.cm 1015
Surface resistivity IEC 93 Ω 1015
Impedance IEC 112 - CTI600
Others
Specific gravity USO 1183 g/cm3 1.15
abrasive resistance
- - 0.41
Coefficient of friction - - 0.39
