Product Description





We provide small and medium brewery equipment for brewers on home and abroad.

Each of the brewing machine we product will be well welded, polished and tested before shipment.



Before you inquire, please confirm questions below:

1-Capacities from 100 liter to 10000 liter brewery can be chose, what capacity do you need, 100L per batch?

2-What kind of heating source do you prefer, electric, gas or steam?

3-Would you like some other equipment, such as bottle filling and capping machine, keg filling and cleaning machine, steam boiler, beer tower...?

4-What's the voltage in your place?

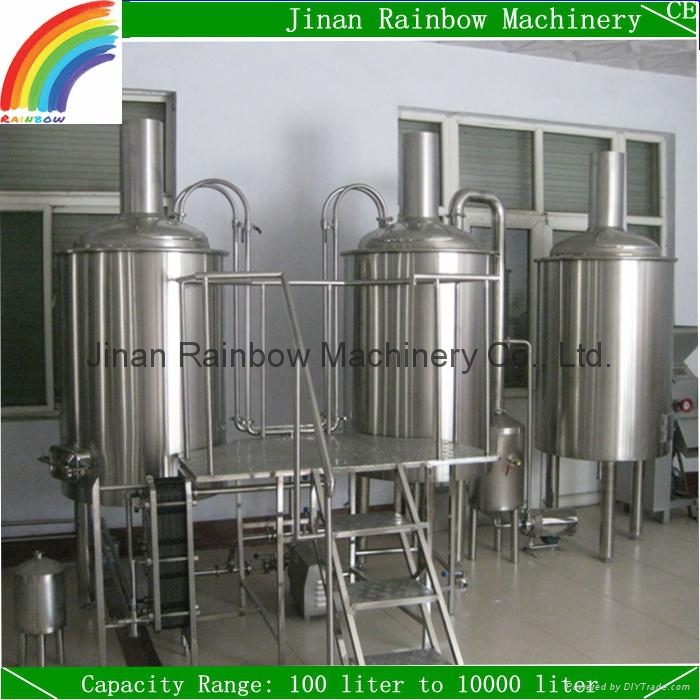

Here follows is the parameter of the 100L home brewing equipment for pub, please check for reference.



Items	Equipment	Specification	Quantity
Malt miller	Malt miller	200kg/hour	1
Brewhouse system	Mash tun&lautering tun	100L	1
	Brew kettle&whirlpool	100L	1
	Hot liquid tank	100L	1
	Wort oxygenator		1
	Plate heat exchanger	2m2	1
	Pump	3t/h	1
	Working platform		1
Fermentation system	Fermenter	100L	6
	Yeast adding tank	10L	1
Cooling system	Glycol water tank	200L	1
	Cooling compressor	3hp	1
	Pump	3t/h	1
CIP washing system	Alkali tank	30L	1
	Sterilization tank	30L	1
	Pump	3t/h	1
Control system	Digital display controlling system		1
Spare parts	All spare parts



Specification of Our Main Tanks

mashing  and fermenting tanks:

Inner wall: 3mm SUS 304; outer wall: brushed SUS 304; insulation: 100mm PU/rock wool; inside polishing 0.4-0.6um dome top with manhole; rotating CIP washing ball; thermowell for temperature sensor and thermometer

cooling tanks: Inner wall: 3mm SUS 304; outer wall: brushed SUS 304; insulation: 100mm PU or rock wool; inside cooling tube

Spare Parts



Our Spare Parts
Pipe line for brewhouse	SUS304
Measuring cylinder	SUS304
Butterfly valve	Ø32
Butterfly valve	Ø38
Sight glass	Ø32
Saccharimeter	0-10; 10-20
Spent grains harrow	SUS 304
Fermenter’s safety valve	ø32
Fermenter’s Sample valve	ø32
Pressure gauge	0-0.6Mpa
Pipe line for cooling unit	SUS 304
Cooling water solenoid valve	ø32
Cooling pipe insulation
Expansion valve for cooling compressor
Control box cable
Signal wire
SIEMENS frequency convertor	V20
Electric relay	Omron
Temperature sensor	PT100



Clients' Country



Germany, Czech Republic, USA, Canada, Russia, Sweden, Paraguay, Singapore, Australia, Finland...



Company Information



We, Jinan MIBE Machinery Co.,Ltd & Jinan Rainbow Machinery are a professional manufacturing and trading company for good quality Beer Brewing Systems, ranging from 100 liter to 10000 liter per batch, which is used for home, Bar/Pub, Restaurant, Hotel and Small Beer Factory.



• Brewhouse System
• Fermentation System
• Cooling System
• CIP System
• Control System
• Filtration System (need or not?)
• Bottle Filing Capping and Sealing Machines (need or not?)
• Keg Filling and Cleaning Machines (need or not?)
• Keg (need or not?)
• Steam Boiler (need or not?)
• Beer Tower (need or not?)



Functions



 1-Brew all kinds of beer: pale beer, brown beer, stout beer....

2-Customize: a. capacity(100L, 200L, 300L, 500L, 1000L, 10BBL, 2000L, 3000L...)

                     b. voltage(220v or 380v or other electricity voltage )

                     c. material thickness(our standard is inner wall 3mm sus 304, outer wall 1.5mm sus304, insulation 100mmPU/ rock wool)

                     d. dimension of all the tanks(length, height, width)

                     e. heating source(electric, steam, direct gas fire heating)

                     f. we can make the tanks as per your design

3-Water and Pressure Test is made before shipment.



Finished Products

  1. equipment images



2. Polishing and Welding



3. Packing and Delivery



4. Factory Image
