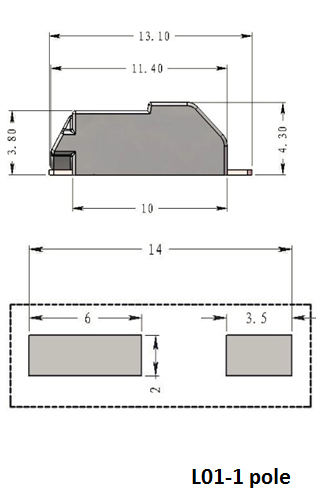

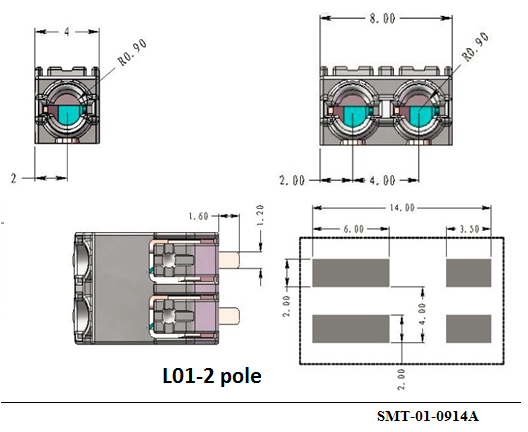

PCB & Surface-Mounted Terminals

PCB & Surface-Mounted Terminals
Model:1P & 2P
Brand:VASK
Origin:Made In China
Category:Electronics & Electricity / Electronic Components / Other Electronic Components
Label:PCB , PCB connector , electronic component
Price: ¥0.6 / pc
Min. Order:1000 pc

Product Description

- With Press-Button for wire-release  or

Easy Push-In of stranded/flexible conductor

- Direct Push-In of Solid conductor

- Compliant with EN60947 / UL1059

- Contact  Spacing : 4mm / 0.157 in

- Standard color : White

Specification

Housing : 94 V0 High-temperature Resistant Thermoplastic

Metal Parts : Tin-plated brass / steel-spring

Voltage/Ampere :

"EN-standard 160V/9A , for 1-pol & 2-pol

UL-standard 600V/9A , for 1-pol

UL-standard 250V/9A , for 2-pol"

Wiring : 0.20-0.75mm² solid/fine stranded

AWG 24-20 str / AWG24-18 sol

Strip Length: 6-7mm / 0.24-0.28 in
