Model: | ZLP800 |
---|---|
Brand: | ACLASS |
Origin: | Made In China |
Category: | Industrial Supplies / Construction Machine |
Label: | ZLP800 platform , suspended platform , climbing platform |
Price: |
US $2900
/ SET
|
Min. Order: | 1 SET |

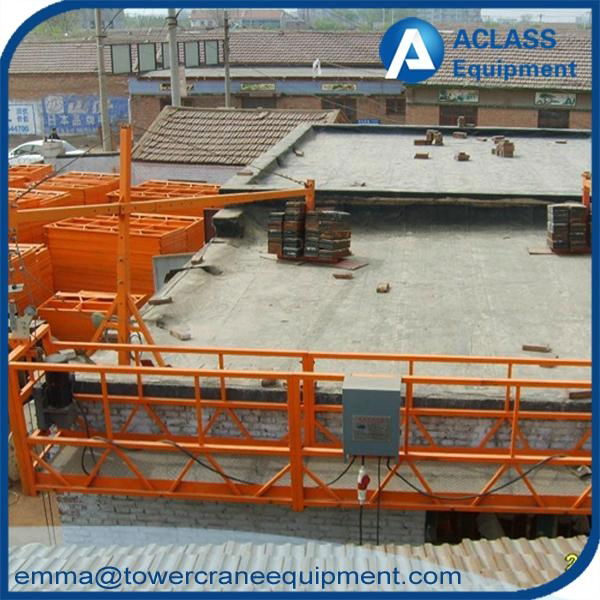

ZLP800 suspended extension for climbing platform Specification |
Name | Technical parameter | |||
Model | ZLP800 | |||
Rated load | 800Kg | |||
Lifting speed | 8-10m/min | |||
Platform Dimension L×W×H(mm) | 7500(2.5m*3)×720
×1300 |
|||
Lifting Height | 100 m | |||
Cable | 100 m | |||
Steel rope | Ф9.1mm | |||
Hoist | Power | 1.8KW*2 | ||
Voltage | 380V/50HZ | |||
Safety lock | Permission force of impact | 30KN | ||
Locking Cable Angle | 3°~8° | |||
Suspension mechanism
Galvanized |
Front beam overhang | 1.3~1.5m | ||
Support adjustable height | 1.44~2.14m | |||
Counterweight includes | 1000kg |
The main Part:
1. Suspension Mechanism and Counterweight
The Height of the platform can be adjusted within 1150-1750mm with arm which can be stretched out and drawn back, it can be widely used parapet and complicated building in different height, and we can also supply customized platform to meet different requirement from the customers
2. Working Platform
Different material for different requests: Steel, Hot galvanized and Aluminum.
Various platform length for clients to choose.
3. Hoist Motor
LTD6.3 “a” shape hoist
4. Electrical Control box
Installed with international and national famous brands electrical components, our electrical control system consists of many protection devices, Such safety devices as electrical leakage protection device, automatic limited switch, overheat protection, emergency brake, current coverload proof, which make operate more easier, safer and reliable.
5. Safety Lock
When the steel wire rope is broken, blocked, slip out of he hoist or the working platform inclines, the safety lock will lock the rope within 100mm, this safety device is high advanced in China now.
Payment Terms: | TT before shipment |
---|---|
