Description:
Future Solar is proud to offer this complete powerful solar lighting system with solar panel, control unit with a battery and cables, connectors and switches. In addition, this system has built-in FM radio and MP3 player, all 100% powered by solar, plus a remote control for your convenience.
The control unit has a built-in battery with an automatic solar charge controller to manage the charging process and prevent overcharging. The solar panel supplied with the system can fully charge this battery within about 7-8 hours of bright sunshine (longer in cloudy weather), and the battery can provide enough energy to power LED lights for continuous 5-6 hours, or twice as long if only two LED lights are connected. The system comes with a fully integrated FM radio and MP3 player powered by the same solar panel / battery. MP3 player can play files from a standard USB drive, SD or MMC memory card. For your convenience the product also includes a little remote control to manage FM radio / MP3 player.

Features:
1.PWM-Controller, all-around protection.
2.Lead-acid battery, Free maintenance store more energy.
3.Clear LED indicator, Show working situation, extend system lifespan.
4.Fine copper plug, Connecting battery & controller simple installation.
5.Fine copper insert, Plug design contact pin easy maintenance.
6.Fine copper wire, Reduce loss.
Advantages:
Solar panel —— environmental &save energy
Inside battery —— never lose power
Mp3 & radio function —— catch every exciting moment
Portable&cute
Remote control
Small size & multifunctional only tiny press

Specifications of the solar panel:
MONO or poly poly
Maximum power(Wp)  15wp
Maximum power voltage(V)  18
Maximum current(A)  0.23
Open circuti voltage(V)  20.5
Short circuit current(A) 0.25
Number of cells(pcs)  36
Size of module(mm) 350*395*18mm
Temperature coefficient of Isc(%) 750
Temperature coefficient of Voc(%) 0.065+/-0.015%/ºC
Temperature coefficient of Pm(%) -(2.23+/-0.1)mv/ºC
Temperature coefficient of Im(%) -(0.5+-0.05)/ºC
Temperature coefficient of Vm(%) +0.1/ºC
Temperature Range  -40ºC~+85ºC
Tolerance Wattage(e.g. +/-5%) +/-5%
Surface Maximum Load Capacity 60m/s (200kg/sq.m)
Allowable Hail Load steel ball fall down from 1m herght
Cell Efficiency(%) >16.2%
Module Efficiency >15.8%
Output tolerance(%) +/-5%
Frame (Material,Corners,etc) Aluminum
FF(%) 73%

Main parameter of the solar system:
1)   Solar panel:18V15W(polycrystalline solar panel with 10m cable)
2)   Battery:12V7AH AGM battery
3)   Controller:12V3A
4)   Led lamps :3W*3pcs(with 5m cable, switch and E27 lamp holder)
5)   Mobile phone charger:1 set
6)   Additional function: MP3&Radio (with remote control)
7)   DC output:5V+12V
8)   Working indicators:
      * Solar charging indicator:red for charging,green for full
      * Battery working indicator:green for working,red for low power
      * 5V output working indicator
      * 12V output working indicator
Working parameter of the solar system:
1)  Fully charging time:7-8 hours (under standard solar radiation)
2)  Full battery capacity: about 65WH
3)  Using time after fully charged:
     · 3W*3pcs LED lamp in set:7 hours
     · 5W mini fan: 13 hours
     ·15W standing DC fan:4.3hours
     · MP3&Radio:20-21 hours
Size and weight:
Size of the system case:230*145*150 mm
Size of the solar panel: 395*350*25 mm
Weight of the system case:4.4kg
Weigh of the solar panel: 2.0kg

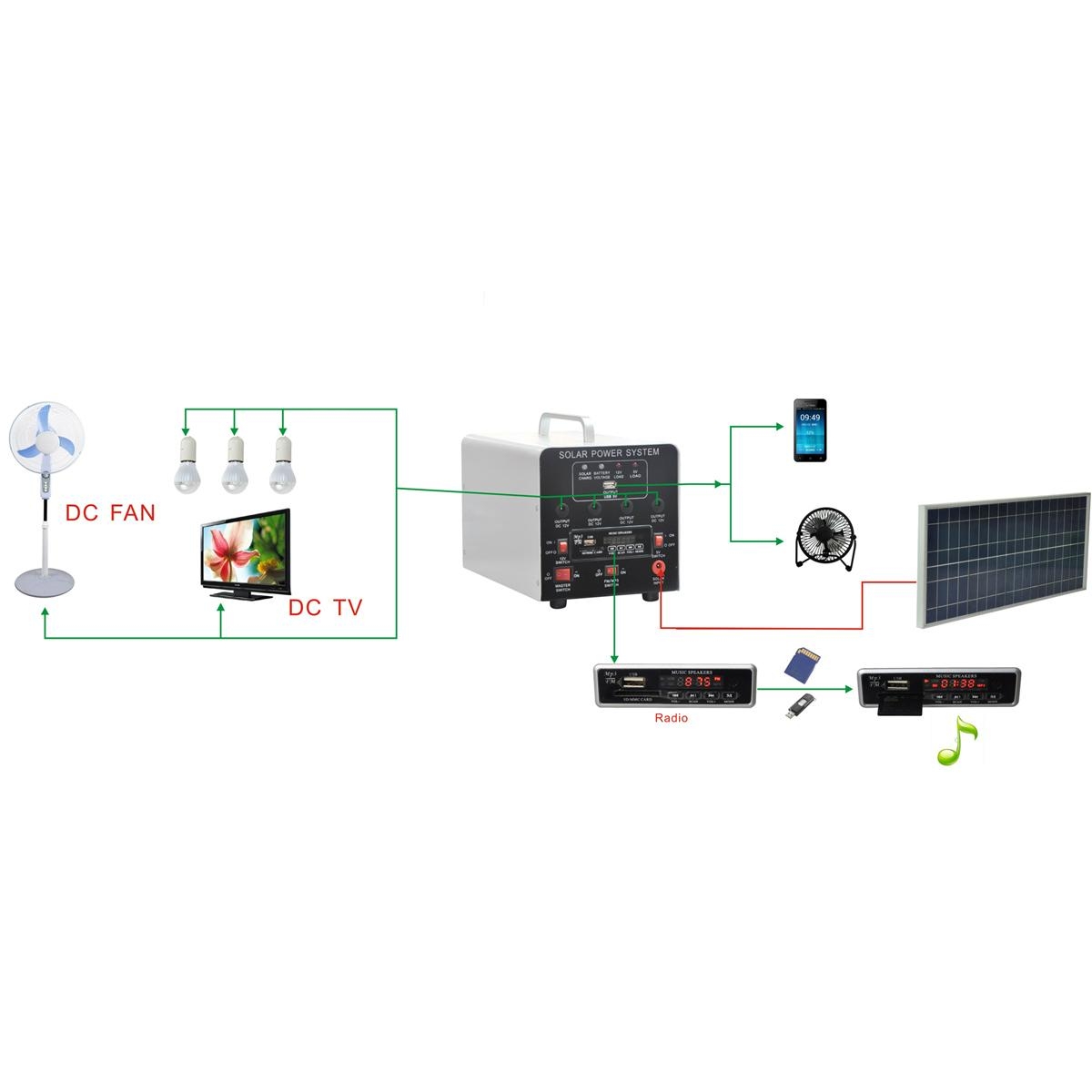

System application:
12V LED lamp charging ,Mobile phone charging, mini fan / DC fan charging,DC TV,  Laptop charging(use laptop adapter)
