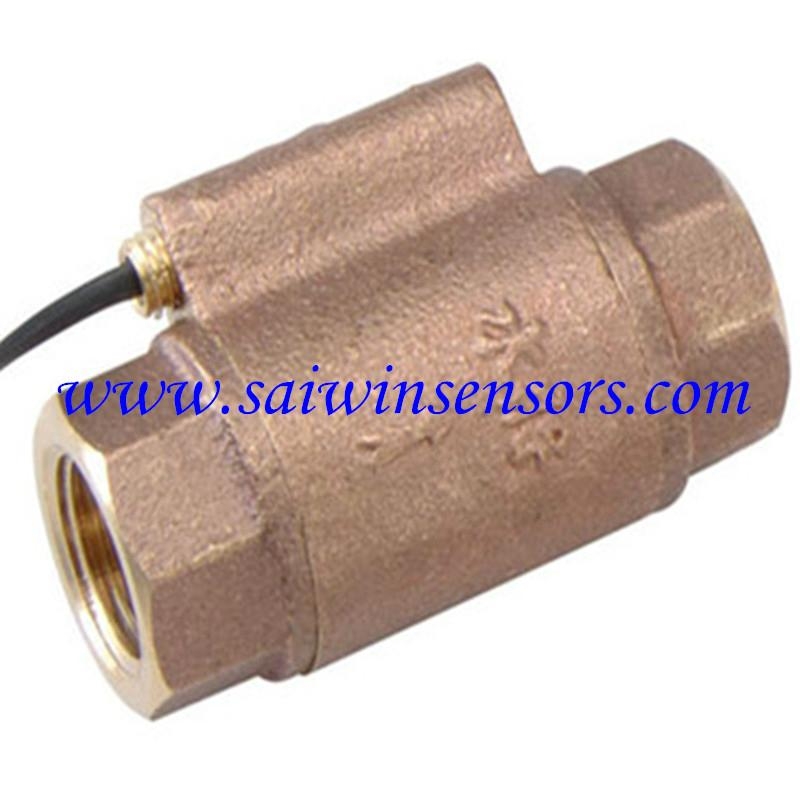

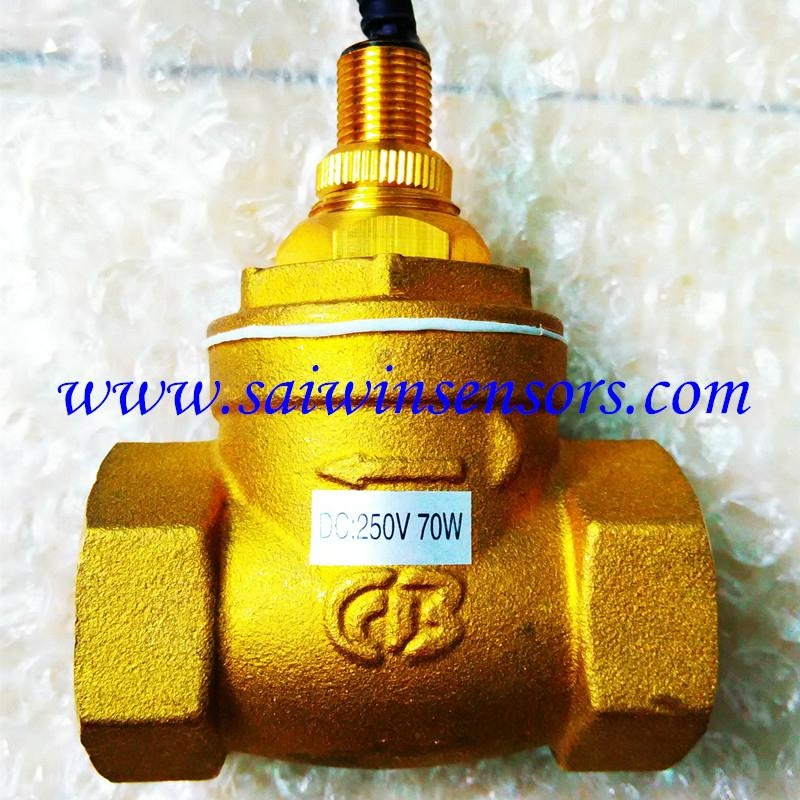

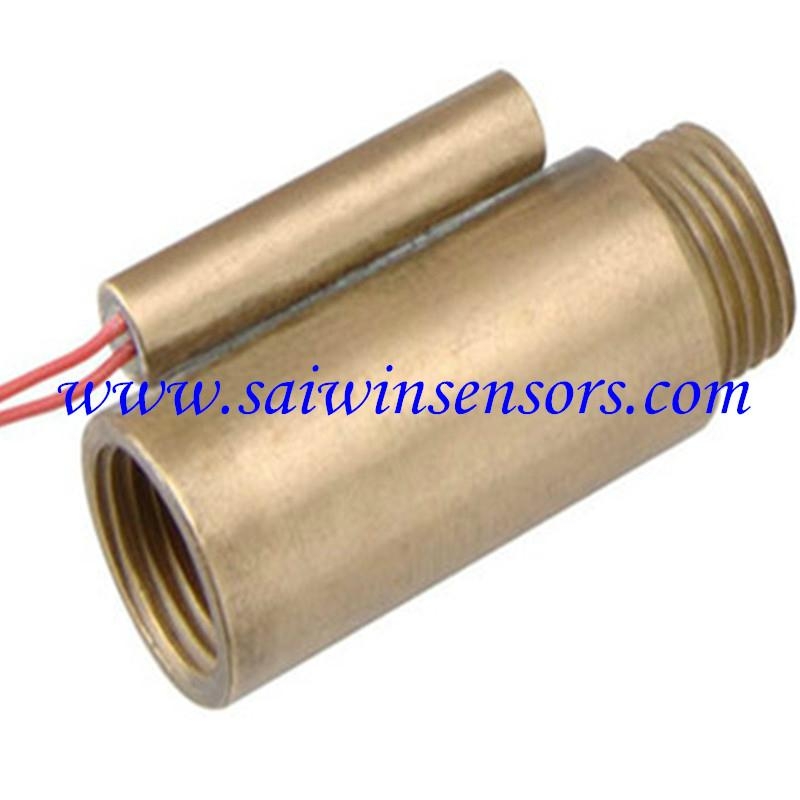

Flow Switch:



Flow Switch is used to sense the flow of a fluid passing through its valve body and to send an electrical control signal to control the switching unit.

In many applications, it is essential to be able to determine whether fluid is flowing in a pipeline, duct or other conduit and to respond accordingly to such a determination.



Flow Switch Feature:

1.Installation: Vertical,Horizonal or Combination of Vertical & Horizonal.

2.Material: PC, Nylon,Brass

3.Min Inductive Flow: 0.8L/M to 16L/M

4.Min Drop Out Flow: 0.5L/M to 10L/M

5.Pressure Ratings up to 4500 PSIG

6.Temperature range: -40^180C

7.Max Reed Switch Carry Current: 1.5A

8.Max Reed Switch current: 1.0A

9.Max Reed switch voltage: 250V AC, 250V DC

10.Max Reed switch power rating: 70VA

11.Set point accuracy: ±10% max

12.Set point difference: 10%

13.Repeatability: ±2% max

14.Mounting thread: Female or Male thread G1/2",BSP 2", BSP 1", BSP      3/4", BSP 1/2", 14G 7/16



Flow switches Application:

Water Heater,

Air-Condition,

Drinking Machine

Sewage Disposal

Liquid Circle System

Other Equipments to avoid motoring& boiling without water and unsafe problem
