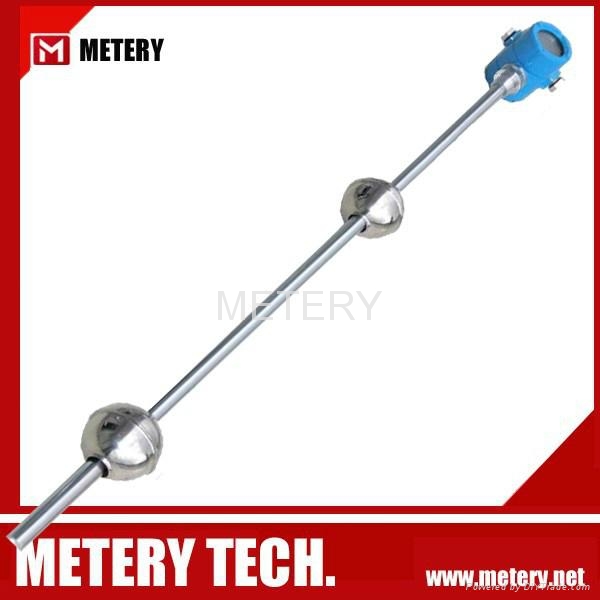

Magnetic Ball Floating Oil Level Transmitter



   Two wires 4-20mA Ex-proof intelligent Magnetostrictive level sensor, adopts magnetostrictive

principle, high accuracy, anti-static, anti-thunder, anti-pulse interfere design. Satisfying the related

 standards of industrial control.







Principle of our  24VDC 220VAC Magnetostrictive level transmitter level sensor



Display head



Main parameters

Datas	MT100ML
Power	DC13-26.5V
Output	4-20MA
Resolution	L/65536
Accuracy	1mm
Ambient	-40 to 85 Deg.C
Pressure	-0.05 to 0.6Mpa
Connection	3/4" NPT
Flex probe material	PVC,SS304,SS316
Ex-proof	ExiaIICT6
Display	Field display



Overall structure



Installation diagram







Adjustment and Maintenance

  Should proceed field liquid level height calibration before use, should be repaired by professional worker when problem happen, return to us for repair when damaged.

   The calibration of level height by press the key of "+" and "-".

Note: when liquid level change, mA output still, press resetting key, repowered.



Notes

A. Blind zone can enlarge upon the requests of users

B. When pressure exceeds 0.6Mpa, should choose high pressure type

C. When temperature exceeds 85 Deg.C, should choose high temperature type

D. If for corrosive or acid liquid measure, PTFE optional

E. When equipped magnetic flap for remote signal output, should provide the floating ball.

F. Multi-functional 4 wires 4-20mA type, can add interface signal and temp.signal, must be informed before order.
