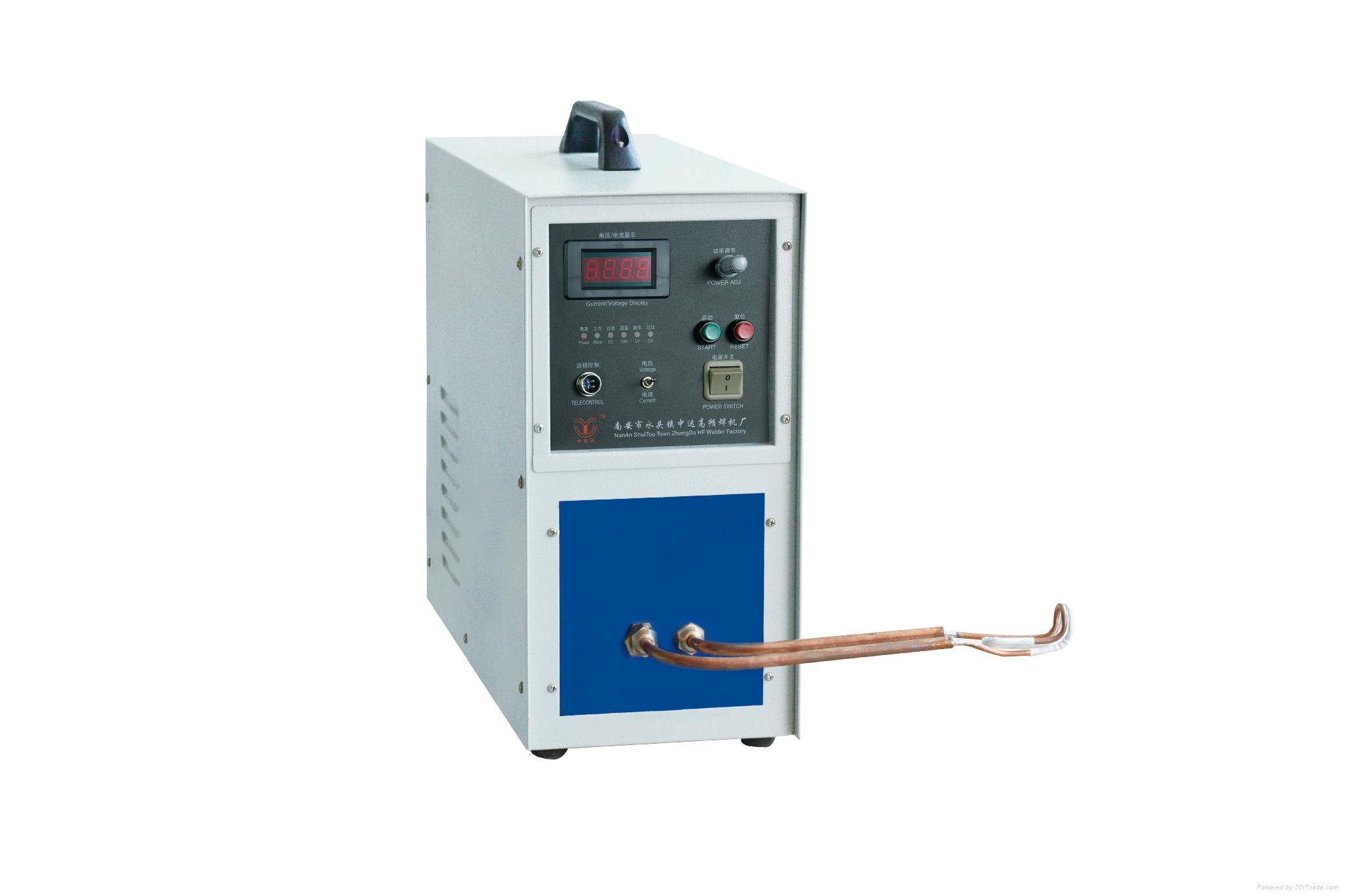

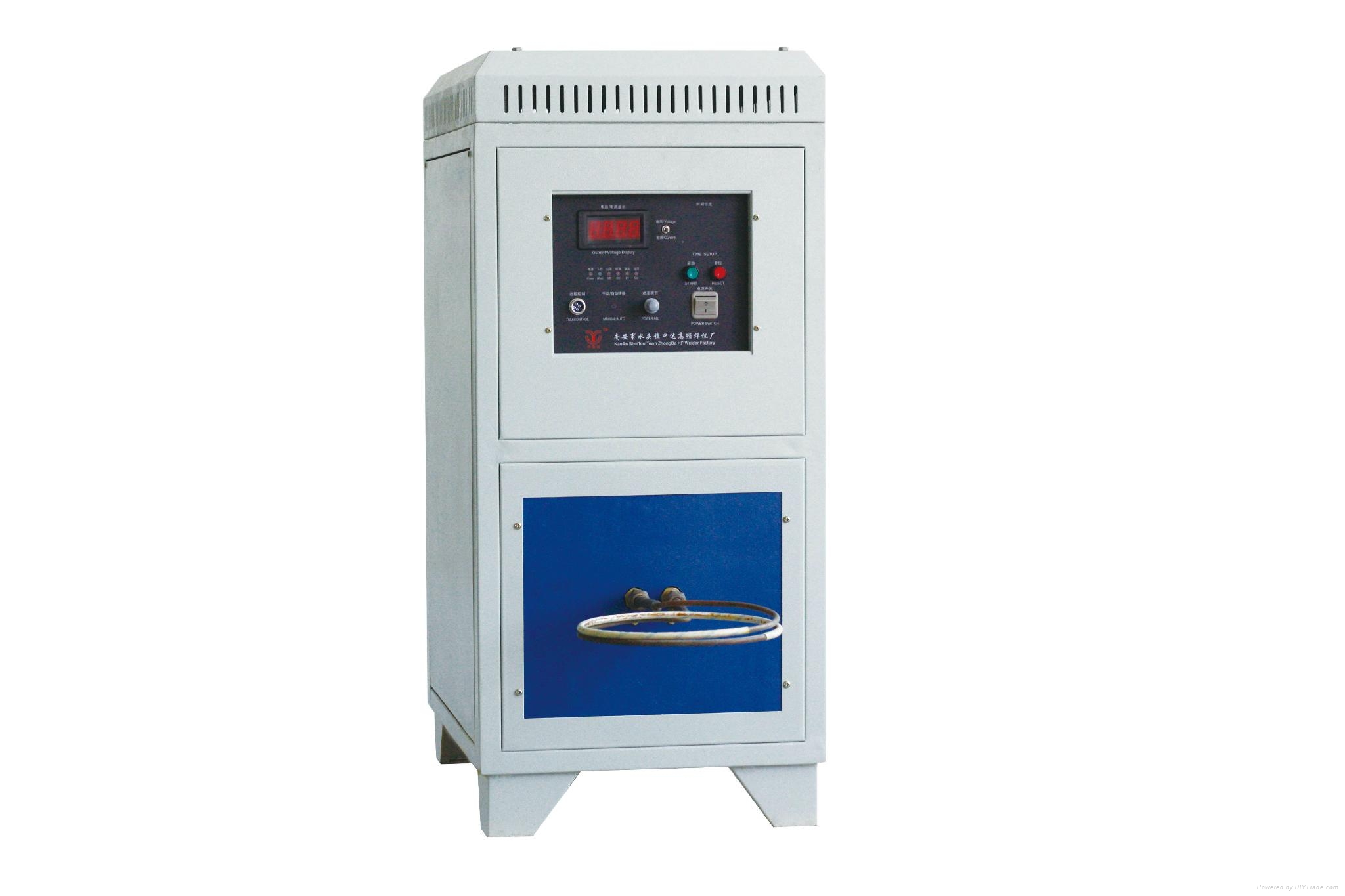

High frequency induction heater in brazing diamond tools

High frequency induction heater in brazing diamond tools
Model:ZHY-GP-20
Brand:ZHY
Origin:Made In China
Category:Industrial Supplies / Machinery / Welding Machinery
Label:Induction heating , generator , welding machine
Price: US $600 / pc
Min. Order:1 pc

Product Description

Basic Info:

Model: ZHY-GP-20   Voltage: 220V

Efficiency: 90%     Oscillating frequency: 50~150KHz.

Duty Cycle: 90%   Oscillating power: 32KW

Temperature protection: 50℃     Cooling water pressure: 0.1~0.3MPa

Trademark: ZHY                          Warranty: one year

Certification: CE                    HS Code: 85144400090

The whole set including:

1. One generator  2. two induction coils   3. one foot switch

4. One manual       5. One warranty card

Model: ZHY-GP-20
Input AC Three phase 380V
Operating voltage range 340~440V
Maximum oscillating power 20KW
Oscillating frequency  50KHz~150KHz
Cooling water pressure 0.1~0.3MPa
Net weight 24Kg
Dimension 51*19*39cm
Temperature protection 50℃

High frequency machine features

1.High frequency induction heating machine adopt MOSFET. High frequency, energy saving and steady.

2.Heating speed is fast and high efficiency.

3.Only heat the part need to be heated, little distortion.

4.Short heating time. There is no oxide layer on the surface of the workpiece.

5.Easy operation, good working environment and no pollution.

6.Control heating temperature and heating time easily. Ensure heating quality and could achieve line production.

High frequency induction heater in brazing diamond tools 1High frequency induction heater in brazing diamond tools 2High frequency induction heater in brazing diamond tools 3High frequency induction heater in brazing diamond tools 4High frequency induction heater in brazing diamond tools 5
