Specifications

1. couple with Lovol engines
2. Rated Power: 20-108KW
3. CE, ISO9001 approved
4. 12 months wanrranty

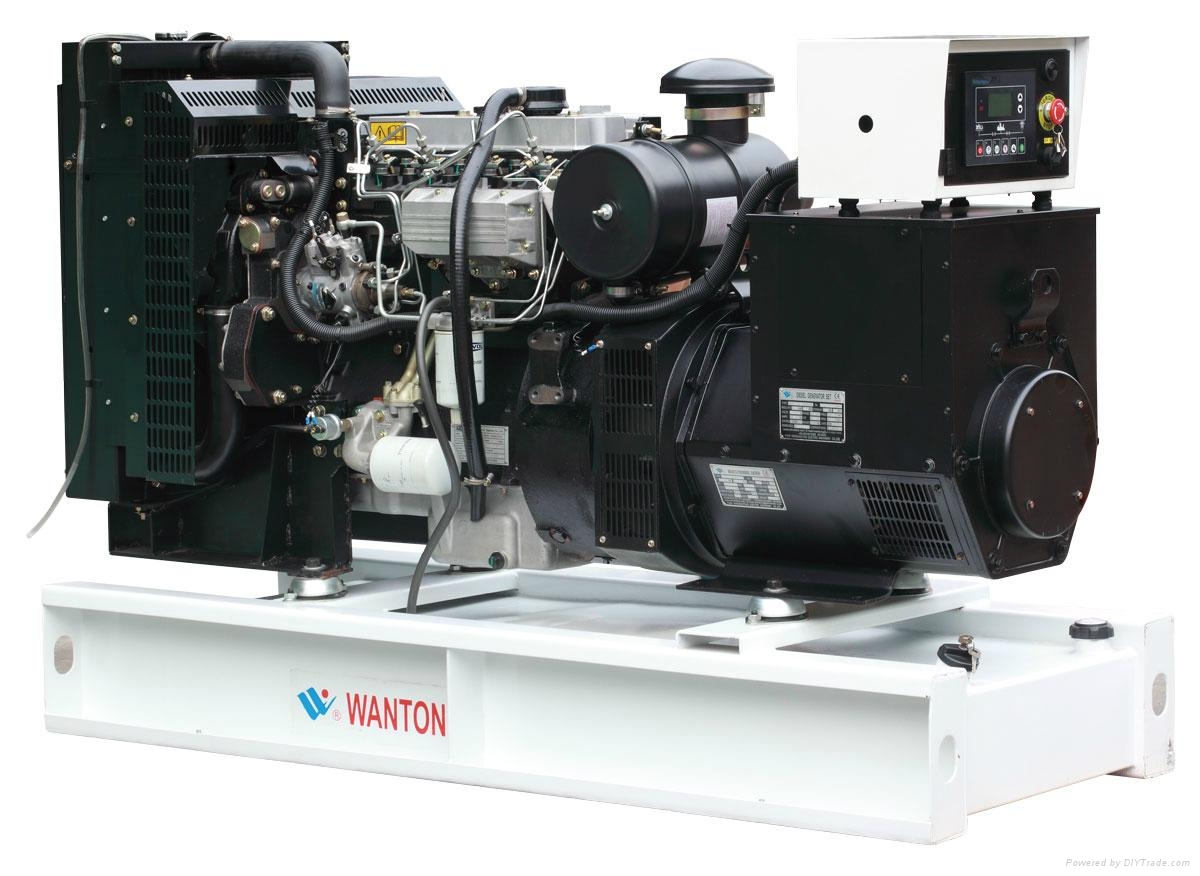

Diesel Generator Set with Lovol  Engine



1. LOVOL engine

Detail feature:

1) High Density of Power: Higher power output than other competitive engines at close displacement

2) Low Fuel Consumption: Adopted European patent Quadram combustion chamber which can reduce fuel consumption, emission and noise, meanwhile raise engine power.

3) Good Cold Start Performance: Started normally at -10°C without preheater, started smoothly at -25°C through flame preheating cold start device, meanwhile -40°C start solution is available.

4) Higher fuel economy: Optimized the combustion system and fuel supply system ensure the accuracy of the fuel amount of every cylinder, increase the fuel utilization.

5) Structure: The whole structure is impact and simple which is characterized by small cubage, light weight, small vibration, low noise, good durability. It has Stability & Reliability of engine performance, and get good market feedback.



2. Alternator

Engine can be coupled with WT series A.C.synchronous brushless alternator.

It can also be matched with STAMFORD,LEORY SOMER, MARATHON alternator.

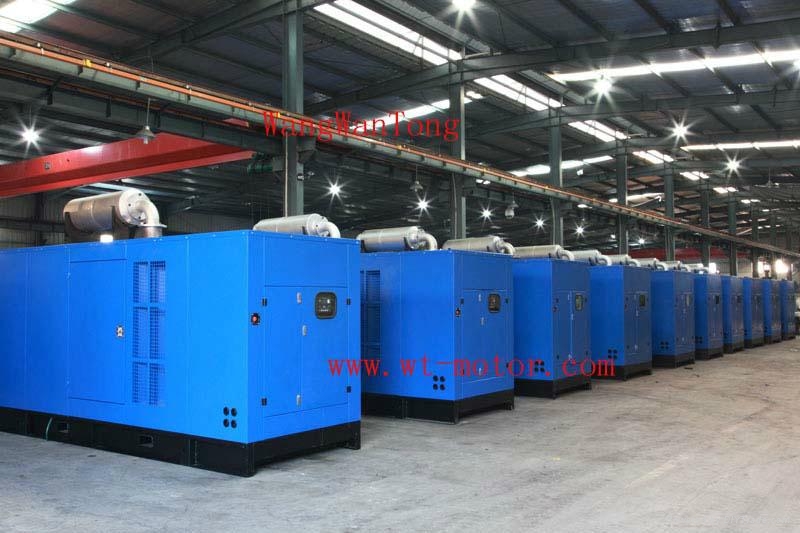

Gensets can be open type or soundproof (silent) type.



Gensets’ electric performance

Gensets compliance with all main standards,such as: GB/T2820, ISO8528, IEC34,VDE0875-N

Prime output power: 20kw-108 kw(25kva-135kva)

Rated voltage: 400/230v, 440/254v, 220/127v, etc.

Phase/connecting method: 3 phase 4wire/Y type connection

Rated frequency: 50/60hz

Rated speed: 1500/1800rpm

Excited type: Brushless, self excited or PMG

Insulation: Class H

Protection: IP22

Voltage regulation: AVR automatic control

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%



Controller system

1.Standard control panel, including voltmeter, frequency meter, ampere meter,water temperature gauge, oil temperature gauge, oil pressure gauge, AMF control module, oil level indicator, emergency button, preheating button, battery voltage gauge, hours running counter for protection and transfer.

2. It can be with ATS electric control cabinet, including circuit breaker,  LCD or LED auto controller, indicating lamp, transfer switch,etc..Automatic transfer switch (ATS) uses update technology, which can be automatic control for on-off electricity, remote monitoring,automatic parallel operation, etc.
