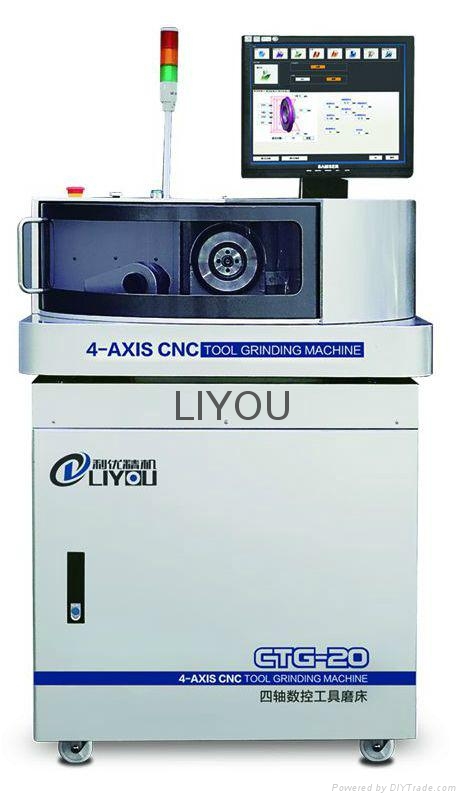

CTG-20 4-Axis CNC Tool Grinding Machine
| Model: | - |
|---|---|
| Brand: | LIYOU |
| Origin: | - |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | cnc machine , machine tool , cnc grinding |
| Price: |
US $19000
/ SET
|
| Min. Order: | 1 SET |
Product Description
(The best choice for tool&cutter produce and resharpen)
PRODUCT ADVANTAGES
1. 3D graphics interface, easy to use, parameters can be modified according to the customer’s requirements.
- Independent developed four-axis linkage operation system.
- Customer-made software functions for specific tool, meet different needs.
- Software upgrades is simple, easily enjoy free upgrade service through USB.
- Cooperate with slot machine, this machine can produce milling cutter and drills which can reduce the equipment investment.
|
Main fuction |
Tools |
End mill, Drill,Tap, Reamer, Chamfering... |
||
|
Applicable |
Fai 1.5-fai 20mm |
|||
|
Tools length |
35-200mm |
|||
|
Longest blade |
90mm |
|||
|
Material |
carbide HSS |
|||
|
Product parameter |
Power |
220V 1.1KW 50/60HZ |
||
|
Dimensions |
880*900*1560 |
|||
|
Weight |
350KG |
|||
|
Tools detection |
Contact probe detection with high precision |
|||
|
Cutting oil |
Water-insoluble grinding oil |
|||
|
Rail oil |
(ISO VG32) |
|||
|
Cutting oil pump |
24L/M Maximum output flow |
|||
|
Grinding wheel spindle |
Motor |
600W |
||
|
peed |
500、3000、4000、6000 |
|||
|
Max peripheral speed of grinding wheel |
36m/S |
|||
|
Control shaft |
Stepping motor for 4 axis |
Drive mode |
Route |
Position control resolution |
|
X axis |
Ball screw direct drive |
300mm |
0.002mm |
|
|
Y axis |
Ball screw direct drive |
130mm |
0.002mm |
|
|
C axis |
Ball screw direct drive |
-5°~180° |
0.002mm |
|
|
A axis |
Ball screw direct drive |
∞ |
0.02° |
|
The function can be made according to customer needs, only need to update software.
Tools applicable
|
End mill |
|
|
Main function |
Grind end mill, slotting, side blade, R angle&C angle mill |
|
Flutes |
2、3、4 |
|
Helix angle |
0°-60° |
|
Relief angle |
1°-12° |
|
Second relief angle |
11°-20° |
|
Inclination angle |
0°-5° |
|
Front angle |
0°-5° |
|
Drill |
|
|
Main function |
Grind the cutting edge, chisel edge, chisel edge R angle, cutting edge C angle of plate&cone drills |
|
Drill flutes |
2、3 |
|
Helix angle |
0°-45° |
|
Apex angle |
60°-180° |
|
Relief angle |
0°-15° |
|
Second relief angle |
11°-20° |
|
Radial angle |
5°-65° |
|
Front angle |
±5° |
|
Chamfer angle |
25°-80° |
|
Chamfer width |
0.05-6mm |
|
Reamer |
|
|
Main function |
Grind guide blade, side blade and end blade of direct blade & screw reamer |
|
Groove |
4、6、8 |
|
Helix angle |
-20°~30° |
|
Relief angle |
2°-10° |
|
Length of guide blade |
0.1-2mm |
|
Apex angle of guide blade |
20°-45° |
|
Relief angle |
3°-20° |
|
Tap |
|
|
Main function |
Grind front guide blade, end and front cone of direct blade tap & screw tap |
|
Groove |
2、3、4 |
|
Helix angle |
-20°~45° |
|
Relief angle |
2°-10° |
|
Chamfering |
|
|
Main function |
Grind cutting blade, slotting and end blade |
|
Flutes |
2、3、4、6 |
|
Apex angle |
60°-150° |
|
Relief angle |
1°-10° |
