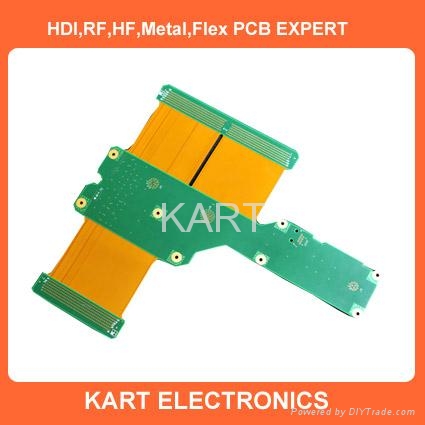

20 layers rigid-flex pcb

Model:	CDRF-2
Brand:	-
Origin:	Made In China
Category:	Electronics & Electricity / Electronic Components / Circuit Board
Label:	rigid-flex circuit , multilayer pcb , complex pcb
Price:	US $10 / pc
Min. Order:	1 pc

Product Description

Layer：20L layer(6R+8F+6R)

Min line width：0.15mm

Min line gap：0.15 mm

Min via：0.45mm

Min distance between PTH hole and line in inner layer：0.30 mm

Aspect ratio：6.7

Copper weight：outer layer≥48um, PTH copper≥30um

Board thickness： 3.00±0.30 mm

Finish：ENIG

Panel size：264.0 * 306.0 mm

Impedance ：100 ± 10%
