Specifications︰

with four cercles on the panel;
"V" tape panel on the top and razor wire to make it impossible to go through the fence.

Advantages︰

Simple structure, artistic and practical; high strengh, wide view; easy installation, bright and comfortable feeling.

Export Markets︰

military place ,airport , high security place

custom_attr9︰

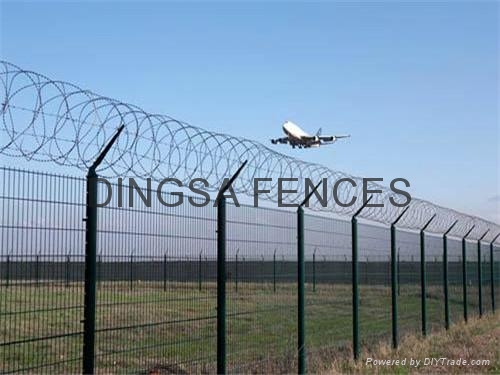

Airport fence
 All the panel use 5.0mm strong carbon steel wire to be welded
 Mesh size:50x100mm or 50x200mm
 This panel have V-beam that can enhanced the unti-wallop.
Post is 60x60mm square tube.The top will be welded V type support or use 70x100mm hook style post.
This products is all hot dipped galvanized and then electrostatic powder coated.

The color will be used international common RAL.

Reference Number

Blade Style

Thickness

Wire Dia

Barb Length

Barb Width

Bard Spacing

BTO_12

0.5±0.05

2.5±0.1

12±1

13±1

26±1

BTO_18

0.5±0.05

2.5±0.1

18±1

15±1

33±1

BTO_28

0.5±0.05

2.5

28

15

45±1

BTO_22

0.5±0.05

2.5±0.1

22±1

15±1

34±1

BTO_65

0.5±0.05

2.5±0.1

65±1

21±1

100±2
