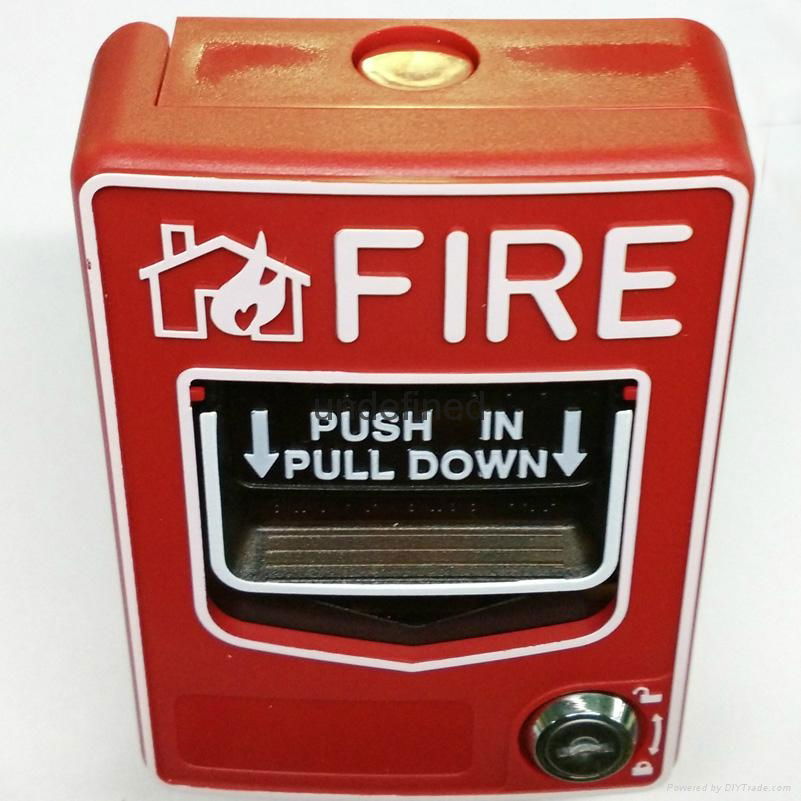

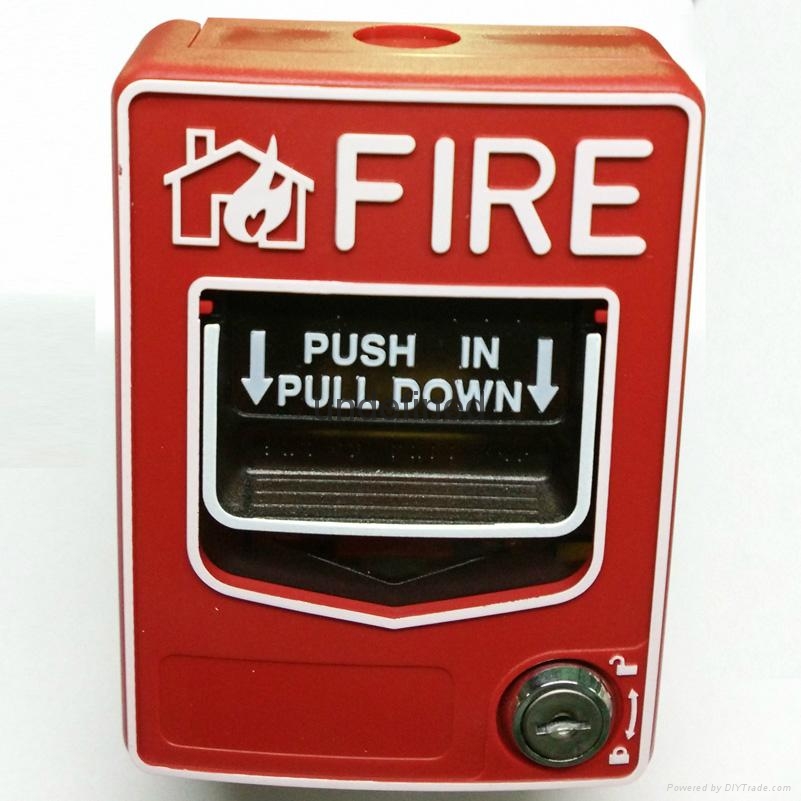

General Description Features and Benefits Compatible with all the conventional fire alarm control panel Can be reset by key without use a new glass 470 Ohm resistance Easy surface mounting Base included Tough and Reliable with Great Looks at a Low Cost Conventional Manual Call Point The conventional manual call point designed for conventional fire alarm system for reporting fire or emergency condition by pull down the plate. The manual call point can be reset by a special key without breaking the glass.

Technical Specifications
Ordering Information
Individual(1 units)
Dimensions
(w x d x h millimetres) Weight
140x105x45 220g
Dimension: 140mmX105mm
Height: 45 mm
Weight: 220 g
Operating Temperature Range: -10°C to 50°C
Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
Latching Alarm: Reset by momentary power interruption
Top Side
Electrical Ratings
System Voltage (nominal): 24 VDC (9V~ 28VDC)
Standby Current: 60 μA @ 24VDC
Alarm Current: 10~30 mA @ 24VDC
