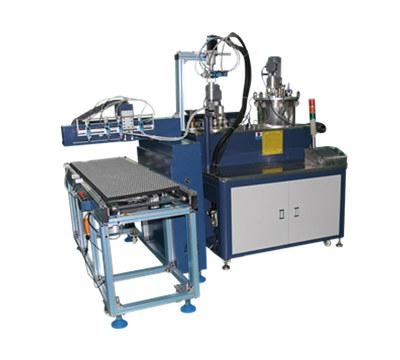

Fully Automatic Glue Dispensing Line

Applications：Capacitor, power supply, transformers, ignition coil, ballast, junction box, inductance coil, circuit board

Suitable Material：Suitable Material: AB two-component glue , Silicon , Epoxy, Polyurethane ,Crystal

Features

1. It is fully automatic unattended operation with accuracy metering which can achieve adhesive glue integration and automatic positioning feeding.

2. Mix glue A&B evenly .

3. Precise movement with high speed and easy adjustment;

4. Can be universally used for different product such as Capacitors, transformers, power supply, reversing radar, circuit board and so on

Technical Data

Working Area: 500*500*30mm, Customization is available based on clients’ requirement.

Mixing Method: Static/Dynamic optional

Running Path: Machine can make dot, circle, pulse signal etc.

Moving Speed:0-300mm/s

Repeatability:±1%

Mixing Accuracy:±1%

Tank Capacity: Tank A25L、Tank B25L,Customization is available based on clients requirement.

Ratio: 1:1 - 1:10

Gluing Speed:5-66g/5s adjustable

Air Pressure:0.5-0.7Mpa

Power Input: AC220V 50-60Hz

Dimension:5000*1100*1500mm

Weight: 550KG Roughly
