swing gate operator
| Model: | ZK1800 |
|---|---|
| Brand: | XIANFENG |
| Origin: | Made In China |
| Category: | Security & Protection / Locks |
| Label: | swing door operator , automatic door opera , automatic motor |
| Price: |
¥1
/ pc
|
| Min. Order: | 1 pc |
Product Description

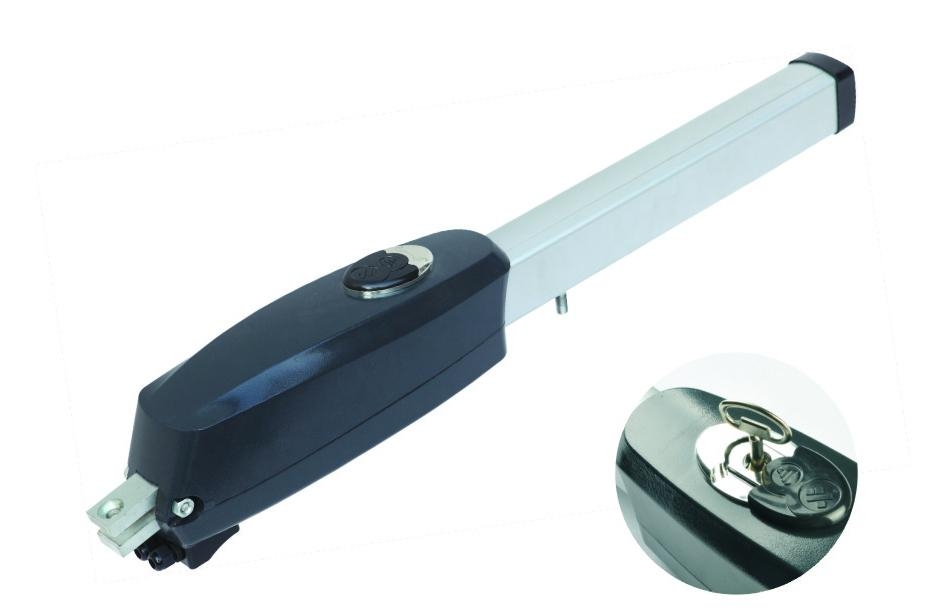

ZK1800 Swing gate operator
Main features
Worm screw driving, powerful & smooth.
Aluminum body, quality painted.
Water-proof design.
Simple & safe release by special key.
Two pieces of blocks are provided to prevent the door over travelling.
Built-in mechanical limit switch, easy for adjustment.
Electric lock 12V DC.

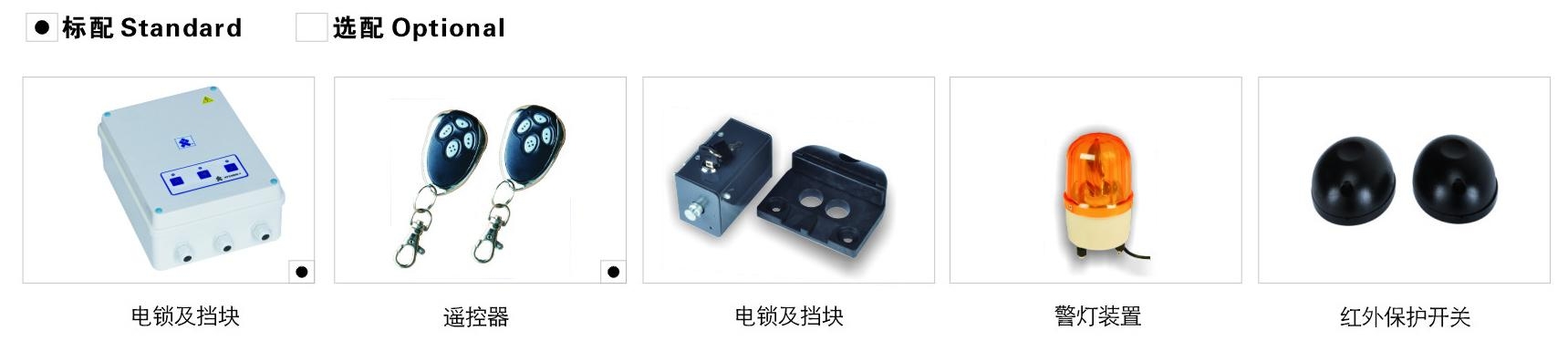

Available for button switch, keypad, photocells and alarm lamp.
It also can be used as Linear Actuator, max. travel 330mm.
Comply with industry standard of the ministry of construction of the people 's republic of china 'Sliding & Swing gate opener.
Technical table
Power supply |
AC220×(1±10%)V, 50Hz |
| Rated force | 1800N |
| Maximum force | 3000N |
| Working angle of gate | 90° or 105° |
| Max. gate section weight | 617 lbs. (280kg) |
| Max. gate section width | 9.8 feet (3 meters) |
| 90° opening or closing time (one gate leaf) | 18 seconds |
| Cycles per hour (20ºC) | ≤15 |
| Motor thermal protection | 120ºC |
| Ambient temperature | -20ºC~+50ºC |
