New design golden style competitive Delphi DS150E VCI with LED 3 in 1 with 2014.2 software with keygen and NO bluetooth ds150 + carton box



● Newest software 2014.2 with keygen and without bluetooth ds150 + Paper box (can choose plastic box)



FEATURES & BENEFITS

Can be connected by Bluetooth

White interface (delphi ds150e quality A)

LED obd cable

USB cable + DVD



The For delphi ds150e is a diagnostic tool used with a PC or Pocket PC and powerful CARS Diagnostic software, making it a powerful and flexible tool for all vehicle shops, fleet owners, vehicle testing, road service, police and armed forces.

Software: Newest software 2014.2 with keygen



● delphi ds150e for Cars & Trucks & Generic 3 in 1

Full Translate Language:

English , Cesky, Dansk, Deutsch, Espanol, Francais, Greek, Hollands, Hungarian, Italiano, Norsk, Polish, Romania,Russian, Srpski, Suomen kieli, Svenska, Turkish



Delphi ds150e is a quick and reliable diagnostic tool serving as a link between vehicle and computer. It works on both old and new vehicles.

With CARS, you are able to perform brand specific diagnostics for cars and light vans from 1988 onwards. A total of 47 different brands. With TRUCKS software package, you are able to perform brand specific diagnostics for light and heavy commercial vehicles, buses and trailers from 1995 onwards.

A total of 37 different brands. The diagnostic program GENERIC is designed for the legislation based diagnostics, specially targeted for emission related fault codes. GENERIC is included in CARS and TRUCKS packages.

Multiplexer function, 2xHS CAN (ISO 11898-2), SW CAN (SAE J2411), K/L (ISO 9141-2), VPW (J1850), PWM (J1850), RS485 (J1708), TTL and (SPI, analog in, 5volt out).



FLIGHT RECORDER

With the flight recorder function, you can record parameters in real time while you are driving a vehicle. During recording, you can, with a press of a button, highlight the specific error so that you can investigate the detected error at a later time. TCS+ is equipped with built-in memory thus removing the need to bring a computer. Memory cart not include in package .

MULTI COLOUR INDICATOR

With the multi colour indicator on TCS+, you have full control of the diagnostic process. Different colors and sound communicates the status and the placement of the indicator allows you to see it from a far. For example, if the indicator alternates between blue and green the TCS+ is in communication with the vehicle control unit.

CONNECTOR WITH LED

To locate the diagnostic connector in the vehicle with ease, even if it’s located in a dark and inaccessible place, there is a LED on the 16-pin connector to help you along. The location and the design allows the light to function even when using the adaptor cable for vehicles without a 16-pin diagnostic socket.

VOLTAGE CHECK

When TCS+ is connected to the vehicle, the unit will check the battery voltage of the vehicle and automatically adjusts itself to the vehicle’s voltage level of 12 or 24 volts. If the voltage gets too high or too low, TCS+ will warn you with both sound and light and you will also be alerted through the battery icon in our diagnostic software.

CHASSIS NUMBER VIN

In our CARS software, we have a smart function that allows you to read out the chassis number from the vehicle that you would like to diagnose. This ensures that the right model and year is selected automatically. In addition, engine code for vehicles, which are commonly available on the markets, is also selected automatically.

ISS

Intelligent System Scan (ISS) scans through all the systems in the vehicle and displays the fault codes that are stored in each system. This saves time and you get a quick overview of the actual status of the entire vehicle. When the ISS is complete, you can then select a specific control system to analyse the results further on.

ISI

Intelligent System Identification (ISI) identifies and selects automatically the type of controller that is mounted in the vehicle. This ensures that the diagnostic session is performed correctly with the correct parameters as required.

REPORT FUNCTION

Under this function tab, you will be able to see the adaptations and adjustments that are possible for a specific vehicle without having the vehicle near you. Together with the help texts as a guide, you can plan and be effective in your work; even under complex situations.

OBD-FUNCTIONS

TCS+ is equipped with an unique multiplexer technology, which allows it to be used on all types of vehicles, regardless of voltage levels and communication standards. For those vehicles that do not use the standard 16-pin connector, we offer a complete set of certified and customized adapter cables and kits.

UNIVERSAL

For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform

HELP FUNCTION (with Bluetooth)

For most OBD functions, such as adjustments and programmings, there are detailed instructions and help texts to assist you in your diagnosis work. You will find step by step information about prerequisites, preparation and implementation of various functions; making even the most complex function simple to perform.

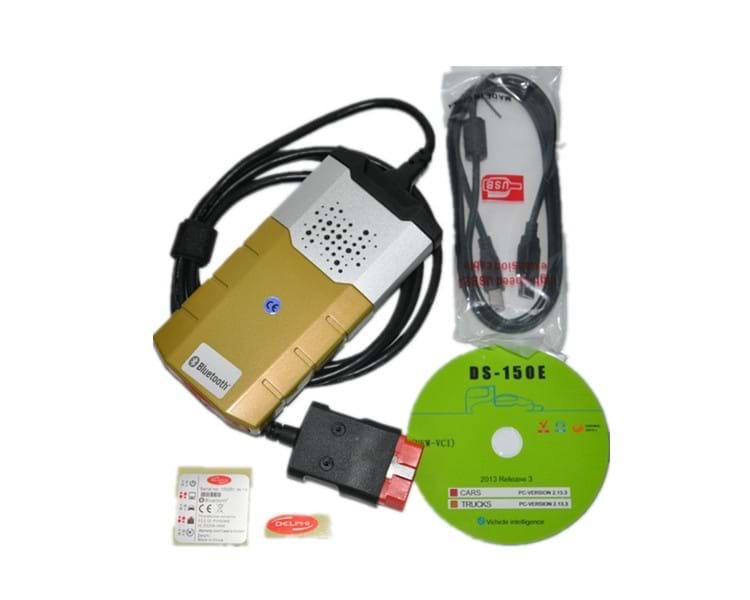

Package including:

1pc x delphi ds150e with OBD2 cable

1pc x USB Cable

1pc x CD
