Sand Pump for drilling mud solids control

Model:	SB
Brand:	GSSY
Origin:	Made In China
Category:	Industrial Supplies / Mining Machine
Label:	Sand Pump , drilling sand pump , Fluids sand pump
Price:	US $3000 / pc
Min. Order:	1 pc

Inquire Now

Product Description

Sand Pump

Details

Place of origin: Hebei, China

Brand Name：GSSY solids control

Mode Number: SB

Use: oilfield solids control

Certification: ISO

Warranty: 12 months

After-sales Service Provided: Engineers available to service machinery overseas

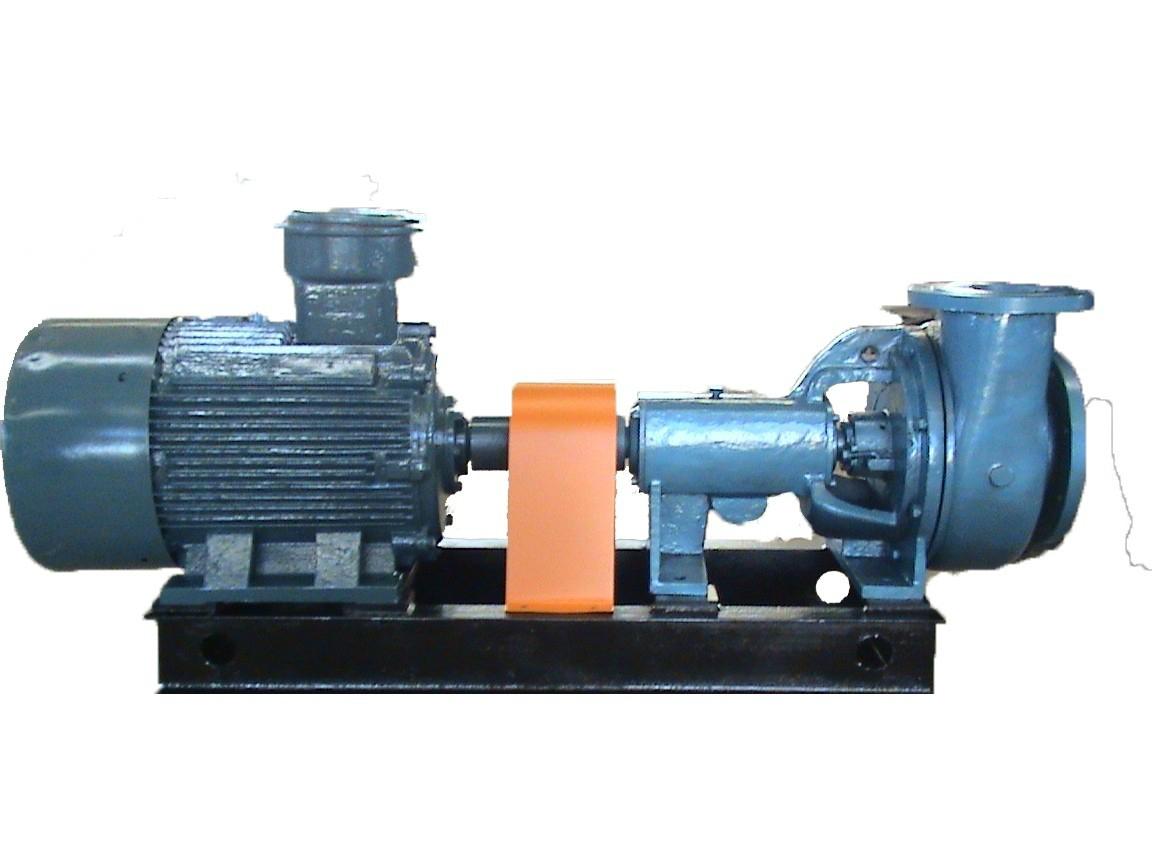

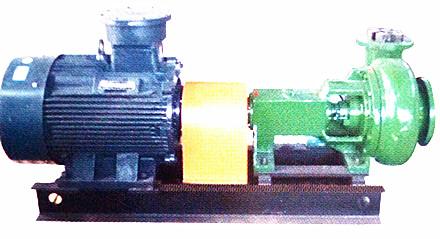

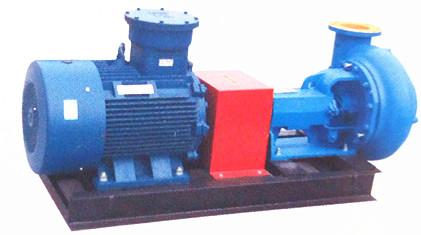

Sand Pump a kind of Horizontal centrifugal pump used in HDD solids control
Low price, High quality, on time delivery, Manufacturer

Sand Pump used in drilling fluid solids control. It is the ideal equipment to provide impetus for desander and desilter.

SB series Sand Pump Technical Parameters

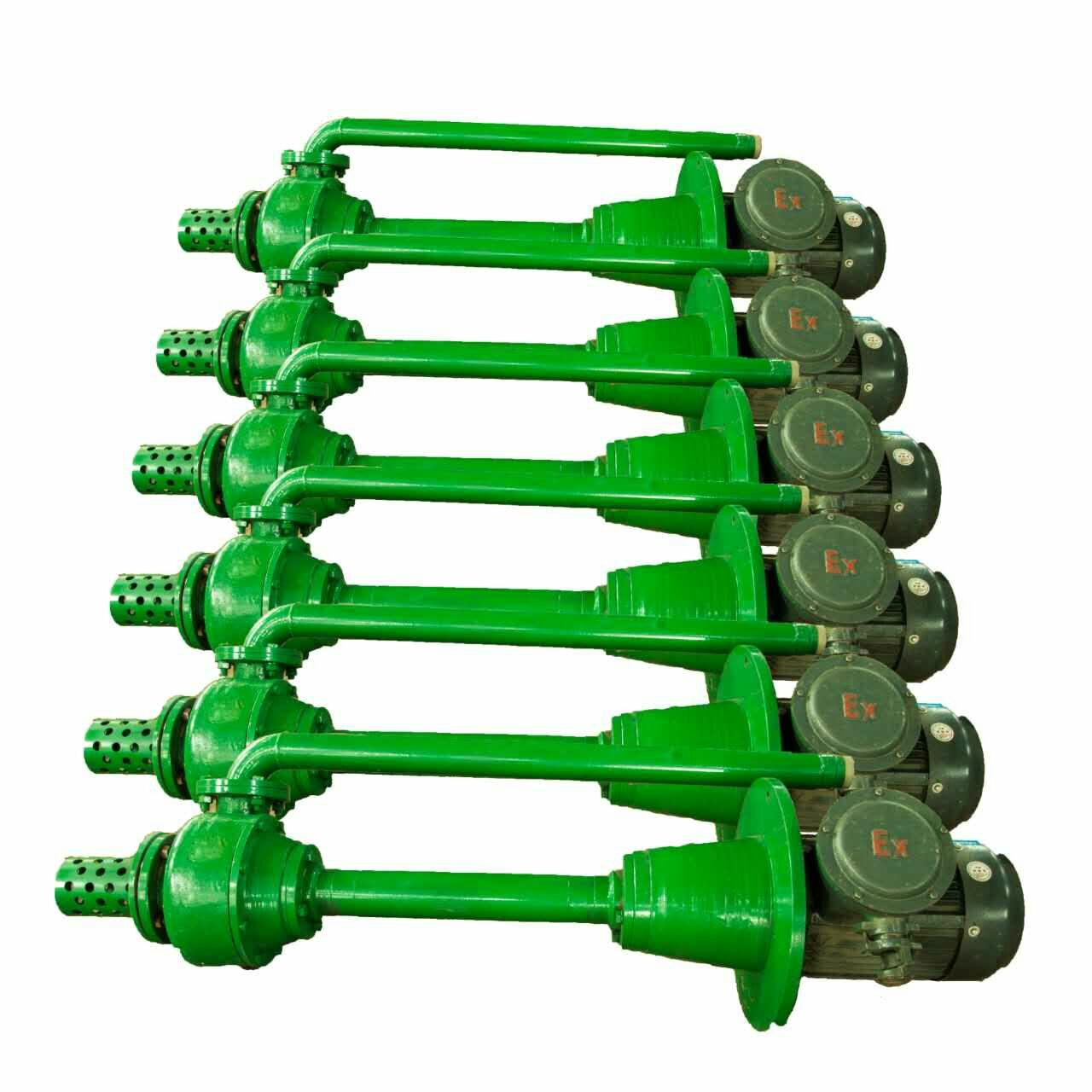

Name	Vertical and pump	Horizontal sand pump	Horizontal sand pump	Horizontal sand pump	Horizontal sand pump
Model No.	LSB-200	SB240	SB200	SB180	SB160
Rate of flow(m3/h)	200	240	200	180	160
Inlet Dia.(mm)	200	200	200	150	150
Output Dia.(mm)	150	150	150	125	125
Lift(m)	31	37	36	33	31
Rotary speed(rpm)	1480	1480	1480	1480	1480
Power(KW)	37/45	75	55	45	37
Efficiency	69	71	69	68	68
Weight(kg)	860	1030	960	840	810
Outside size(mm)	1000x650x2340	1940x610x1030	1870x610x950	1760x500x830	1730x500x830

Our service:

A) Pre-Sales Service: Free consultancy and design according to clients requirements, provide optimal proposal for individual clients.

B) After Sales Service: Guarantee & Commissioning: GSSY Provide 1 year guarantee and service for first time commissioning of system and training up clients engineer.

C) Emergency Service: According to the time of finishing formalities .GSSY Engineers will leave for the job site ASAP or provide long-distance service, and finish trouble shooting. GSSY also keeps to try make offices around the world.

D) Spare Parts: GSSY always have spare parts available in stock to ensure fast delivery.
